| Spindle Size | 5.9" | 149.86 mm |
| X-Horiz Tvl of Table | 118.11" | 3,000 mm |
| Y-Vert Tvl of Head | 118.11" | 3,000 mm |
| Power | 87 hp | 64.9 kW |
| RPM | 2,000 RPM | 2,000 RPM |
| Table-W | 63" | 1,600.2 mm |
| Table-L | 90.55" | 2,300 mm |
| Spindle Tvl. | 27.55" | 699.77 mm |
CAPACITY:
Spindle Diameter: 5.9"
Taper In Spindle: #50
Vertical Head Travel, Y: 118.11"
Table Cross Travel, X: 118.11"
Column Infeed Travel, W: 78.74"
Ram Travel, Z........................ 31.49": 31.49"
Spindle Travel, Z-1: 27.55"
Ram Cross Section: 12.79" x 12.79"
Facing Head Travel, U: 5.9"
Right Angle Heads: 5 Degrees
Rapids: 393 IPM
Pallet Size (3): 63" x 90.55"
Spindle Speeds: 12-2000 RPM
Pallet Capacity: 26,400 lbs.
Equipped With:

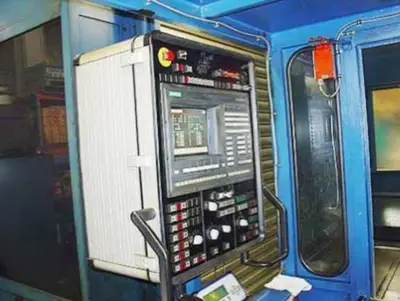

Siemens 880M CNC Control
(3) 63" x 90.55" Pallets "B Axis" Shuttle System
165-Station Automatic Tool Changer

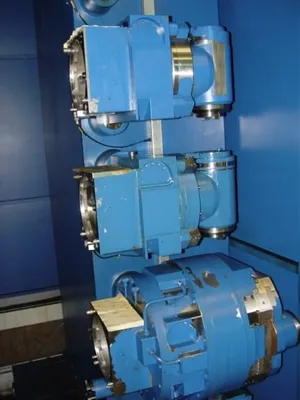

3-Station Automatic Head Changer
2-Right Angle Heads
1-Facing Head w/ 2 #50 Taper Offset Pockets
Thru Spindle Coolant, 435 PSI
Ball Screws With Independent Drives
Full Enclosure, Chip Conveyor & Coolant System
87 HP DC Spindle Drive
Features:
165-Station Automatic Tool Changer
3-Station Automatic Head Changer
3-Pallet "B-Axis" Shuttle System
Siemens 880M CNC Control
