| Spindle Size | 7.08" | 179.83 mm |
| X-Horiz Tvl of Col | 708.6" | 17,998 mm |
| Y-Vert Tvl of Head | 196.85" | 5,000 mm |
| Power | 115 hp | 85.8 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 157.48" | 4,000 mm |
| Table-L | 177.16" | 4,499.9 mm |
| Z-Spdl Tvl | 39.37" | 1,000 mm |
SPECIFICATIONS:
Spindle Diameter: 7.08"
Vertical Head Travel, Y-Axis: 196.85"
Column Travel, X-Axis: 708.6"
Ram Travel, Z-1 Axis: 49.21"
Spindle Travel, Z-2 Axis: 39.37"
Ram Cross Section: 16.53" x 16.53"
Total Axial Travel: 88.58"
Spindle Taper: ISO 50
Spindle Speeds: 6-2500 RPM

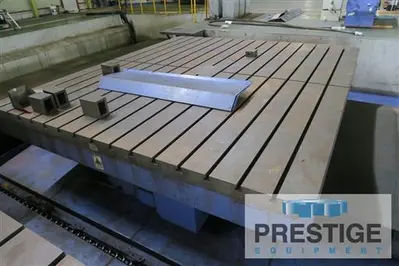

MITSUBISHI DIT-BH 40X45 B-AXIS INFEEDING ROTARY TABLE:
Table Size: 157.48" x 177.16"
Table Weight Capacity: 100 Ton
V-Axis Table Infeed: 118.11"
Table Rotation: B-Axis
Table Rotation Speed: 200 Deg/Minute
Rapid Travese Rotation: 540 Deg/Minute
Rotary Feed Rate: .1-200 Deg/Minute
Equipped With:

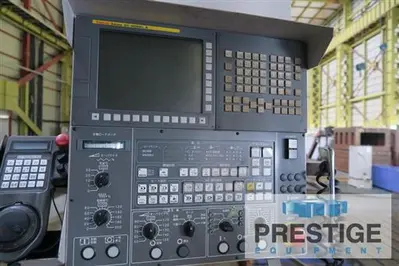

Fanuc 31iMB CNC Control
100-Station Automatic Tool Changer
Right Angle Milling Heads
157.48" x 177.16" In-feeding CNC Table
Floor Plates
Telescoping Steel Way Covers
Operator's Platform
115 HP Spindle Motor
Features:
Fanuc 31iMB CNC Control

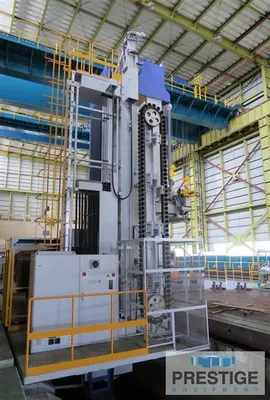

Ram Type Machine
100-Station Automatic Tool Changer
Infeeding Rotary Table
