USED 1997 TOSHIBA BF-130A
Overview
Specifications
| Spindle Size | 5.12" | 130.05 mm |
|---|---|---|
| X-Horiz Tvl of Col | 295.27" | 7,499.9 mm |
| Y-Vert Tvl of Head | 118.11" | 3,000 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 800 RPM | 800 RPM |
| Z-Spdl Tvl | 39.37" | 1,000 mm |
CAPACITY:

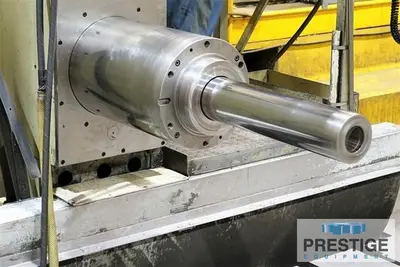

Spindle Diameter: 5.12"
Quill Diameter: 13.38"
Milling Sleeve Diameter: 8.8"
Vertical Headstock Travel, Y-Axis: 118.11"
Column Travel, X-Axis: 295.27"
Boring Spindle Travel, Z-Axis: 39.37"
Quill Travel, Z-2 Axis: 17.7"
Total Axial Travel, Spindle & Quill: 39.37"
Spindle Speed Ranges: 2
Spindle Speeds, Infinitely Variable: 5-800 RPM
Spindle Taper: #50
Feeds, Variable: 0.04 - 157 IPM
Rapid Traverse: 157 IPM
Spindle Motor: 30 HP / 40 HP
Approx. Machine Dimensions: 496" x 175" x 289"
Machine Only Weight: 69,500 Lbs
Equipped With:

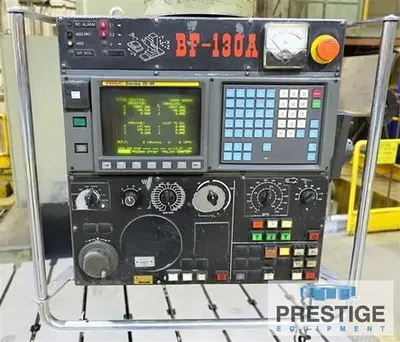

Fanuc 15M CNC Control

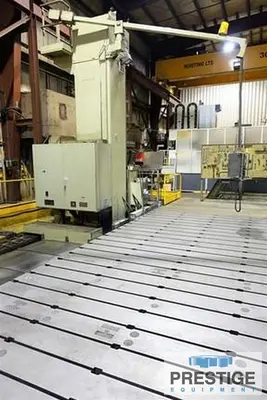

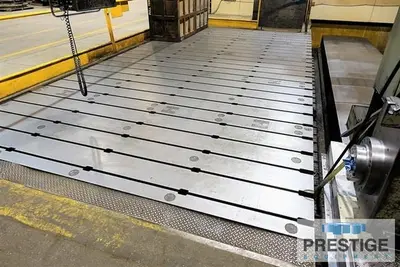

180" x 156" T-Slotted Floor Plate
(25) Tool Holders
Any Associated Spare Parts
Hardened Ways

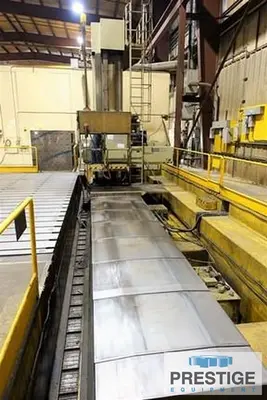

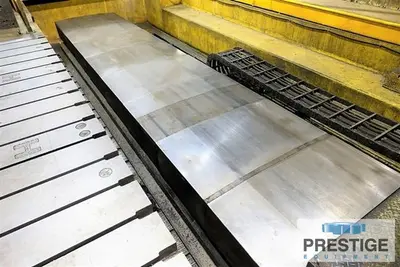

Telescoping Way Covers on Runway
Ball Screws & Independent Drives
40 HP Spindle Drive
