| Spindle Size | 5.9" | 149.86 mm |
| X-Horiz Tvl of Col | 393.37" | 9,991.6 mm |
| Y-Vert Tvl of Head | 137.79" | 3,499.9 mm |
| Power | 67 hp | 50 kW |
| RPM | 2,800 RPM | 2,800 RPM |
| Z-Spdl Tvl | 31.5" | 800.1 mm |
SPECIFICATIONS:
Spindle Diameter: 5.90"
Taper In Spindle: #50 ISO
Vertical Head Travel, Y-Axis: 137.79"
Column Infeed Travel, X-Axis: 393.37"
Spindle Travel, Z-Axis: 31.5"
Column Infeed, W-Axis: 29.5"
Spindle Speeds, Inf. Variable: 5-2800 RPM
Speed Ranges: 2
Feeds: X,Y,Z,W Axes: 0-236.22 IPM
Maximum Feed Power X,Z,W Axes: 25 KN
Maximum Feed Power Y Axis: 16-25 KN
Feed Rate X,Y,Z,W Axes: 0-236.22"
Rapid Feed Rate X,Y,Z,W Axes: 590.55 IPM
Main Cutting Force: 30 KN
Maximum Spindle Torque: 2.500 Nm
Spindle Motor: 50 HP/ 67 HP
Equipped With:

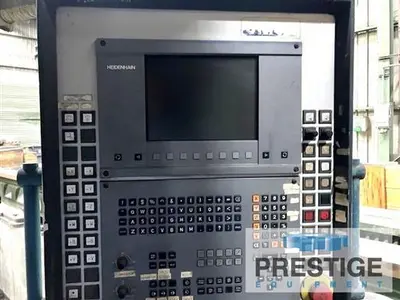

HEIDENHAIN iTNC 430 CNC Control
Remote Pendant
Coolant Thru Spindle 3 BAR
Elevating Operators Platform
Telescoping Steel Way Covers On Bedways
Steel Way Covers on Column
Full Length Chip Conveyor
NOTE:
Inspect Under Power!
Well Maintained Machine!
Features:
Heidenhain iTNC 430 CNC Control
40 Station Automatic Toolchanger
Infeeding Column Travel
