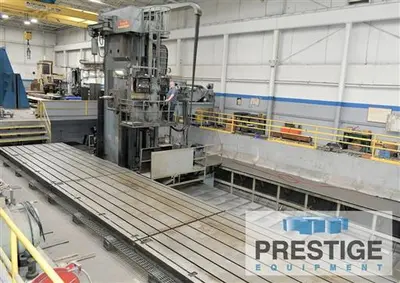

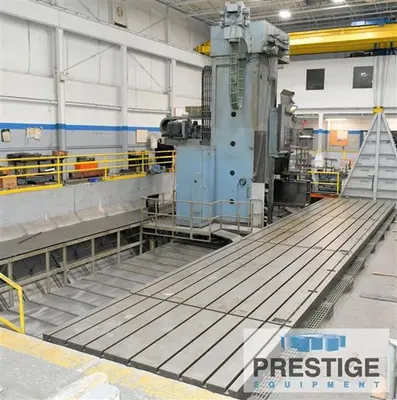

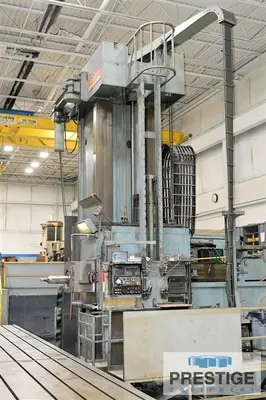

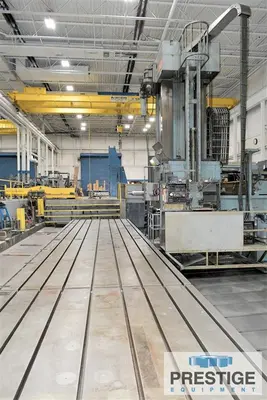

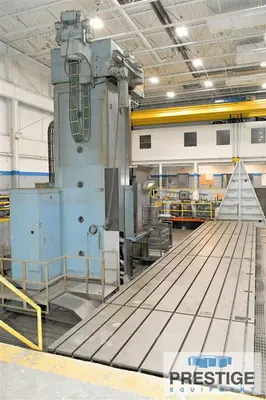

USED 1985 ASQUITH RMD 16/60
Overview
Specifications
| Spindle Size | 6.3" | 160.02 mm |
|---|---|---|
| X-Horiz Tvl of Col | 669.29" | 17,000 mm |
| Y-Vert Tvl of Head | 157.48" | 4,000 mm |
| Power | 85 hp | 63.4 kW |
| RPM | 810 RPM | 810 RPM |
| Table-W | 118.11" | 3,000 mm |
| Table-L | 590" | 14,986 mm |
| Z-Spdl Tvl | 98.42" | 2,499.9 mm |
SPECIFICATIONS:

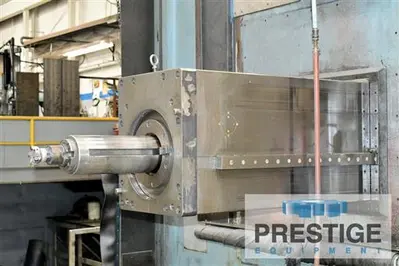

Spindle Diameter: 6.3"
Milling Sleeve Flange Diameter: 11.81"
Ram Dimensions: 19.68" X 23.62"
Spindle Taper: #50 ISO
X-Axis, Column Travel X-Axis: 669.29"
Y-Axis, Vertical Head Travel: 157.48
Z-Axis, Spindle Travel: 39.37"
W-Axis, Ram Travel: 59.05"
Combined Travel, Z & W Axis: 98.42"
Spindle Speeds: 4-Ranges
Spindle End Thrust: 5900 kgf
Spindle Speeds, Infinitely Variable: 2.8-810 RPM
Rapid Traverse, All Axes: 196.85 IPM
Feeds, All Axes, Infinitely Variable: 0.0393 to 118.11 IPM
Main Drive Motor: 85 HP
Machine Weight: 304,237 Lbs
Equipped With:

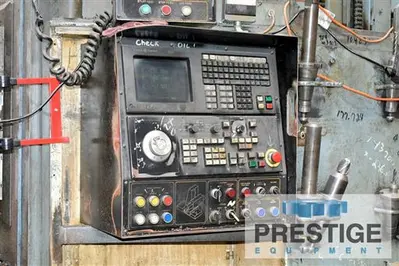

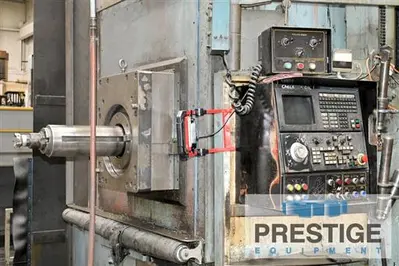

GE CNC Control

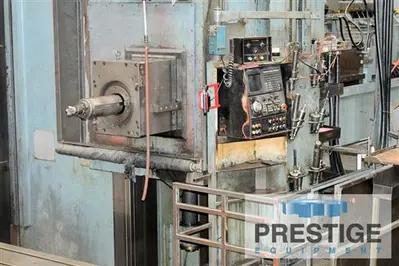

Power Adjustable Pendant Control
Power Tool Lock & Eject

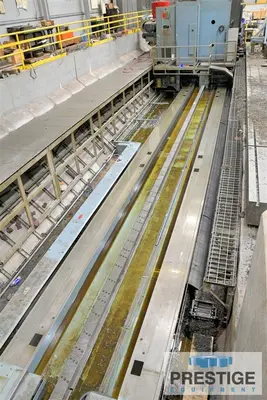

Telescoping Steel Way Covers On X-Axis
Chip Conveyor
85 HP Main Drive Motor
NOTES:
Inspect Under Power
Features:
GE CNC Control
Ram & Spindle Combined Travel/Reach
