| Spindle Size | 6.29" | 159.77 mm |
| X-Horiz Tvl of Col | 236.22" | 6,000 mm |
| Y-Vert Tvl of Head | 137.79" | 3,499.9 mm |
| RPM | 1,250 RPM | 1,250 RPM |
| Table-W | 78.74" | 2,000 mm |
| Table-L | 72.83" | 1,849.9 mm |
| Z-Spdl Tvl | 39.37" | 1,000 mm |
SPECIFICATIONS:
Spindle Diameter: 6.29"
Milling Quill Diameter: 9.44"
Ram Cross Section: 13.38" x 13.38"
Vertical Head Travel, Y: 137.79"
Horizontal Column Travel, X: 236.22"
Spindle Travel, Z1: 39.37"
Ram Travel, Z2: 27.55"
Spindle Speeds: 2-1250 RPM
Spindle Taper: #50

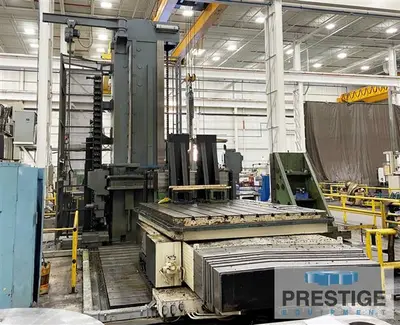

B-Axis Infeeding Rotary Table:
Table Size: 78.74" x 72.83"
Table Capacity: 35,000 lbs.
Table Indexing: .001 Degrees
Table Infeed, W-Axis.................... 49.21": 49.21"
Equipped With:

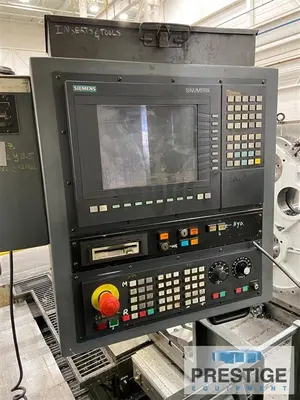

Siemens 840D CNC Control
60-Station Automatic Tool Changer
78.74" x 72.83" Infeeding B-Axis CNC Rotary Table
Note:
Inspect In Plant Under Power
Features:
Siemens 840D CNC Control
60-Station Automatic Tool Changer
78.74" x 72.83" Infeeding B-Axis CNC Rotary Table
