| Spindle Size | 6.3" | 160.02 mm |
| X-Horiz Tvl of Col | 629.92" | 16,000 mm |
| Y-Vert Tvl of Head | 123" | 3,124.2 mm |
| Power | 85 hp | 63.4 kW |
| RPM | 1,250 RPM | 1,250 RPM |
| Table-W | 98.42" | 2,499.9 mm |
| Table-L | 196.85" | 5,000 mm |
| Z-Spdl Tvl | 35.43" | 899.92 mm |
CAPACITIES:
Spindle Diameter: 6.3"
Taper In Spindle: ISO 50
X-Axis, Column Travel: 629.92"
Y-Axis, Vertical Travel Of Headstock: 123"
Z-Axis, Spindle Travel: 35.43"
W-Axis, Column Infeed: 34.05"
Total Axial Travel, Column & Spindle: 69.48"
Spindle Speeds, Infinitely Variable: 3.2-1250 RPM
Equipped With:

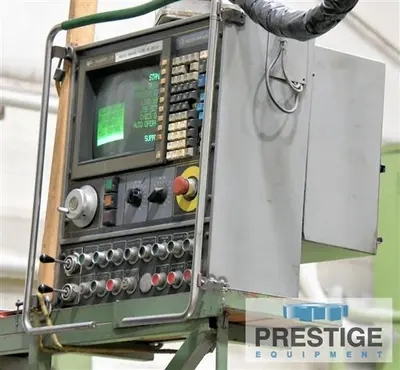

Allen Bradley 8400 CNC Control

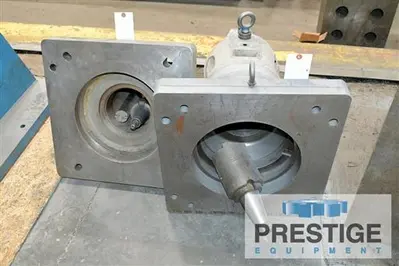

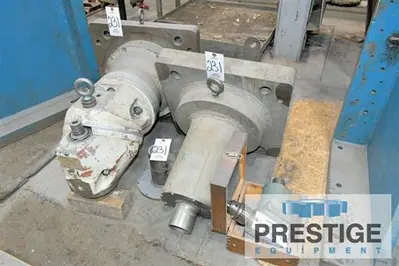

Universal Right Angle Head

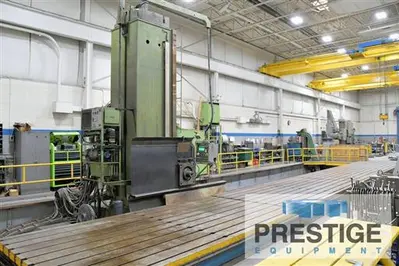

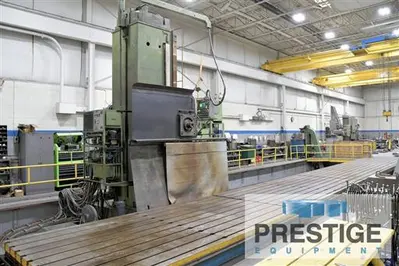

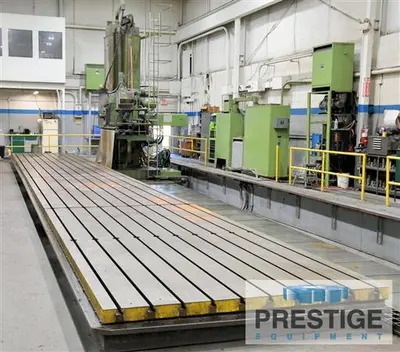

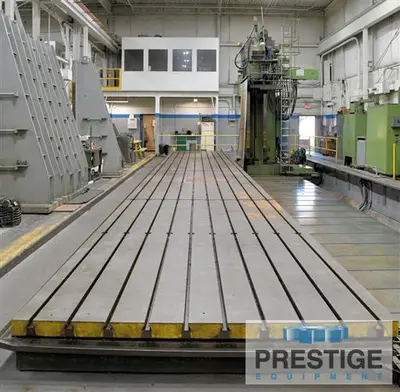

(3)98.42" x 196.85" x 15" T-Slotted Floor Plates
(2) 22" x 132" x 55" Angle Plates
(2) 22" x 127" x 55" Angle Plates

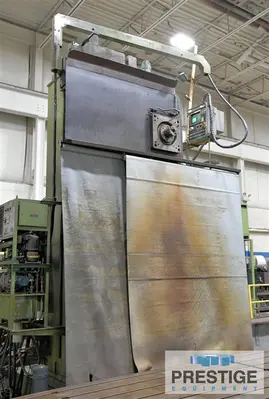

Telescoping Steel Way Covers on X-Axis
Facing Head
Threading
Hardened Ways

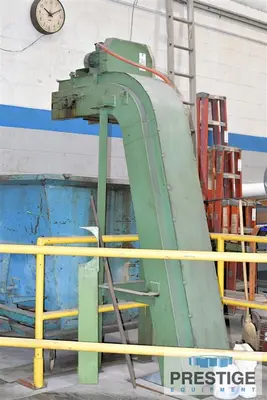

Chip Conveyor
85 HP Main Drive
NOTE:
Inspect Under Power In Plant
Features:
Infeeding Column
Universal Angle Head
T-Slotted Floor Plates
2 Sets of Angle Plates
