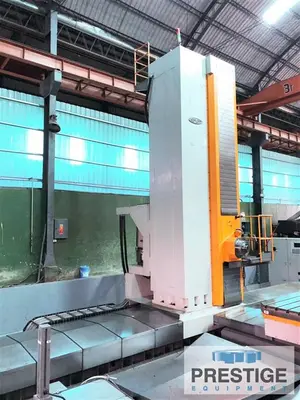

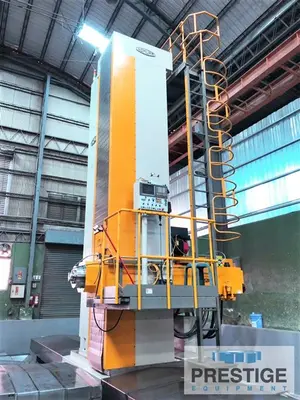

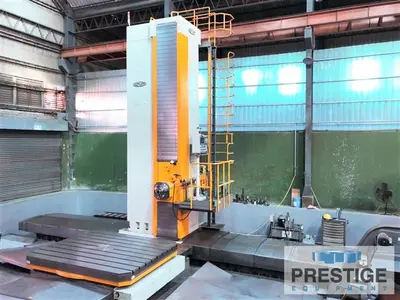

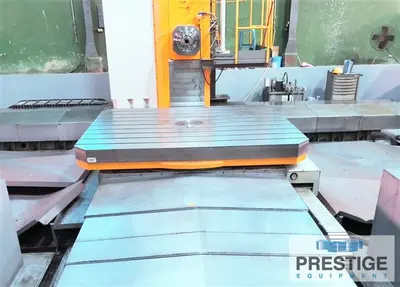

USED 2019 NOMURA HBN-135QF
Overview
Specifications
| Spindle Size | 5.31" | 134.87 mm |
|---|---|---|
| X-Horiz Tvl of Col | 244.09" | 6,199.9 mm |
| Y-Vert Tvl of Head | 157.48" | 4,000 mm |
| Power | 50 hp | 37.3 kW |
| Table-W | 78.74" | 2,000 mm |
| Table-L | 98.42" | 2,499.9 mm |
| Z-Spdl Tvl | 27.55" | 699.77 mm |
CAPACITY:

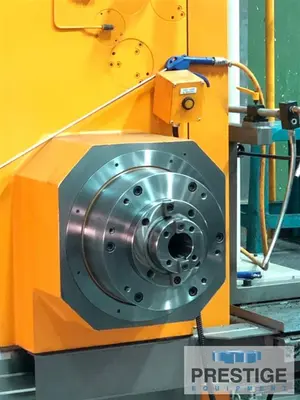

Spindle Diameter: 5.31"
Spindle Taper: #50 BT
Vertical Travel of Head, Y-Axis: 157.48"
Column Travel, X-Axis: 244.09"
Spindle Travel, Z-Axis: 27.55"
Ram Travel, W-Axis: 13.77"
Total Axial Travel, Ram & Spindle: 41.33"
Spindle Speeds:
Spindle Motor: 60 HP / 50 HP
Machine Footprint: 530" x 370" x 298"

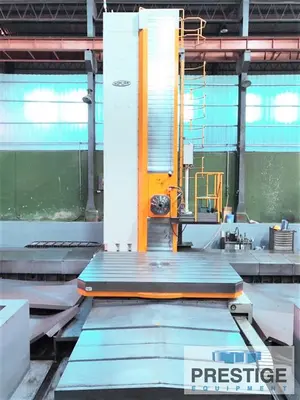

Rotary Table:
Table Size: 78.74" x 98.42"
Table Infeed: 78.74"
Table Indexing, B-Axis: .001 degrees
Table Capacity: 66,000 lbs
Equipped With:

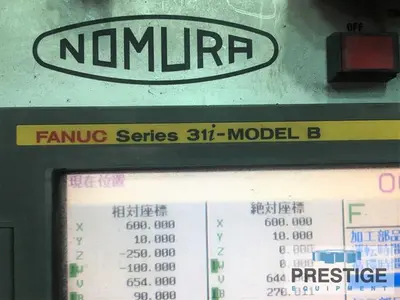

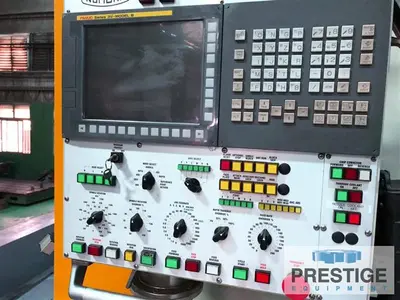

FANUC 31i-MB (10.4” LCD)CNC Control

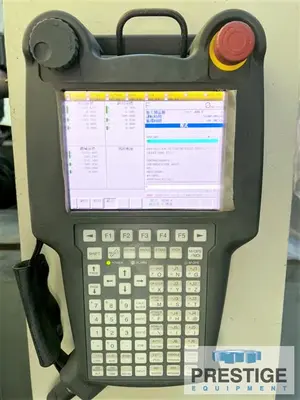

Portable Screen Control (iPendant)
Linear Scales
Coolant Through Spindle
Spindle Chiller
Chip Conveyer
Features:
FANUC 31i-MB (10.4” LCD)CNC Control
Portable Screen Control (iPendant)
Linear Scales
Coolant Through Spindle
Spindle Chiller
Chip Conveyer
