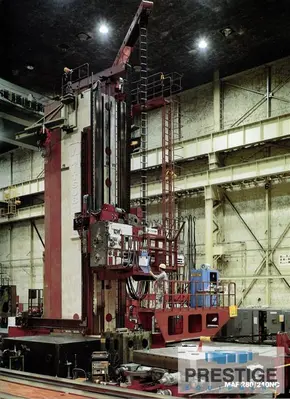

USED 2010 MITSUBISHI MAF 280/210 NC

SPECIFICATIONS:
Spindle Diameter: 8.27"
Column Travel, X-Axis: 492.12"
Headstock Vertical Travel, Y-Axis: 236.22"
Main Spindle Horiz Travel, Z-Axis: 51.18"
Ramstock, Travel, W-Axis: 39.37"
Combined Travel Z & W Axis: 90.45"
Auxillary Spindle, C-Axis: 19.68"
Ramstock, Travel, W-Axis: 39.37"
Combined Travel C & W Axis: 59.05"
Main Spindle Speeds, Z-Axis: 3-600 RPM
Auxillary Spindle Speeds, C-Axis: 75-2800 RPM
High Speed Shaft For Attachments: 7-2500 RPM
Front Plate Dimensions: 31.69" x 42.32"
Rapid Traverse X,Y,Z Axes: 196.85 IPM
Feed Rate: 0.04-157.48 IPM

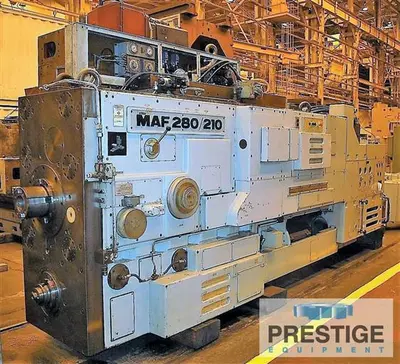

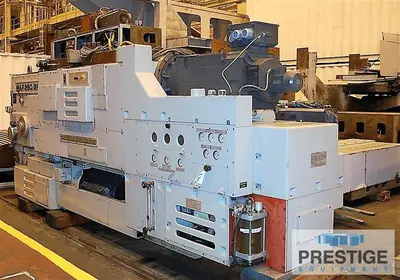

HEADSTOCK:

Main Spindle, Z-Axis:
Boring Spindle Diameter: 8.26"
Milling Spindle Diameter: 12.20"
Spindle Taper: #60 ANSI
Spindle Travel, Z-Axis: 51.18"
Speeds: 3-600 RPM
Spindle Motor: 100 HP/ 120 HP

Auxillary Spindle, C-Axis:
Spindle Diameter: 11.02"
Spindle Taper: #60 ANSI
Spindle Travel: 19.68"
Spindle Speeds: 75-2800 RPM
Maximum Thrust: 6,600 Lbs
Spindle Motor: 20 HP
Coolant Thru Spindle: Yes

DESCRIPTION OF AXES:
Column Travel: X-Axis
Spindle Vertical: Y-Axis
Main Spindle In & Out: Z-Axis
Auxilliary Spindle In & Out: C-Axis
Surfacing Slide: U-Axis
Headstock In & Out: W-Axis

Equipped With:
Siemens 840D Solution Line CNC Control (Retrofit 2010)
2800 RPM Auxillary Spindle
Through Spindle Coolant

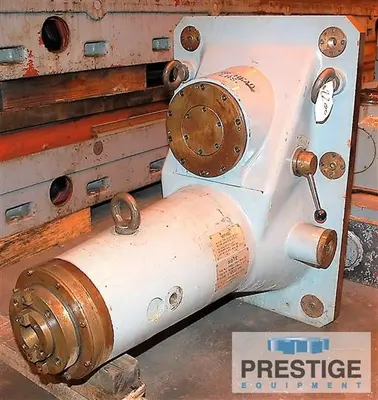

Long Reach Milling Attachment: #50 Taper, 1200 RPM

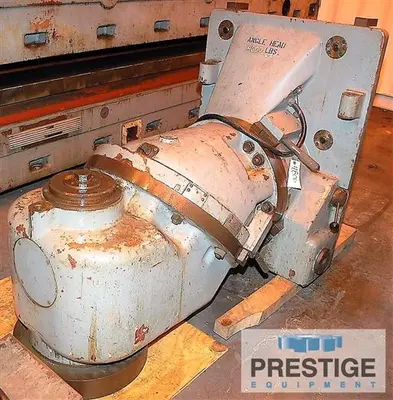

Universal Milling Head, Model UHM-40, 42" Reach

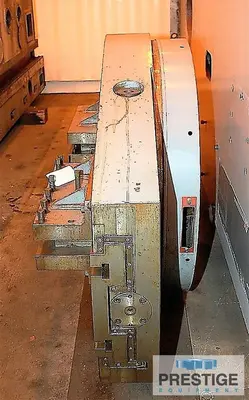

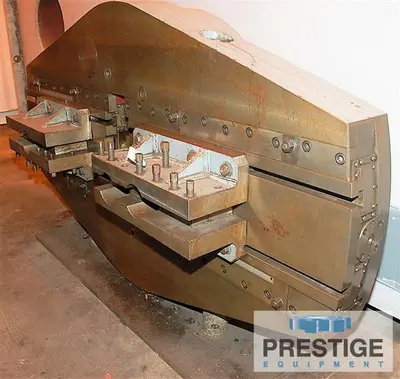

Facing Head, Surfacing Slide, Model SHM-2000 U-Axis
Full Length Chip Conveyor
New Spare Spindle & Bearings Available
2-Ton Jib Crane For Loading Attachments
100 HP / 120 HP Main Spindle Motor

NOTE:
Machine Was Built New in 1980's and Installed In USA Government Facility. Partially Rebuilt and Retrofit with New Siemens 840D CNC Controls in 2010.

Features:
Siemens 840D Solutionline CNC Control - Retrofit 2010
Universal Milling Head
Surface Facing Head, U-Axis
Long Reach Milling Attachment: #50 Taper, 1200 RPM
2800 RPM Auxiliary Spindle
Through Spindle Coolant
