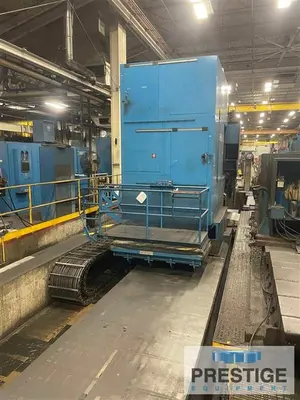

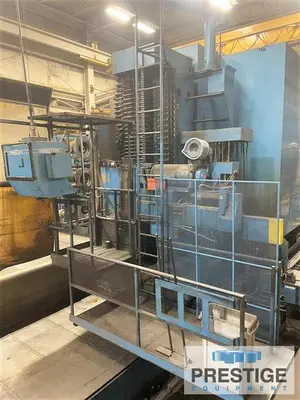

USED 1990 GIDDINGS & LEWIS MC60-FCX
Overview
Specifications
| Spindle Size | 6" | 152.4 mm |
|---|---|---|
| X-Horiz Tvl of Col | 432" | 10,973 mm |
| Y-Vert Tvl of Head | 84" | 2,133.6 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Z-Spdl Tvl | 36" | 914.4 mm |
SPECIFICATIONS:
Spindle Diameter: 6"
Spindle Taper: No.50 ANSI
X-Axis Column Travel: 432"
Y-Axis Vertical Head Travel: 79"/84"
Z-Axis Spindle Travel: 36"
W-Axis Column Infeed: 30"
Spindle Drive Motor: 40 HP
Spindle Speed Range, Inf.Variable: 12-2500 RPM
Feeds: 0.1 to 100 IPM
Rapid Traverse, X-Axis: 300 IPM
Rapid Traverse, Y-Axis: 500 IPM
Feed Rates, X, Y & Z Axes: 200 IPM
Electrics: 480V 3Ph 60 Cycle
Equipped With:
Giddings & Lewis 8000M-B CNC Control
Independent AC Electric Servo Feed Drives
Infinitely Variable Spindle Speeds
Lubricool Chiller Unit for Headstock Lube Oil

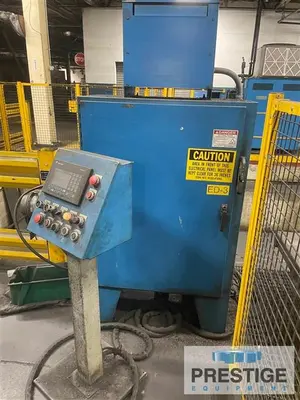

Adjustable Pendant Mounted CRT
Sissor Lift Platform
Thru-Spindle and Flood Coolant
Spindle Growth Compensation
Power Draw Bar, Collet Type

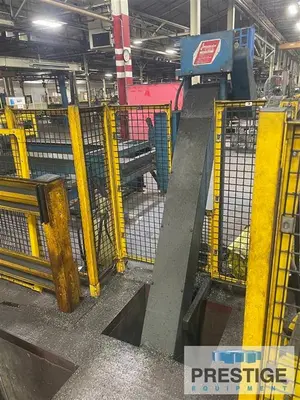

Chip Conveyor and Elevator
Hardened Ways
Chip Conveyor

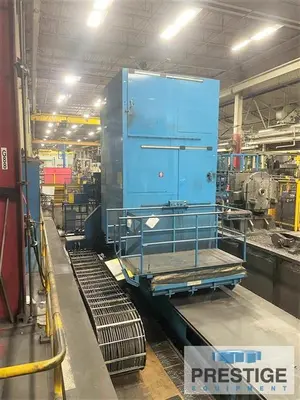

Operators Platform
Heavy Duty Meehanite Casting Construction
Non-Metallic Way Liners
Double Motor Pinion Drive on X-Axis Rack
Software for CH-8 Giddings & Lewis CNC Facing Head
Automatic Lubrication of All Machine Ways
40 HP Spindle Drive Motor
NOTE:
Complete Documentation Available
80-Station ATC & Right Angle Head Available at Additional Cost.
Features:
Giddings & Lewis 8000M-B CNC Control
Right Angle Head
Infeeding Column
