| Spindle Size | 5.9" | 149.86 mm |
| X-Horiz Tvl of Col | 712.59" | 18,100 mm |
| Y-Vert Tvl of Head | 137.79" | 3,499.9 mm |
| Power | 70 hp | 52.2 kW |
| RPM | 1,000 RPM | 1,000 RPM |
| Z-Spdl Tvl | 51.03" | 1,296.2 mm |
SPECIFICATIONS:
Spindle Diameter: 5.9"
Milling Spindle Diameter: 11.02"
Ram Cross Section: 11.81" x 11.81"
Spindle Taper: CAT 50
Spindle Speeds: 5.5-1000 RPM
Spindle Feed Range: 0.003-240 IPM
Rapid Traverse: 396 IPM
Spindle Motor: 70 HP/ 105 HP
TRAVELS:
X-Axis Vertical Head Travels: 712.59"
Y-Axis Column Travels: 137.79"
Z-Axis Spindle Travel................. 23.43": 23.43"
W-Axis Ram Travels: 27.6"
Z & W Axis Total Axial Travel......... 51.03": 51.03"
Equipped With:

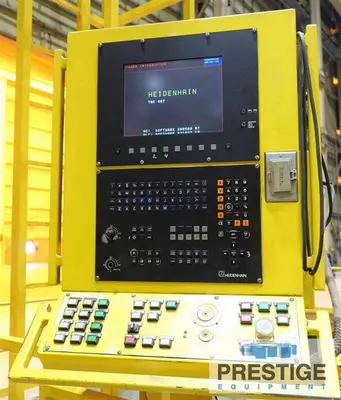

Heidenhain TNC 407 CNC Controls
Ram and Spindle Travel

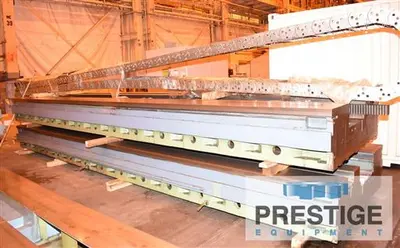

Sliding Way Covers On X-Axis Bed

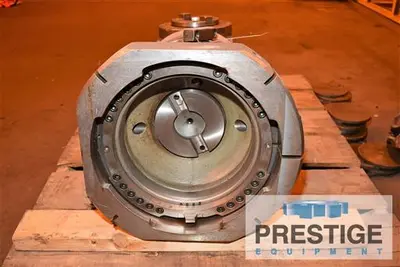

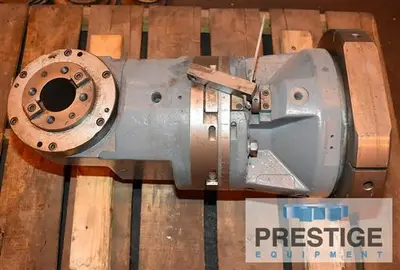

Right Angle Head With 1 Degree Manual Indexing

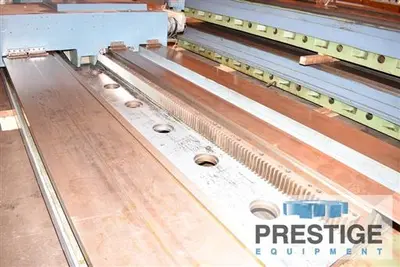

Hardened Ways
NOTES:
Must Be Moved. All Offers Considered!
Loaded to Your Trucks
Floor Plates In Photos are Not Available
Features:
Heidenhain TNC 407 CNC Control
Ram Type
Right Angle Head
