| Spindle Size | 5.12" | 130.05 mm |
| X-Horiz Tvl of Col | 220.5" | 5,600.7 mm |
| Y-Vert Tvl of Head | 119" | 3,022.6 mm |
| Power | 67 hp | 50 kW |
| RPM | 1,000 RPM | 1,000 RPM |
| Table-W | 86" | 2,184.4 mm |
| Table-L | 86" | 2,184.4 mm |
| Z-Spdl Tvl | 16.55" | 420.37 mm |
CAPACITIES:
Spindle Diameter: 5.12"
Spindle Taper: ISO 50
Vertical Travel of Head, Y-Axis: 119"
Horizontal Column Travel, X-Axis: 220.50"
Column Infeed, Z-Axis: 16.55"
Spindle Travel, W-Axis: 35.43"
Spindle Speeds, 4-Ranges: 5-1000 RPM
Rapid Traverse, X & Y Axes: 196.85 IPM
Rapid Traverse, Z & W Axes: 118.11 IPM
Feeds, All Axes: 98.42 IPM
Approximate Overall Machine Weight: 90,500 Lbs
Equipped With:
HEIDENHAIN TNC 355 CNC Control

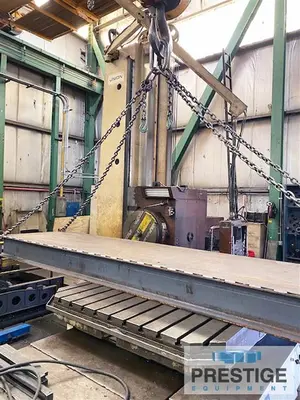

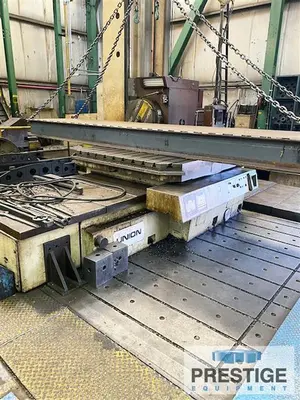

86" x 86" Tos Infeeding Table
31.5" CNC Programmable Facing Head

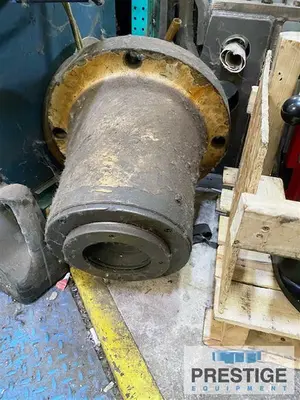

Spindle Support
Telescoping Steel Way Covers on X-Axis
Independant Servo Motor Drives
Hardened & Ground Ways
Steel Sliding Way Covers
67 HP Spindle Drive Motor
NOTE:

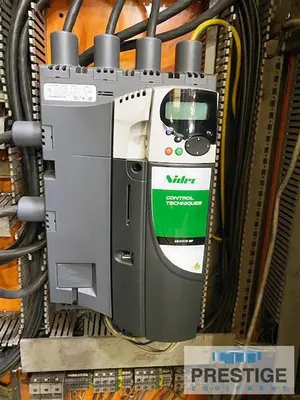

Inspect In Plant Under Power, NEW SPINDLE DRIVE 2020
Features:
Heidenhain TNC 355 CNC Control
Infeeding Column
Built-In CNC Programmable Facing Head
86" x 86" Tos Infeeding Table
