| Spindle Size | 6" | 152.4 mm |
| X-Horiz Tvl of Col | 551.18" | 14,000 mm |
| Y-Vert Tvl of Head | 157.48" | 4,000 mm |
| Power | 64.3 hp | 47.9 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 98.42" | 2,499.9 mm |
| Table-L | 98.42" | 2,499.9 mm |
| Z-Spdl Tvl | 35.43" | 899.92 mm |
SPECIFICATIONS:
Y-Axis Vertical Head Travel............ 157.48": 157.48"
X-Axis Horizontal Column Travels: 551.18"
W-Axis Ram Travel: 59.05"
Z-Axis Quill Travel: 35.43"
Combined Travel Ram & Quill: 94.48"
Quill Diameter: 6"
Spindle Taper: #50 ISO
Spindle Motor: 64.3 HP (48 KW)
Spindle Speeds: 0-2500 RPM

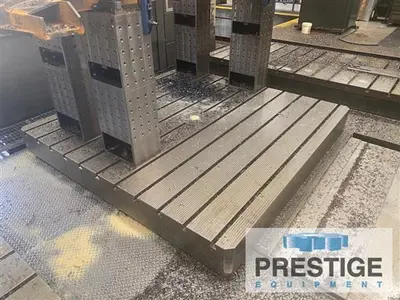

FPT MODEL TRT25 B-AXIS INFEEDING ROTARY TABLE:
B-Axis Table Rotation: 360,000 Positions
Table Size: 98.42" x 98.42"
W-Axis Table Infeed: 78.74"
Table Load Capacity: 55,000 lbs
Equipped With:

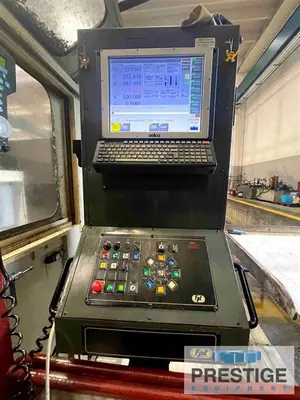

Heidenhain TNC 640 CNC Control, Prior to Shipment
40 Station Automatic Tool Changer

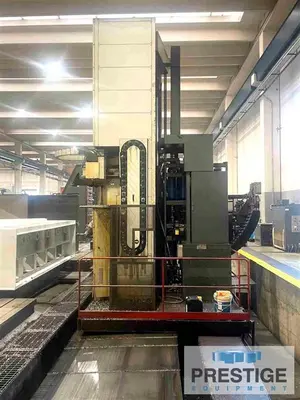

Operator's Platform
Attachment Pickup Station

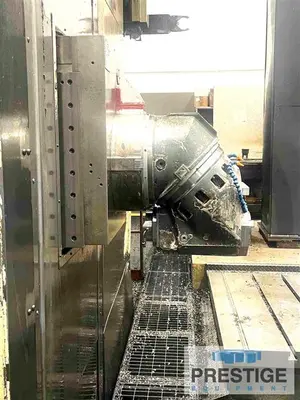

Bi-Rotary Universal Head
High Pressure Coolant
98.42" x 98.42" Infeeding 50 Ton Rotary Table
New Steel Way Covers on X-Axis
64 HP Spindle Drive Motor
Notes:
Inspect In Plant Under Power, New Machine on the Way In.
Features:
Heidenhain TNC 640i CNC Control
40-Station Automatic Tool Changer
Operator's Platform
Attachment Pickup Station
Bi-Rotary Universal Head
High Pressure Coolant
98.42" x 98.42" Infeeding 50 Ton Rotary Table
New Steel Way Covers on X-Axis
64 HP Spindle Drive Motor
