| Spindle Size | 6.3" | 160.02 mm |
| X-Horiz Tvl of Col | 393.74" | 10,001 mm |
| Y-Vert Tvl of Head | 149.6" | 3,799.8 mm |
| Power | 110 hp | 82 kW |
| Z-Spdl Tvl | 55.12" | 1,400 mm |
SPECIFICATIONS:
Spindle Diameter: 6.3"
Spindle Taper: #50 ISO
Vertical Headstock Travel, Y-Axis: 149.60"
Column Travel, X-Axis: 393.74"
Spindle Travel, Z-Axis: 27.55"
Ram Travel, Z2-Axis: 27.55"
Total Axial Travel, Ram + Spindle: 55.12"
Ram Cross Section: 13.38" x 13.38"
Spindle Speeds:
Rapid Traverse: 196.85 IPM
Feeds: 0.0393-196.85 IPR
Floor Space: 571" x 152"
Overall Height: 290"
Weight: 137,000 Lbs
Equipped With:
Heidenhain TNC 530 CNC Control

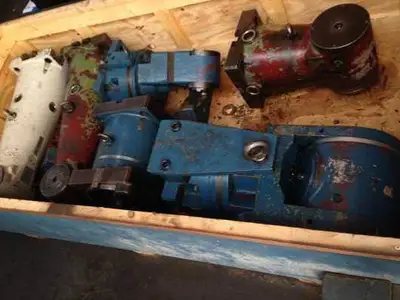

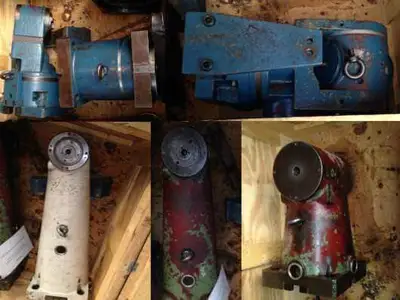

4-Assorted Angular Milling Heads
Hydrostatic Spindle Bearing
Coolant
Chip Conveyor
Oil Cooler
110 HP Spindle Motor
NOTE:
Complete Rebuild in 2004 By Dorries Scharman.
Rotary Table in Photos has been sold and no longer Available.
