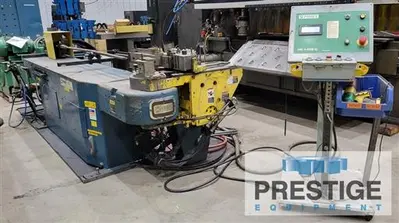

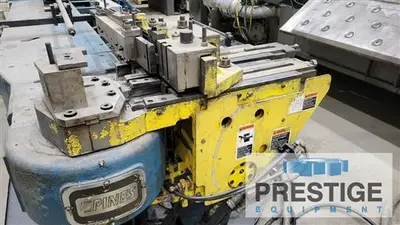

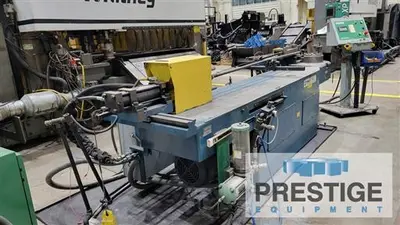

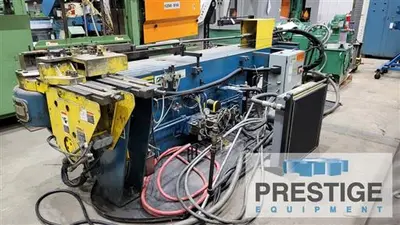

USED 2009 PINES #2

CAPACITY:
Maximum Bend Radius: 12"
Maximum Bend Angle: 180 Degrees
Maximum Tube Length Over Mandrel: 7'5"
Bend Arm Speed: 6 RPM
Operating Pressure: 2000 PSI
Motor: 10 H.P.
Round Tubing(Non Ferrous): 3" X .188 Wall
Round Tubing(Mild Steel): 3" X .109 Wall
Schedule 80 Pipe: 2"
Rectangular Tubing(Mild Steel): 1 1/2" X 3" X .148 Wall

Equipped With:

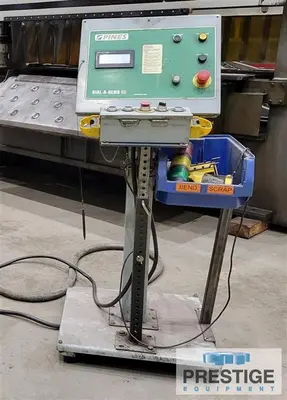

Dial-A-Bend-SC Control
Right-Hand Machine (Clockwise Rotation)
Hydraulic Mandrel Extractor

NOTE:
Inspect In Our Philadelphia PA Warehouse

Features:
Dial-A-Bend-SC Control
Right-Hand Machine (Clockwise Rotation)
Hydraulic Mandrel Extractor
