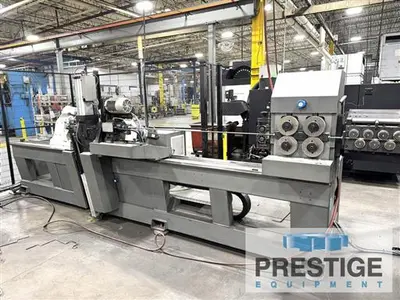

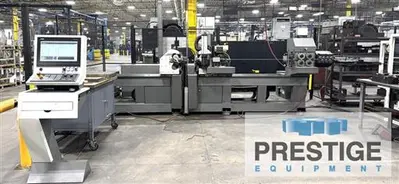

USED 2021 BLM ADIGE DH4010

CAPACITY:
Max Wire Bending capacity: 0.39" Dia
Min Wire Diameter: 0.078"
No Of Controlled Axis: 9
Min Internal Bending Radius: 0.019"
Min Internal Bending Radius: Infinite
Min - Max Bending Angle: 0.1 - 240 Deg
Max Distance between head centers: 60.43" (LH) + 60.63" (RH)
Wire Coil Capacity: 3,306 Lbs.

Equipped With:

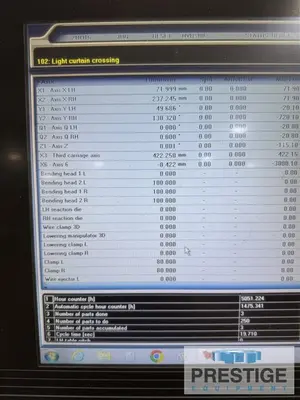

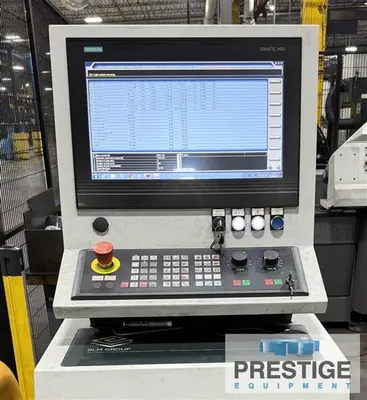

Siemens Simotion CNC Control With 19" Touch Panel with Visual Graphics Programming (VGP3D)

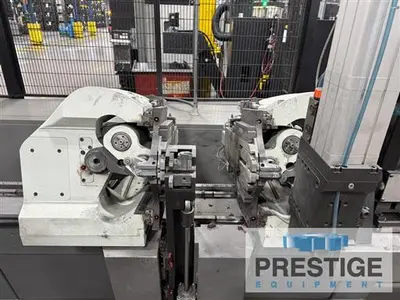

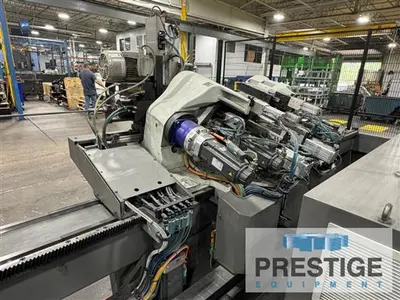

Twin Bending Heads with Independent Twin Turrets
Retractable 3D central handling unit. Used to clamp, rotate and eject part

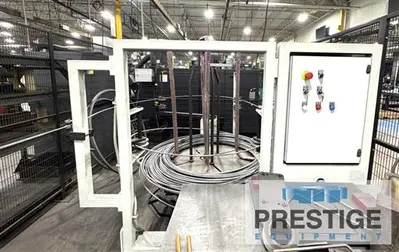

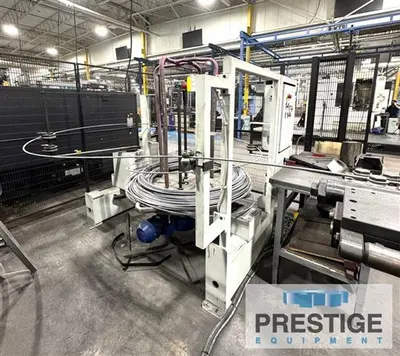

Motorized De-coiler

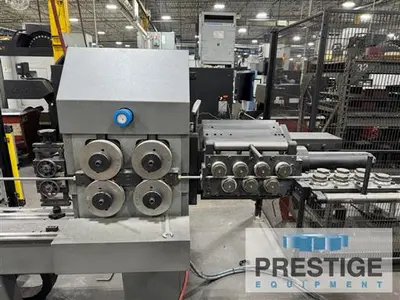

Six Position Revolving straightening system to allow for quick changeover
Four (4) roll feeding system with position encoder to feed from coil towards bending heads
Handler With Adjustable Clamping Force
End Machining Device
Cutting Unit
Chamfering Unit
Safety Fence

Features:
All Electric CNC Wire Straightening & Bending System
Siemens Simotion CNC Control With 19" Touch Panel
Twin Bending Heads with Independent Twin Turrets
Motorized De-coiler
Six Position Revolving straightening system
Four (4) roll feeding system
Handler With Adjustable Clamping Force
End Machining Device
Cutting Unit
Chamfering Unit
Safety Fence
