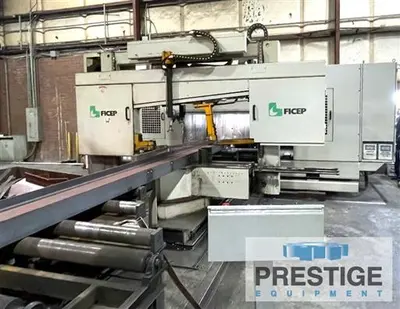

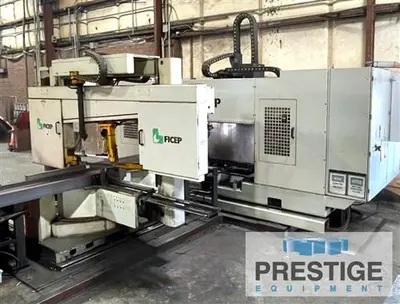

USED 2013 FICEP 1001 DDB

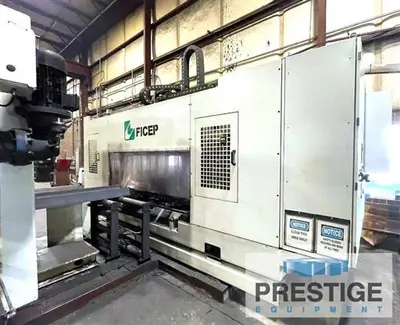

FICEP 1001 DDB DRILL:
No. Of Spindles, Rotating: 1
Beam Depth, Min - Max: 3-1/8" - 40"
Flange Height, Min - Max: 3/8" - 17-3/4"
Maximum Drill Diameter: 1-9/16"
Maximum Drill Thickness: 4"
Spindle Motor: 22 HP
Spindle Speed: 180 - 2500 RPM

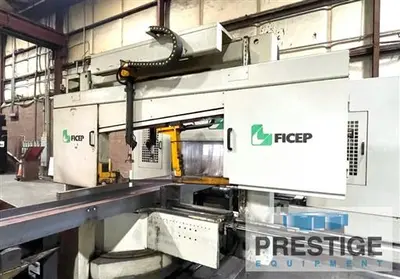

FICEP K100 BAND SAW:
Max. Sawing Capacity at 90°: 40" x 17-3/4"
Sawing Capacity at 45°: 24-3/8" x 17-3/4""
Sawing Capacity at 60°: 13-3/4" x 13-3/4"
Blade Speed: 196 - 557 FPM
Motor Power: 12 HP

Equipped With:

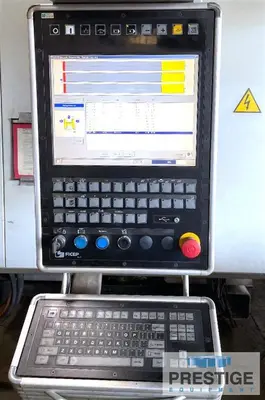

Ficep Pegaso CNC Control
(1) Monospindle 180 Degree Rotary Drilling Spindle For Drilling On 3-Sides
(6) Position Tool Changer
Scribing On 3-Sides
Carriage Feed

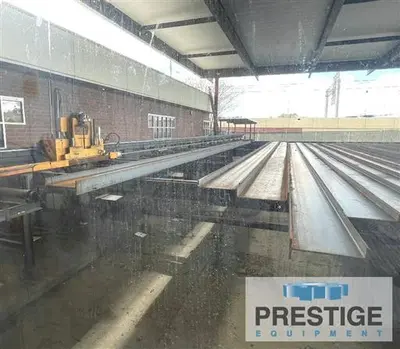

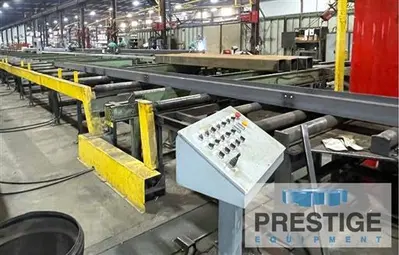

65' Powered Infeed Conveyor With Transfers

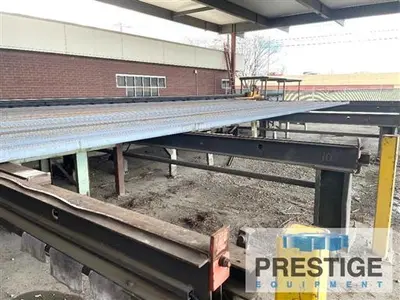

40' Outfeed Powered Conveyor

NOTE:
The line has been decommissioned & is in Storage

Features:
Ficep Pegaso CNC Control
(1) Monospindle 180 Degree Rotary Drilling Spindle For Drilling On 3-Sides
(6) Position Tool Changer
Scribing
Carriage Feed
65' Powered Infeed Conveyor With Transfers
40' Outfeed Powered Conveyor
