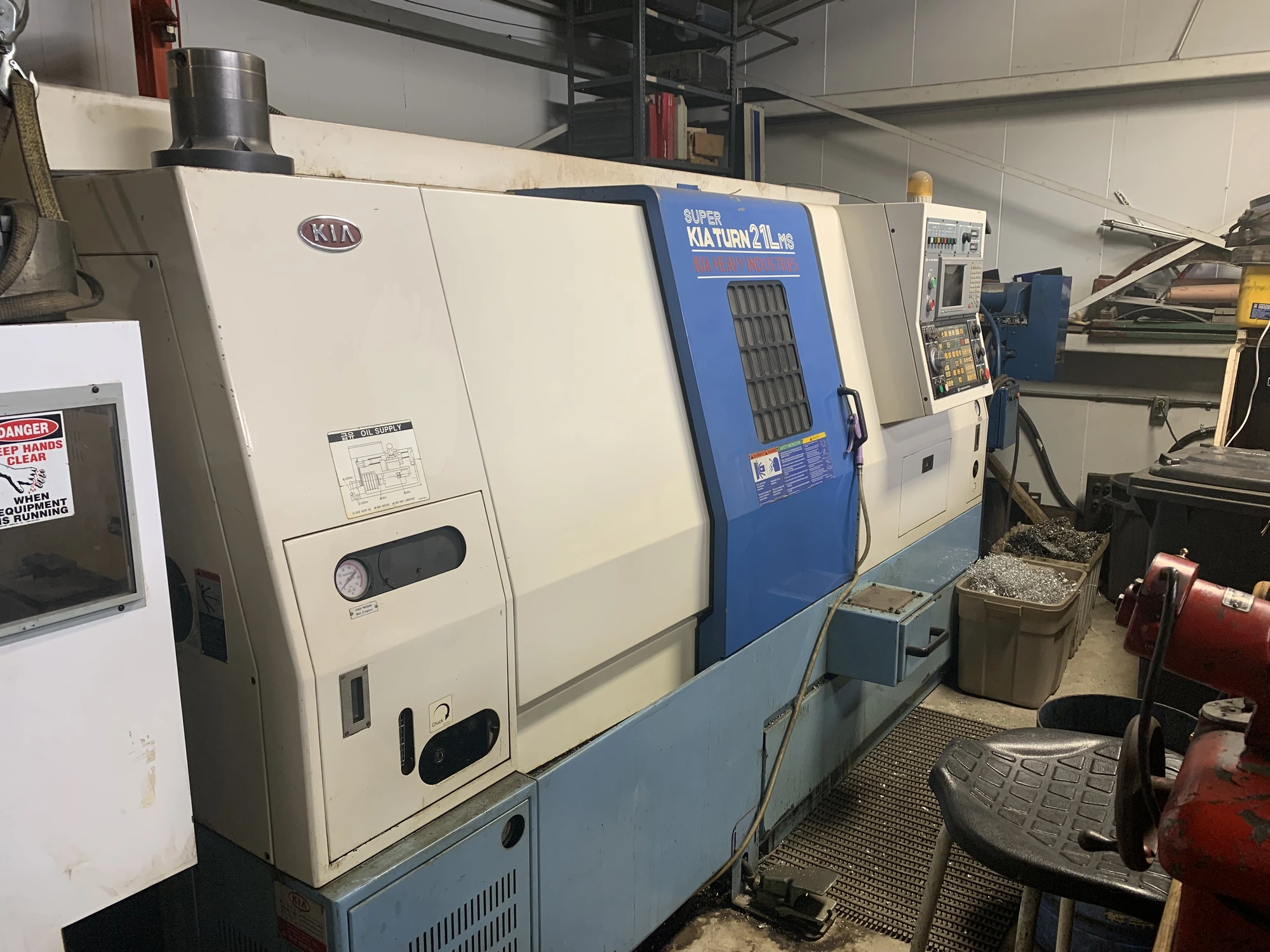

USED 2004 KIA SKT-21LMS
Overview
2004 KIA SKT-21LMS CNC Turning Center W/ Live Tooling and Sub-Spindle. Machine is in good shape and can be viewed under power. Machine comes with: live tooling, sub-spindle, CNC Enhancements barfeeder, 3J collet chuck, S26 collet chuck, Kitagawa hydraulic chuck, VDI Turret and 2 live toolholders.
Specs
Specification SKT-21LMS
Swing over bed / cross slide 21.7" / 13.8"
Maximum turning diameter 10.0"
Maximum turning length 20.9"
Main chuck / bar capacity 8" / 2.56"
Main spindle 4,000 rpm; approximately 20 hp short duty, 15 hp continuous
Subspindle chuck / bar capacity 5" / 1.3"
Subspindle speed 6,000 rpm
Turret 12 stations, VDI 40 live tooling
Live-tool speed 4,000 rpm
Travels, X / Z / subspindle 8.3" / 21.7" / 29.5"
Machine weight Approximately 9,700 lb
Floor space Approximately 120" × 65"
Equipped With
Live Tooling
Sub-Spindle
CNC Enhancements Barfeeder
3J Collet Chuck
S26 Collet Chuck
Kitagawa Hydraulic Chuck
VDI Turret
2 Live Toolholders
