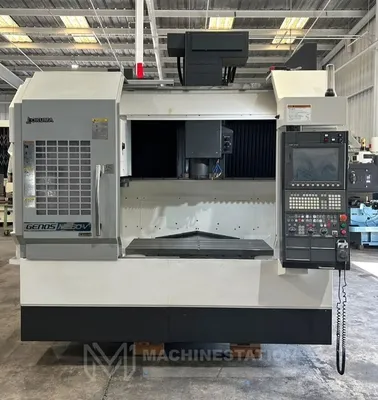

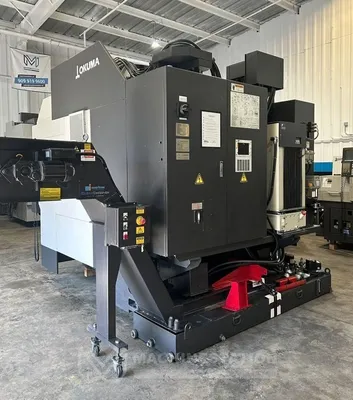

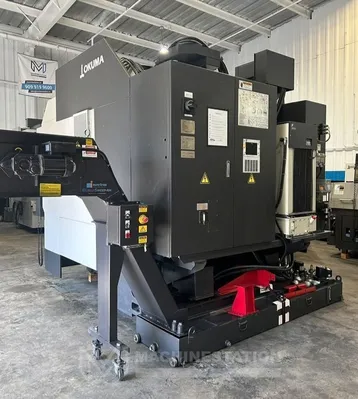

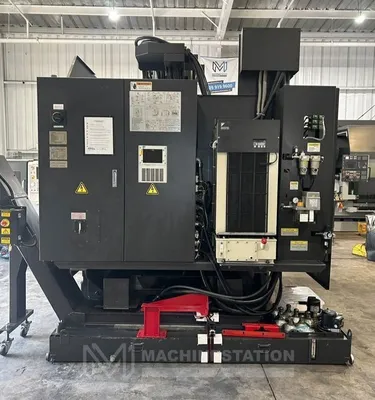

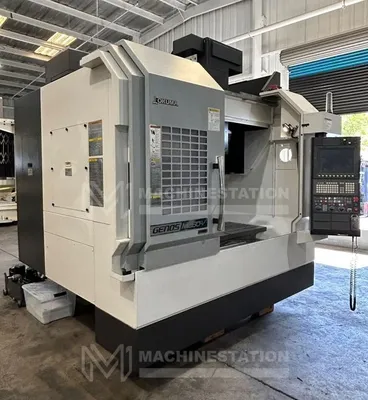

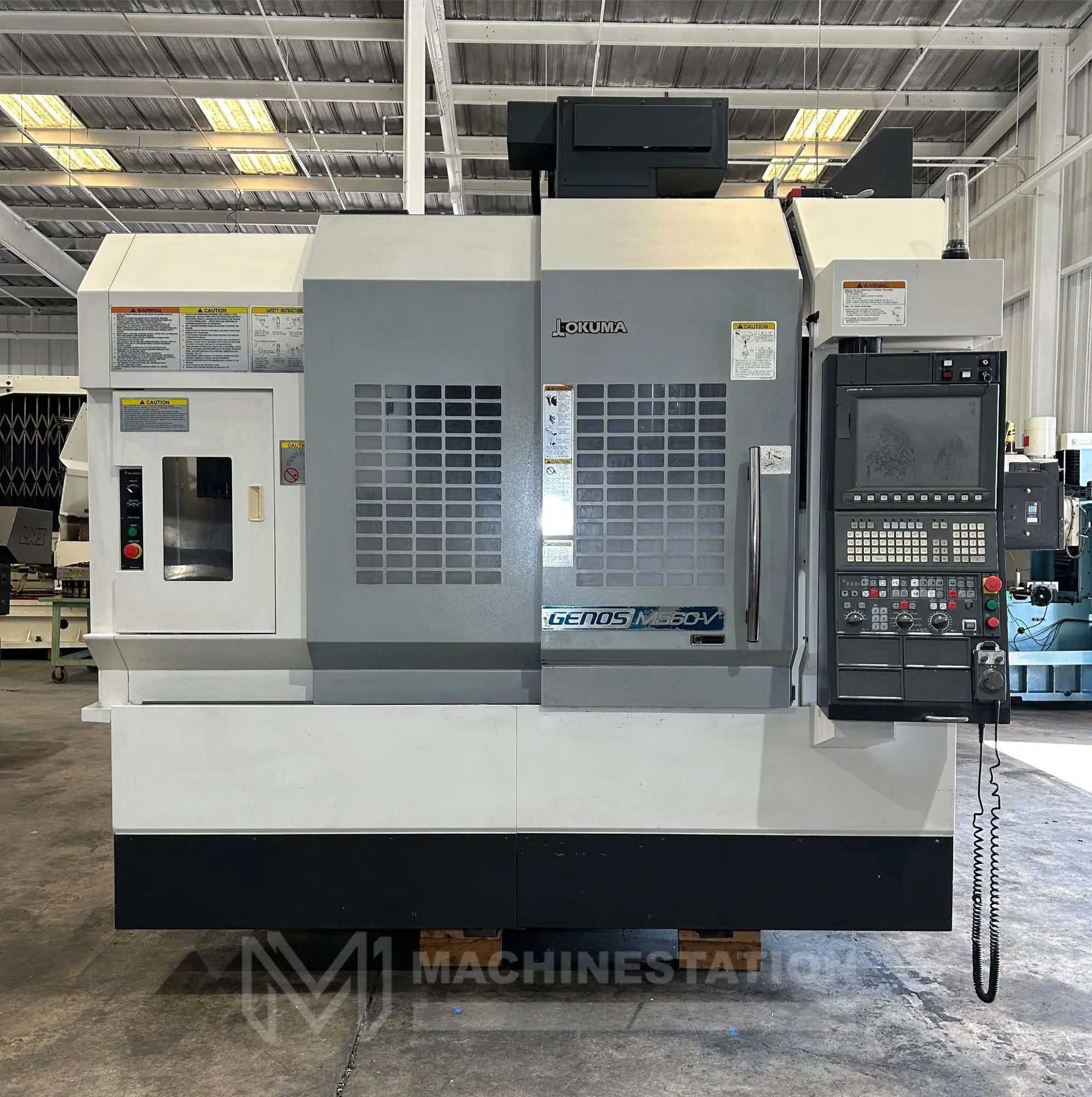

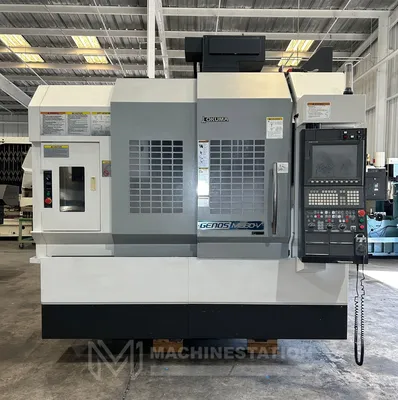

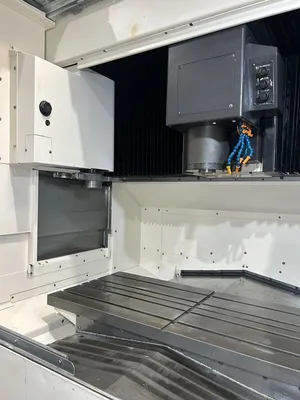

USED 2016 OKUMA GENOS M560-V

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

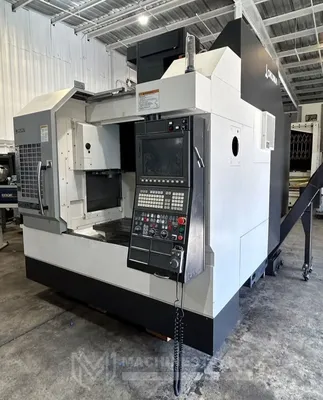

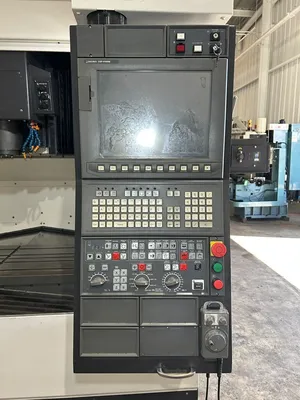

Okuma OSP-P300M CNC Control
CAT-40 Taper Spindle
Automatic Lubrication Unit

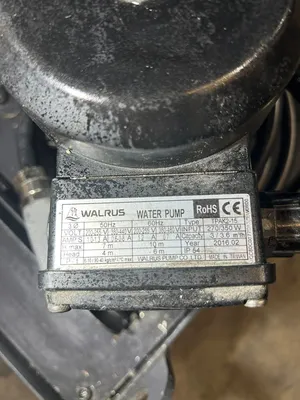

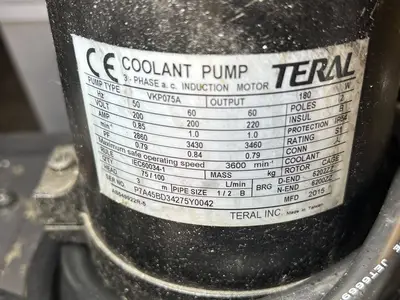

Coolant Tank

Travels:
X-Axis Travel: 41.34 inch
Y-Axis Travel: 22.05 inch
Z-Axis Travel: 18.11 inch
X & Y Axis Rapid Traverse Rates: 1,575 IPM
Z-Axis Rapid Traverse Rate: 1,260 IPM
Cutting Feed Rate: 1,260 IPM
Spindle Nose to Table (Min.-Max.): 5.91 inch – 24.02 inch

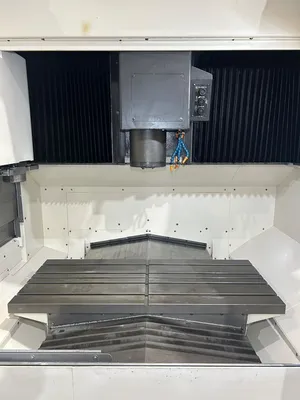

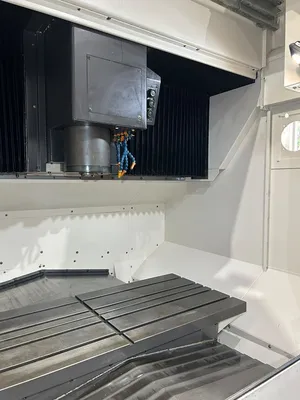

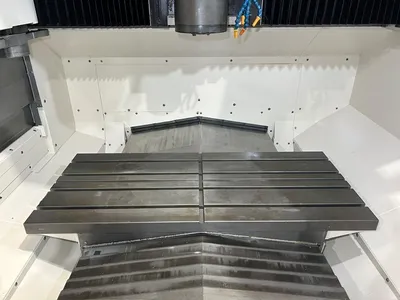

Table:
Length: 51.18 inch
Width: 22.05 inch
Maximum Weight on Table: 1,980 lbs

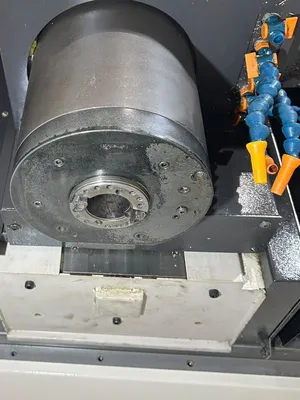

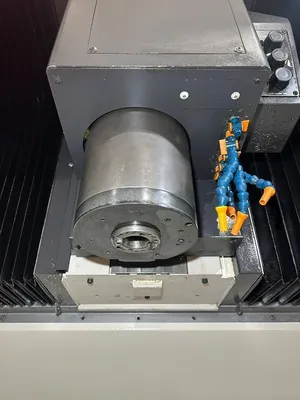

Spindle:
Taper Size: CAT-40
Speed Range: 15,000 RPM
Spindle Power: 30 HP

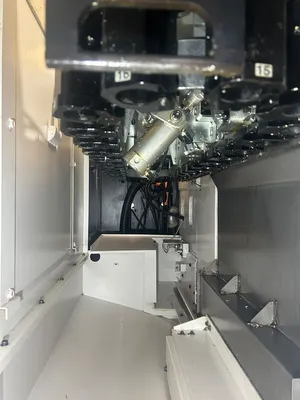

Automatic Tool Changer:
Capacity: 32-Station Side Mounted
Maximum Tool Weight: 18 lbs
Maximum Tool Length: 11.81 inch
Maximum Tool Diameter: 3.54 inch

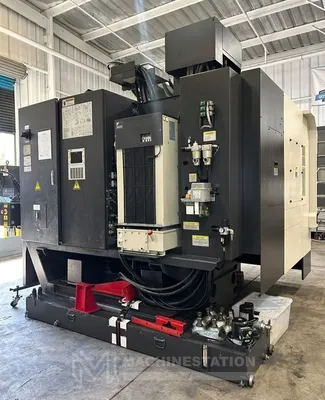

General:
Air Required: 90 psi, 4 scfm

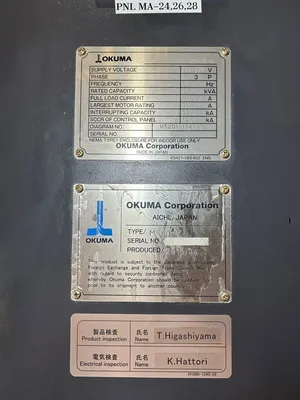

Power: 220V / 480V / 38.7 kVA / 3-Phase
Overall Dimensions: 100 inch × 123 inch × 108 inch High Approx.
Machine Weight: 16,500 lbs
