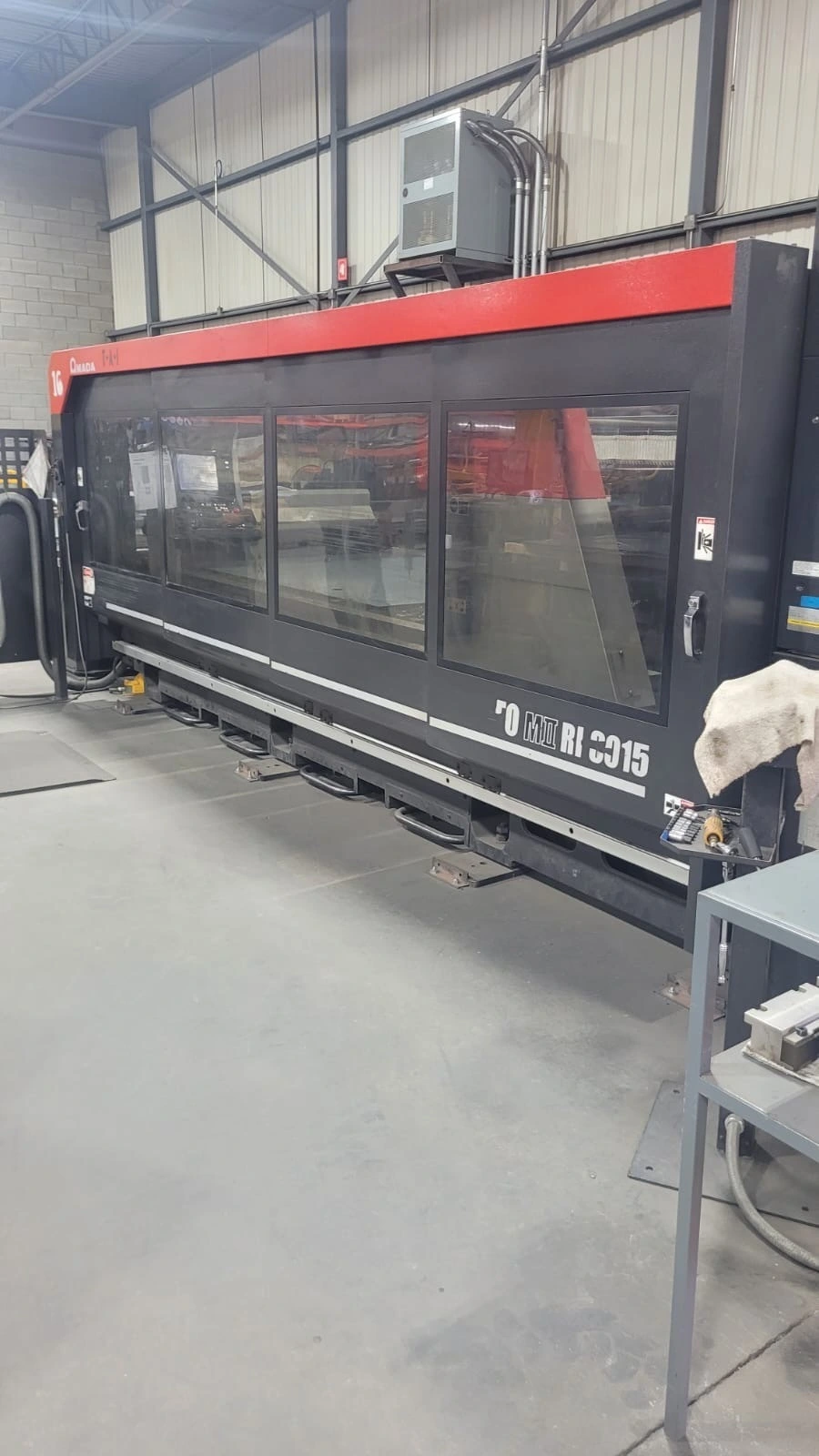

USED 2013 AMADA FO MII RI 3015

Amada FO MII RI 3015 4000 Watt CNC Tube Laser (2013)

Motion and Working Range
X-Axis Travel (Movement Range): 3070 mm (120.87")
Y-Axis Travel (Movement Range): 1550 mm (61.02")
Z-Axis Travel (Movement Range): 200 mm (7.87")
Drive Method: X-axis uses a Rack & Pinion system; Y and Z axes utilize Ball Screws.
Rapid Feed Rate (X / Y / Z): 80 / 80 / 60 meters per minute (3,150 inches per minute for X/Y).Positioning Repeatability: ±0.01 mm (±0.0002").
Laser Source and Performance
Laser Oscillator: Fanuc AF4000i-B / AF4000i-C CO2 Laser.
Laser Power: 4,000 Watts.
Laser Wavelength: 10.6 µm.
Maximum Flat Sheet Thickness Capacities:
Mild Steel (Oxygen assist): 22 mm (7/8")
Stainless Steel (High-pressure Nitrogen): 12 mm to 15 mm (1/2")
Aluminum: 10 mm (3/8")
Rotary Index (Tube Laser)
Specifications
The self-centering chuck is designed to support tubing near the cutting zone to eliminate vibrations and maintain strict tolerances.
Round Tubing Diameter: Ø 19 mm – 220 mm (0.75" – 8.66").
Square Tubing Size: 19 mm – 150 mm (0.75" – 6").
Rectangle Tubing Size: Maximum diagonal envelope up to 150 mm (Typical configuration maxes out around 3.54" x 3.54").C-Channel Tubing: 19 mm – 150 mm (8.66" max diagonal).Angle Iron/Sections: 19 mm – 90 mm.
Maximum Pipe Length: 6,000 mm (236.2" / 19.6 ft) supported via a manual/automatic repositioning routine.
Maximum Material Weight (Tube): 200 kg (441 lbs).
Rotation Speed: 100 RPM.
CNC Controller and Control Features
CNC Control Unit: Amada AMNC-3i / AMNC-PC multimedia network control.
Interface Display: 21.5" touch screen running on a Windows environment.
Assist Gas System: Automatic gas selection and NC gas pressure control
