| X-Axis | 124.01" | 3,149.9 mm |
| Y-Axis | 51.96" | 1,319.8 mm |
| Z-Axis | 28.03" | 711.96 mm |
| Power | 39 hp | 29.1 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 60 | 60 |
| Taper | HSK-80A | HSK-80A |
| Pallet-W | 48.03" | 1,220 mm |
| Pallet-L | 120" | 3,048 mm |
| # Axis | 5 | 5 |
SPECIFICATIONS:
X-Axis Travel: 124.01"
Y-Axis Travel: 51.96"
Z-Axis Travel: 28.03"
A-Axis Spindle Head Tilt: +/-90 Degrees
C-Axis Spindle Head Rotation: +/-270 Degrees
Spindle Tilt Center To Spindle End: 11.81"
SPINDLE:
Spindle Speeds: 2000-20,000 RPM
Spindle Nose: HSK-80A
Spindle Drive Motor: 39 HP
TABLE:

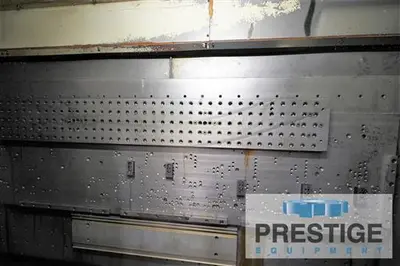

Number Of Pallets: 2
Pallet Size: 120" x 48.03"
Permissable Workpiece Weight: 8800 Lbs.
Table Positioning, Setup: Horizontal
Table Positioning, Machining: Vertical 90 Degrees
FEED RATES:
Rapid Traverse, X & Z Axes: 944.88 IPM
Rapid Traverse, Y-Axis: 787.4 IPM
Rapid Traverse, A & C Axes: 0-1800 DPM
Cutting Feedrate, XYZ Axes: 0.03"-787.4 IPM
Cutting Feedrate, A & C Axes: 0-1800 DPM
Table Top to Horizontal Spindle: 28.03"
Equipped With:

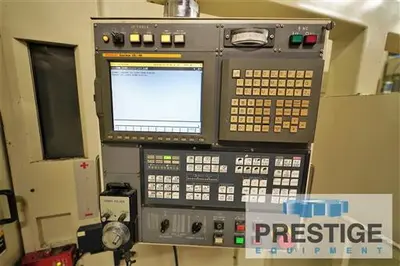

FANUC 15iMA 5-Axis CNC Control

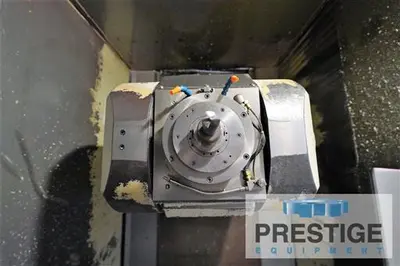

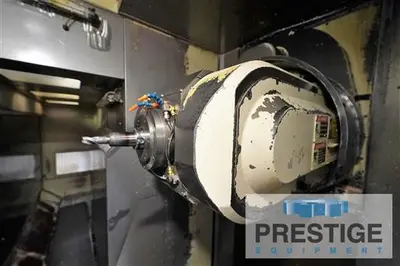

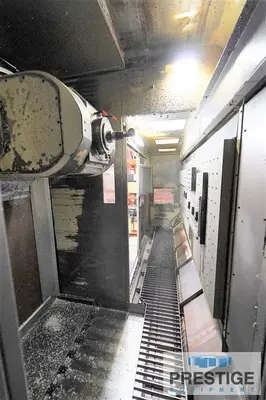

2-Axis Swivel Head
(2) 120" x 48.05" Pallets
2-Station Automatic Pallet Changer
60-Position Automatic Tool Changer
Coolant Through Spindle
Brand New Spare Spindle Head
Full Splash Enclosure

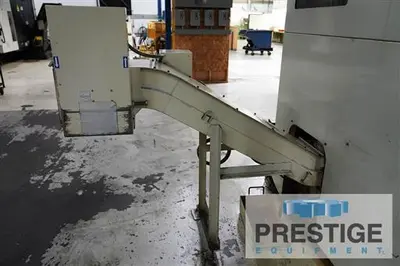

Chip Conveyor
Tooling
Features:
FANUC 15iMA 5-Axis CNC Control
2-Axis Swivel Head
(2) 120" x 48.05" Pallets
2-Station Automatic Pallet Changer
60-Position ATC
Coolant Through Spindle
Brand New Spare Spindle Head
