USED 2007 HAAS VF-3B
Overview

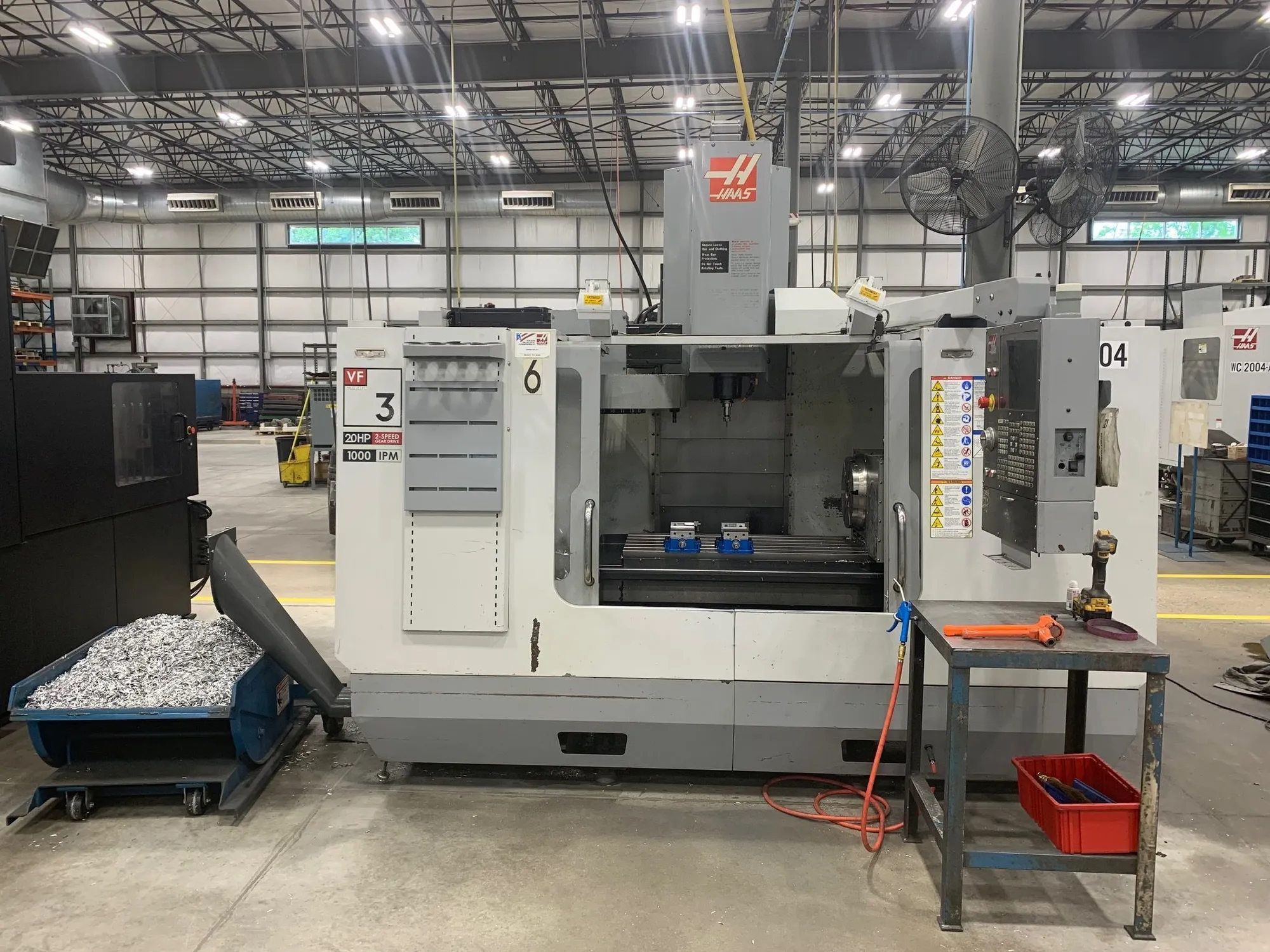

Haas VF-3B Vertical Machining Center, New in 2007
Specs
General Specifications:
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate (X, Y, Z): 1,000 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Torque: 90 ft-lbf
Cutting: 650 ipm
Thrust X: 2550 lbf
Thrust Y: 2550 lbf
Thrust Z: 4200 lbf
Tool Diameter: 3.5"
Tool Weight: 12 lbs
Tool-to-Tool: 4.2 s
Chip-to-Chip: 4.5 s
Dimensions: 131" x 92" x 101"
Weight: 11,720 LBS
Equipped With
Haas CNC Control
HRT-210 4th Axis
Rigid Tapping
WIPS
*Kurt vices and tooling not included*
This machine is under power, runs every day, has standard 1MB of memory, has new Tool Changer Carousel, Arm, Proxy Switches, Sensors and the Front Y-Axis way cover, holds accuracy, backlash and repeatability within .0001”.
