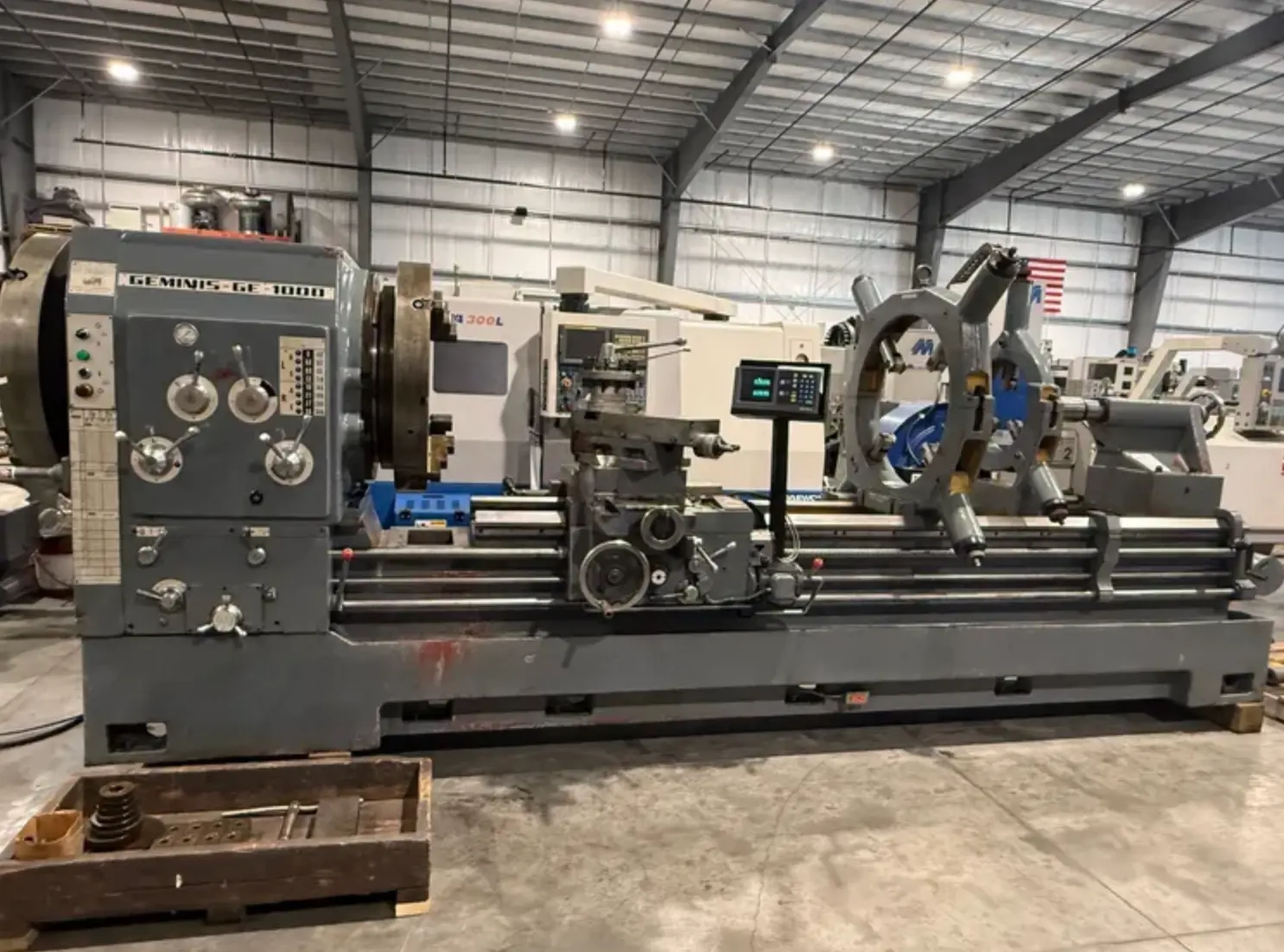

USED 1988 GEMINIS GE-1000

Engine Lathe, used but robust with 39-3/8" swing over bed, 120" between centers, and a 20.25" spindle bore. Features include ACURITE DRO, 30 H.P. motor, and multiple steady rests.

Swing over bed ways- 39-3/8”
Swing in Gap- 48-3/4”
Swing over cross slide- 28-3/8”
Length of gap- 13-3/8”
Distance between centers- 120”cc
Spindle bore- 20.25”
Spindle speeds- 5 – 340 R.P.M.
Bed width-21-5/8”
Tailstock quill travel- 12”
Tailstock quill taper- #6 Morse
Inch threading- 1 – 56 T.P.I.
MM threading- .5 – 30 mm

Republic Lagun Geminis
20-1/4” Big Bore
(2) 35” 4 Jaws Chucks
30-1/2” Capacity Steady Rest
17” Capacity Steady Rest
Follow rest
Power rapids on carriage
Taper attachment & Extra guide block
Live Center
4 way tool post
Change gears
Coolant pump with built in reservoir
ACURITE 2 axis DRO Digital Read Out
30 H.P. Motor
Machine is wired for 220 volt / 3 phase / 60 H.Z.
