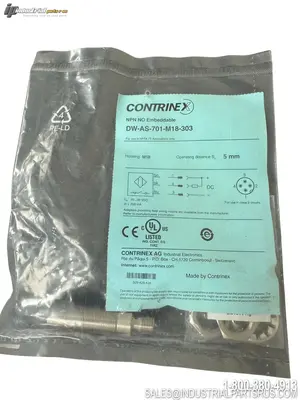

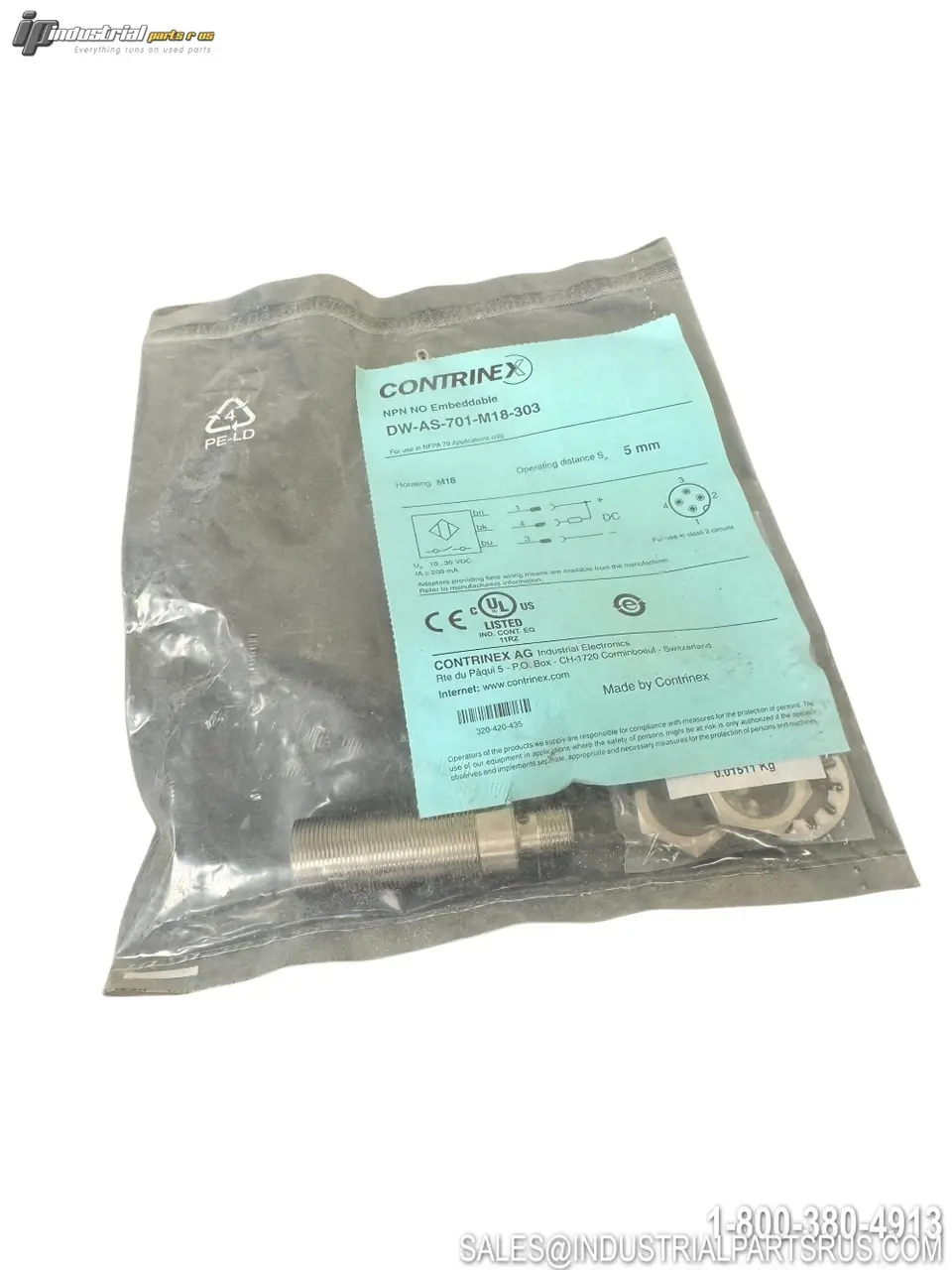

NEW CONTRINEX DW-AS-701-M18-303

The Contrinex DW-AS-701-M18-303 is an Extreme Stainless (Full Inox) M18 threaded barrel inductive proximity sensor featuring a one-piece stainless steel V2A housing with a 10 mm sensing range and NPN Normally Open (N.O.) 3-wire DC output. It connects via an S12 (3-pin) connector and is rated IP68/IP69K, making it highly resistant to water immersion and high-pressure washdown environments. The shielded (embeddable/flush) design allows installation directly in metal without performance degradation, making it ideal for demanding industrial automation applications.
Specification
Value
Brand
Contrinex
Model / Part Number
DW-AS-701-M18-303
Product Type
Inductive Proximity Sensor
Series
DW-AS (Extreme Stainless / Full Inox)
Housing Size / Thread
M18 x 1
Sensing Range (Sn)
10 mm
Mounting Type
Embeddable (Flush / Shielded)
Output Polarity
NPN
Output Function
Normally Open (N.O.)
Wiring Type
3-Wire DC
Connection Type
S12 Connector (3-pin)
Supply Voltage
10 to 30 VDC
Max Load Current
≤ 200 mA
No-Load Supply Current
≤ 10 mA
Voltage Drop
≤ 2 V dc
Max Switching Frequency
≤ 100 Hz
Repeat Accuracy
≤ 0.3 mm
Temperature Drift
≤ 10%
Housing Material
Stainless Steel V2A (1.4305 / AISI 303)
Sensor Face Material
V2A 1.4305 AISI 303 Stainless Steel
IP Rating
IP68 / IP69K
Sensor Height (Body Length)
63.5 mm
Max Tightening Torque
50 Nm
Weight
53 g
Standard Sensing Object
30 x 30 x 1 mm Fe
We warranty all items for 30 days from date of purchase.
