NEW PEPPERL+FUCHS NBB5-18GM60-WS

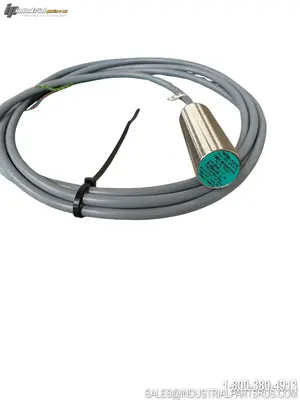

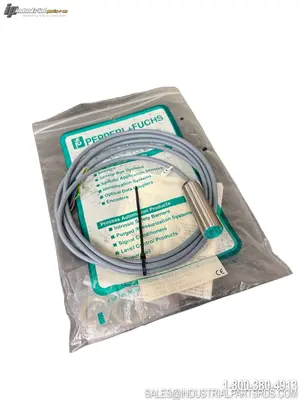

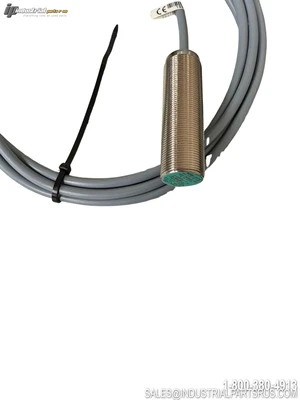

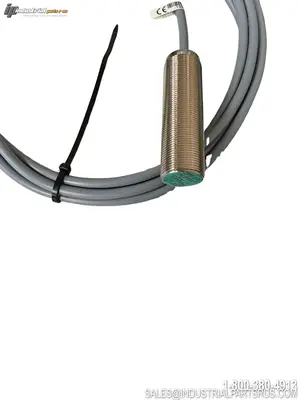

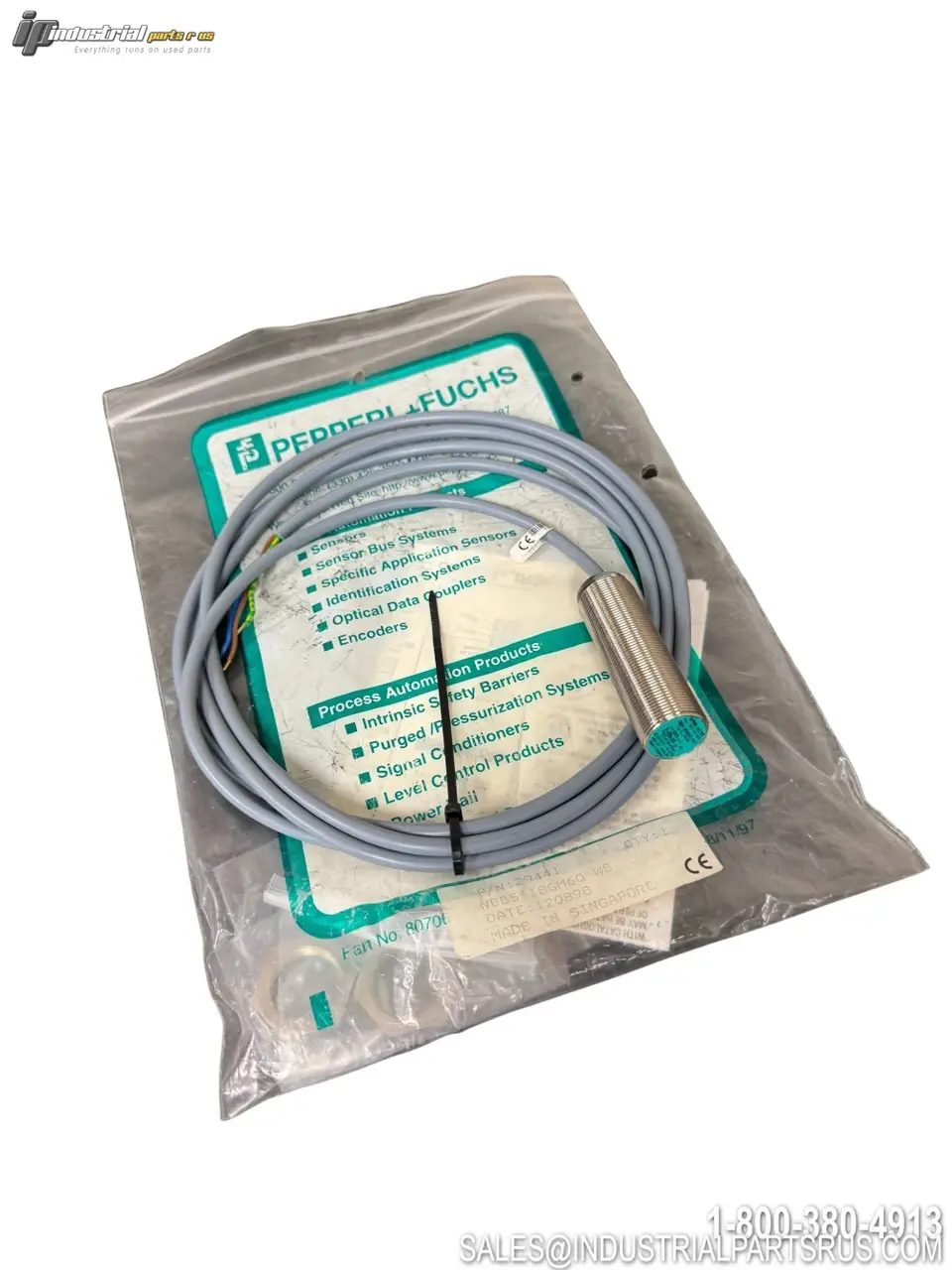

The Pepperl+Fuchs NBB5-18GM60-WS is a Basic series inductive proximity sensor housed in a standard M18 cylindrical threaded body. It features a 5 mm flush (embeddable/shielded) sensing range with a 2-wire AC normally open (NO) output, making it well-suited for AC-powered control systems without the need for a separate power supply wire. The sensor is rated IP67 for dust and water ingress protection and is supplied with a 2-meter PVC cable with wire-end ferrules.
Specification
Value
Brand
Pepperl+Fuchs
Model / Part Number
NBB5-18GM60-WS
Product Series
NBB (Basic Series)
Sensor Type
Inductive Proximity Sensor
Switching Function
Normally Open (NO)
Output Type
2-Wire AC
Rated Sensing Distance (Sn)
5 mm
Actual Operating Distance (Sr)
4.5 – 5.5 mm (typ. 5 mm)
Assured Operating Distance (Sa)
0 – 4.05 mm
Installation / Mounting
Flush (Shielded / Embeddable)
Operating Voltage (UB)
20 – 253 VAC, 45–65 Hz
Operating Current
5 – 200 mA
Momentary Current
0 – 1600 mA (20 ms, 0.1 Hz)
Switching Frequency (f)
0 – 20 Hz
Hysteresis (H)
typ. 6%
Voltage Drop (Ud)
<5 V (IL >50 mA); <8 V (IL <50 mA)
Reverse Polarity Protection
Reverse polarity tolerant
Thread Size
M18 x 1
Body Shape
Cylindrical Threaded
Overall Length
60 mm
Diameter
18 mm
Housing Material
Brass, Nickel-Plated
Sensing Face Material
PBT
Reduction Factor – Aluminum (rAl)
0.2
Reduction Factor – Copper (rCu)
0.2
Reduction Factor – Stainless 304 (r304)
0.6
Connection Type
Cable (Pre-Wired)
Cable Length
2 m
Cable Material
PVC, Grey
Cable Diameter
4.6 mm ± 0.2 mm
Number of Cores
3
Core Cross Section
0.34 mm²
Bending Radius
>10 × cable diameter
Wire End Ferrules
Yes
Degree of Protection
IP67
Ambient Temperature
-25 to +70 °C (-13 to +158 °F)
Switching State Indicator
LED, Yellow
Operating Voltage Indicator
LED, Green
Safety Fuse Recommendation
≤0.8 A quick-blow (IEC 60127-2 Sheet 1)
Standards Compliance
IEC/EN 60947-5-2
Certifications
UL Listed, CSA Certified, CCC
Compatible Accessories
EXG-18 (mounting bracket), BF 18 (mounting flange, 18 mm)
We warranty all items for 30 days from date of purchase.
