NEW PHD 17502-2-08 / 17522-2

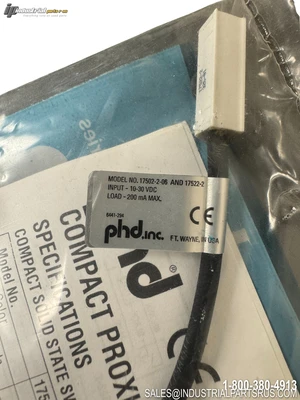

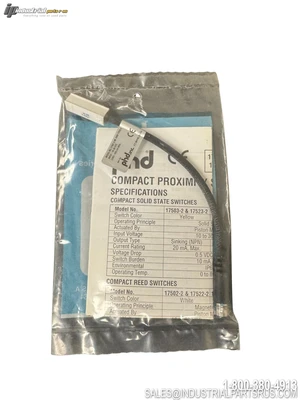

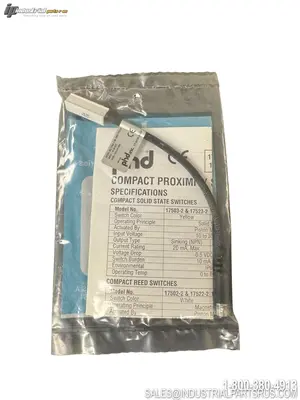

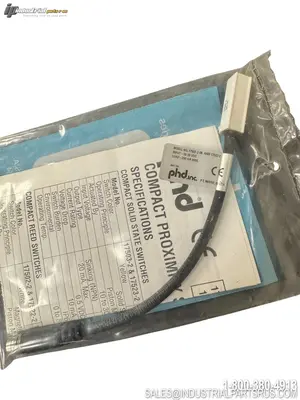

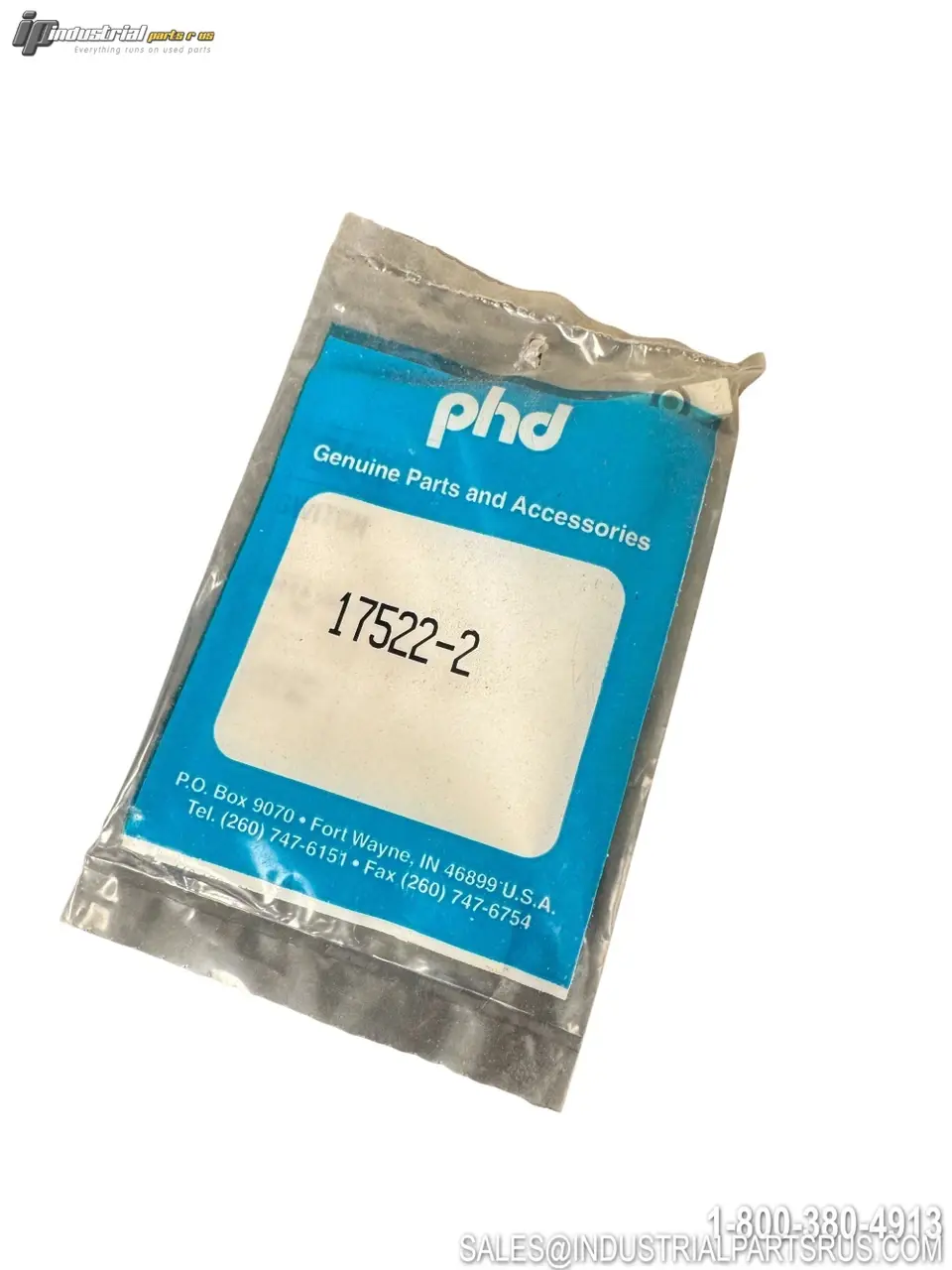

The PHD Inc. 17502-2-08 / 17522-2 is a Series 1750 Compact DC Reed Proximity Switch set used for cylinder piston position sensing on PHD pneumatic, hydraulic, and Tom Thumb actuators. The 17502-2-08 is the cabled variant with an 8-foot cable, while the 17522-2 is the quick connect (M8 3-pin male connector) variant — both providing NPN (sink) or PNP (source) DC Reed output in a white housing with bi-polar LED indicator. These switches interface directly with programmable controllers, sequencers, and relays and are actuated by the cylinder's internal piston magnet. Note: Both models are factory-obsolete; the JC1RDU-K is the current factory replacement for the 17522-2.
Specification
Value
Brand
PHD Inc.
Model / Part Number
17502-2-08 / 17522-2
Series
1750
Product Type
DC Reed Proximity Switch
Operating Principle
Magnetic Reed
Actuation
Piston Magnet
Input Voltage
10–30 VDC
Output Type
NPN (Sink) or PNP (Source)
Power Capacity
3 Watts Max
Load Current (Max)
200 mA
Housing Color
White
LED Indicator
Bi-polar (Red)
17502-2-08 Connection Type
Cabled — 8 ft (approx. 2.4 m) cable
17522-2 Connection Type
Quick Connect — 3-pin M8 Male Connector
Wire Count
3-Wire
Wire Colors
Brown (DC+), Black (Load), Blue (DC−)
Style
Compact, Low Profile
Compatible Products
PHD Tom Thumb, AV, HV, A, A2, A3, A3V, CRS, EH, SD, SE, SKSL Series Cylinders & Actuators
Replacement / Successor
JC1RDU-K (factory replacement for 17522-2)
Status
Obsolete / Phased Out by Factory
We warranty all items for 30 days from date of purchase.
