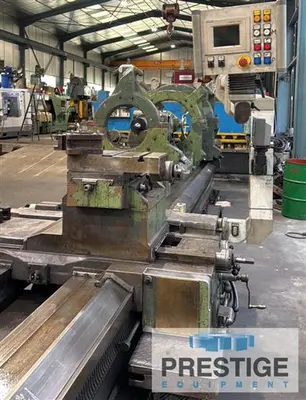

USED 1970 POREBA TCC160/10M

SPECIFICATIONS:
Maximum Swing Over Bedways: 62.99"
Maximum Swing Over Cross Slide: 51.18"
Distance Between Centers: 393.70"
Width Of Bed: 43.3"
Spindle Bore (No Hole Through Chuck): 4.13"
Spindle Speeds (24): .85-170 RPM
Diameter of Spindle Front Journal: 10.25"
Longitudinal Feeds (20): 0.007 to 0.2 IPR
Cross Feeds (20): 0.0035 to 0.1 IPR
Rapid Traverse: 158 IPM
Metric Threading: 1 to 129
Inch Threading: 30 to 1/8
Tailstock Quill Diameter: 8.66"
Tailstock Quill Travel: 23.62"
Weight Capacity Between Centers: 35,200 lbs

Equipped With:

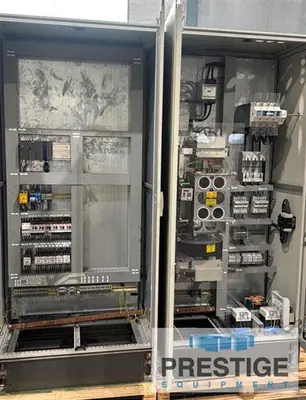

Siemens Simatic Panel
63"Independent 4-Jaw Chuck
100 HP Spindle Motor
Power Compound for Taper Turning
Threading

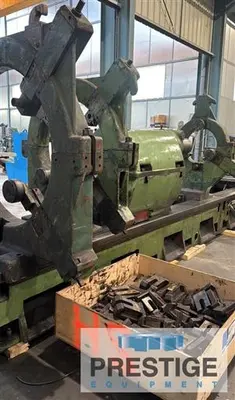

Steady Rests
Tailstock
100 HP Main Spindle Motor

Features:
Siemens Simatic Panel
63"Independent 4-Jaw Chuck
100 HP Spindle Motor
