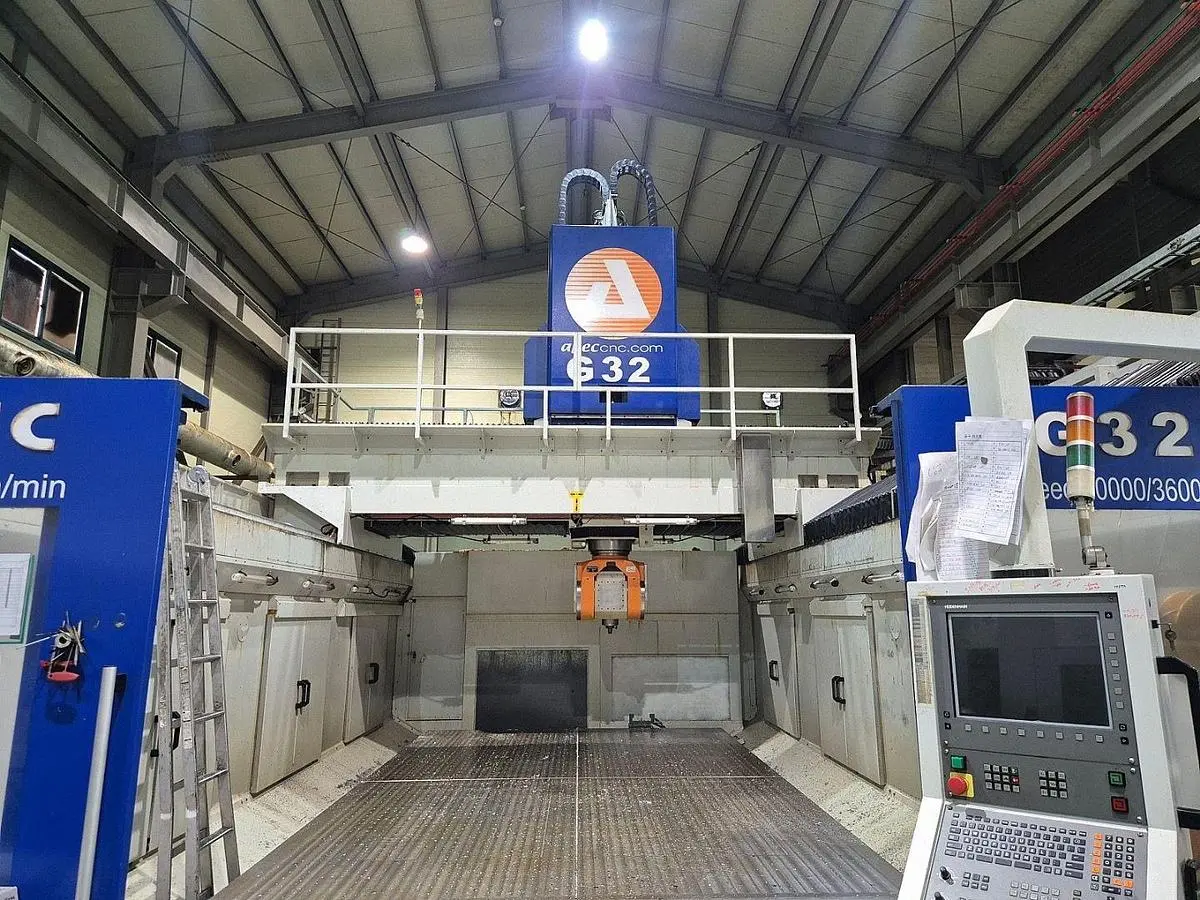

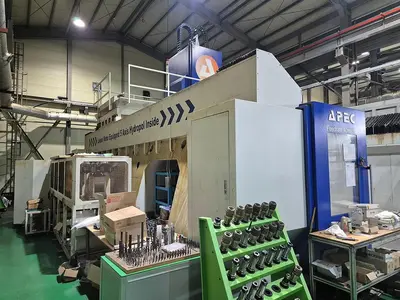

USED 2008 APEC G32

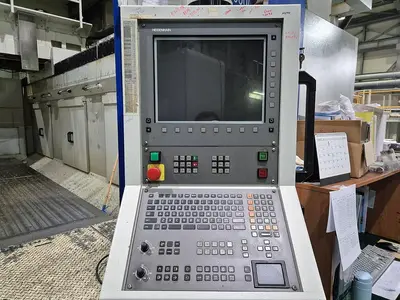

Heidenhain iTNC 530 CNC Control5-Axis simultaneous MachiningTwo-axis head driven by direct drive motor Excellent surface finish contour could be enhanced thanks to the high torque direct drive motor system of two-axis heads. Small size appearance is suitable for complex curved surface machining and the advantages include low error, high resolution and high speed.80 Position ATC HSK 100A - 30 Position ATC HSK 50A Screw Type Chip ConveyorCooler for Linear MotorsCooler for SpindlesX/Y axis driven by linear motor Linear motor provides excellent dynamics and static rigidity. The rapid feed rate of the axis is up to 60m/min and the acceleration is up to 0.5G ~ 0.7G. Z-axis driven by double ball screws with innovative hollow water cooling technology Z-axis is driven by double ball screws which could ensure concentric of the moving part center and the weight center and the weight center so that the vibration could be eliminated. Moreover, it is equipped with hollow water cooling system for precise temperature control and thermal deformation control.

Manufacturer: APEC
Model: G32
Year: 2008
Condition: Used
Stock Number: 11232
Between columns: 4,500 mm
Spindle speeds: 10,000 rpm
Distance spindle end to table: 250 - 1,450 mm
X axis travel: 6,000 mm
Y axis travel: 3,200 mm
Z axis travel: 1,200 mm
Table dimensions: 3,200 x 6,250 mm
Table capacity: 3000 kg / m2
Spindle drive motor (S6): 45 kW
Spindle torque (S6): 400 Nm
Spindle taper: HSK 100A
Feedrate 3-axis rapid: 40 m/min
Machine size: 14,050 x 10,820 x 6,050 mm
Machine weight: 10,500 kgs
