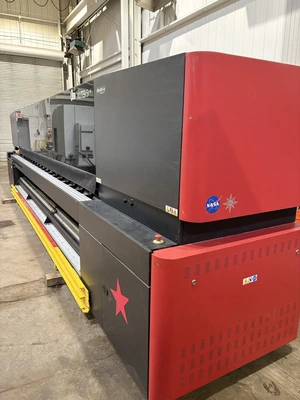

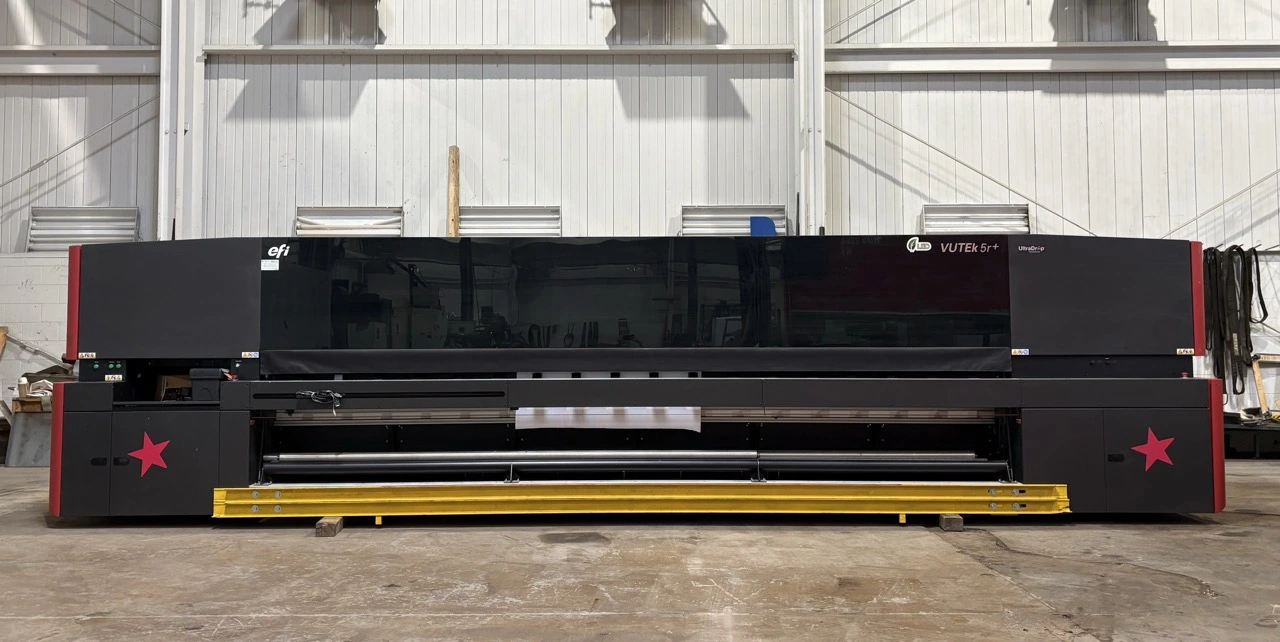

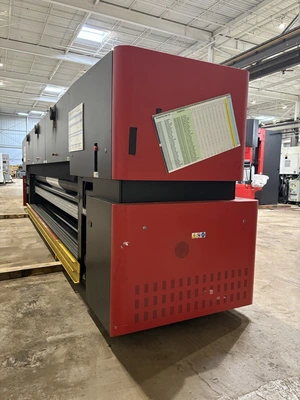

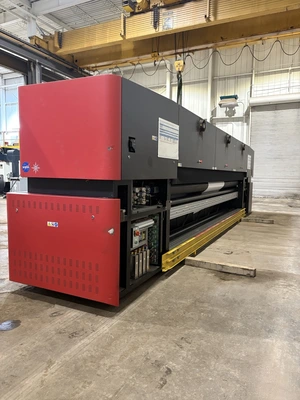

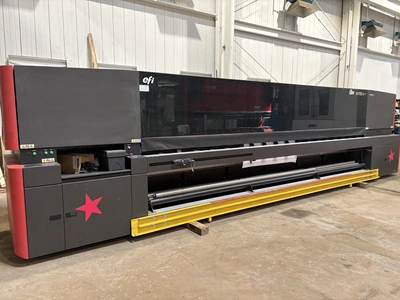

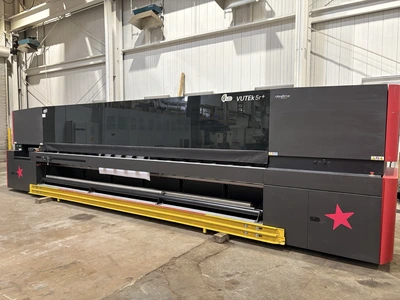

USED 2019 EFI VUTEK 5R+

The EFI VUTEk 5r+ is a super wide roll-to-roll LED UV printer designed for high-volume production of signage, banners, backlit graphics, vehicle graphics, and other flexible-media applications. It combines 18 printheads with 7 pL UltraDrop technology, up to 1,200 dpi resolution, and production speeds of up to 5,242 ft²/hr. The system supports roll-to-roll, free-fall, and multi-roll production and offers optional white, light-color, and clear-ink capabilities for expanded applications.
Machine Type: Superwide Roll-to-Roll LED UV Printer
Printing Technology: Piezo Drop-on-Demand Inkjet
Printheads: 18 Printheads with 7 pL UltraDrop Technology
Maximum Resolution: Up to 1,200 dpi True Resolution
Maximum Print Width: 208″ (520 cm)
Maximum Productivity: 5,242 ft²/hr (487 m²/hr)
Standard Colors: CMYK
Optional Colors: Light Cyan, Light Magenta, Light Black, White & Clear
Ink Type: EFI UV LED-Curable Ink
Media Handling: Roll-to-Roll, Free-Fall & Multi-Roll
Multi-Roll Printing: Up to (3) 63″ (1.6 m) Rolls
Media Utilization: Up to 300% improved media utilization
Media Loading: 3″ Metal Bar for 5-Meter-Wide Media
Motorized Winder: Optional
Super-Duty Rewinder: Optional, supports rolls up to 1,750 lbs. (793 kg)
White Ink: Optional
White Ink Modes: White Only, White Under Color, White Over Color, C-W-C Backlit & C-W-B-W-C Blockout
Seven-Color Printing: Optional
UltraClear Coat: Optional
Automatic Blockout Printing: Optional
Automatic Backlit Printing: Optional
X-Cutter: Optional
Y-Slitter: Optional
ID Backprint: Optional
Media Edge Guards: Optional
Media Spreaders: Included as Standard
Wrinkle Analyzer: Optional
Fiery RIP: EFI Fiery proServer Premium
Compressed Air: 95 PSI / 6.5 bar, 4 CFM / 110 L/min
Operating Temperature: 68–86°F (20–30°C)
Humidity: 30–80% Non-Condensing
Optimal Humidity: 50–80% Non-Condensing
Machine Weight: Approximately 12,125 lbs. (5,500 kg)
Crated Weight: Approximately 15,432 lbs. (7,000 kg)
Machine Height: 86.6″ (220 cm)
Machine Width: 27′ 6.7″ (840 cm)
Machine Depth: 61″ (155 cm)
Electrical: 230/380 VAC, 3 Phase + N + PE, 32 Amp, 50/60 Hz
Printing Power Consumption: Approximately 2.9 kW
Peak Power Consumption: Approximately 5.7 kW
LED UV Chiller: 3.6 kW Cooling Capacity
Applications: Banners, Signage, Backlit Graphics, Vehicle/Fleet Graphics, Window Graphics, Outdoor Graphics & Flexible Media
