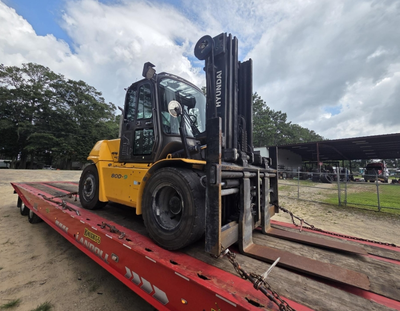

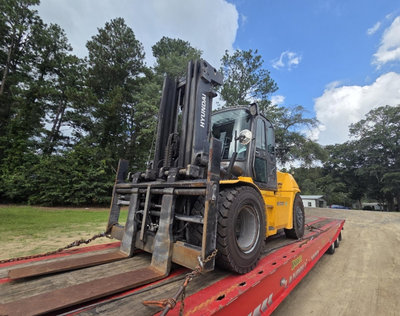

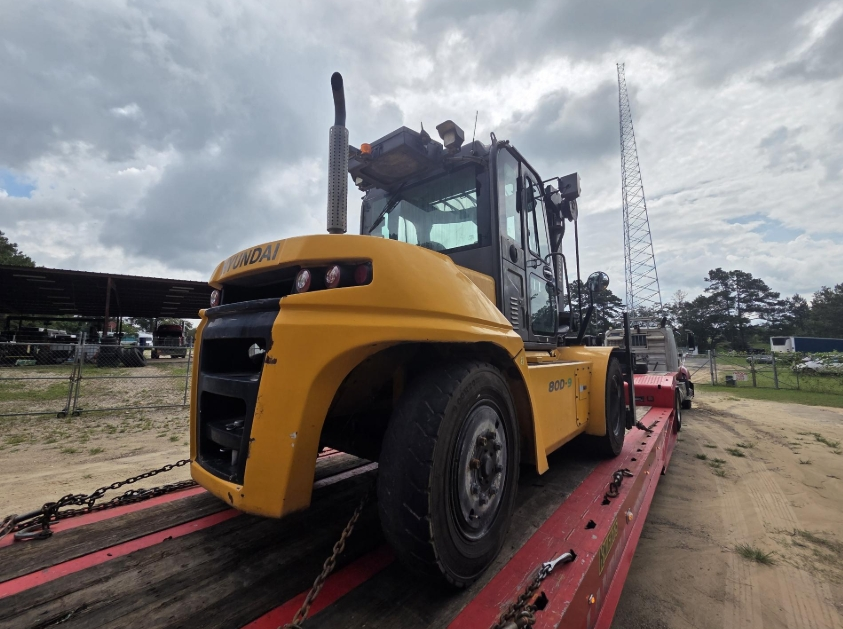

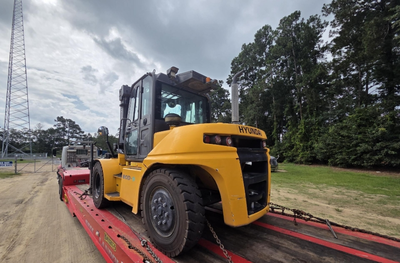

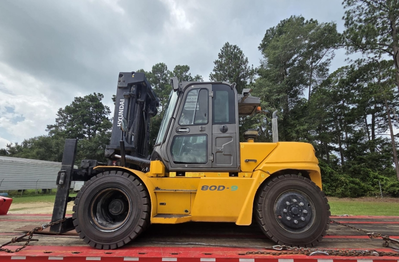

USED 2022 HYUNDAI 80D-9

The Hyundai 80D-9 is a heavy-duty diesel counterbalance forklift designed for demanding material-handling applications requiring high lifting capacity and durability. With an 8,000 kg (17,400 lb) rated capacity, Cummins QSF3.8 Tier 4 Final engine, full-automatic transmission, and pneumatic tires, the 80D-9 is well suited for heavy manufacturing, steel, lumber, fabrication, and outdoor material-handling operations.
The 80D-9 combines a 600 mm (24″) load center with a 3,040 mm (120″) standard lift height, 35 km/h travel speed, and approximately 35% gradeability. The model is also available with various mast, fork, carriage, and operator-comfort configurations, so the exact mast height and installed options should be verified against the specific unit.
Machine Type: Diesel Counterbalance Forklift
Fuel Type: Diesel
Rated Load Capacity: 17,400 lbs. (8,000 kg)
Load Center: 24″ (600 mm)
Engine: Cummins QSF3.8
Engine Type: 4-Cylinder Turbocharged Diesel
Engine Power: 100.6 HP @ 2,200 RPM
Displacement: 3.8 L
Transmission: Full Automatic
Drive Configuration: 4-Wheel Drive / 2-Wheel Steering
Tires: Pneumatic
Front Tire Size: 9.00-20-14PR
Rear Tire Size: 9.00-20-14PR
Wheelbase: 98.4″ (2,500 mm)
Standard Lift Height: 120″ (3,040 mm)
Lowered Mast Height: 105.3″ (2,675 mm)
Extended Mast Height: 172.2″ (4,375 mm)
Free Lift: 5.7″ (145 mm)
Fork Dimensions: 47.2″ × 7.1″ × 2.8″ (1,200 × 180 × 70 mm)
Fork Carriage: Class IV
Fork Carriage Width: 89.3″ (2,268 mm)
Overall Length: Approximately 209.3″ (5,316 mm)
Length to Face of Forks: 156.3″ (3,971 mm)
Overall Width: 86.4″ (2,194 mm)
Overhead Guard Height: Approximately 104″ (2,640 mm)
Turning Radius: 145.7″ (3,700 mm)
Ground Clearance Under Mast: 9.8″ (250 mm)
Ground Clearance at Center of Wheelbase: 11.9″ (302 mm)
Travel Speed, Unloaded: 21.7 MPH (35 km/h)
Lift Speed, Loaded/Unloaded: 410 / 480 mm/sec
Lowering Speed, Loaded/Unloaded: 500 / 500 mm/sec
Maximum Gradeability: 35.2%
Maximum Drawbar Pull: 70,010 N
Service Brake: Foot-Operated Hydraulic
Hydraulic System Pressure: 210 bar
Attachment Hydraulic Pressure: 150 bar
Operating Weight: Approximately 25,591 lbs. (11,608 kg)
Fuel Consumption: Approximately 8.5 L/hr
Sound Level at Operator’s Ear: 78.6 dB(A)
