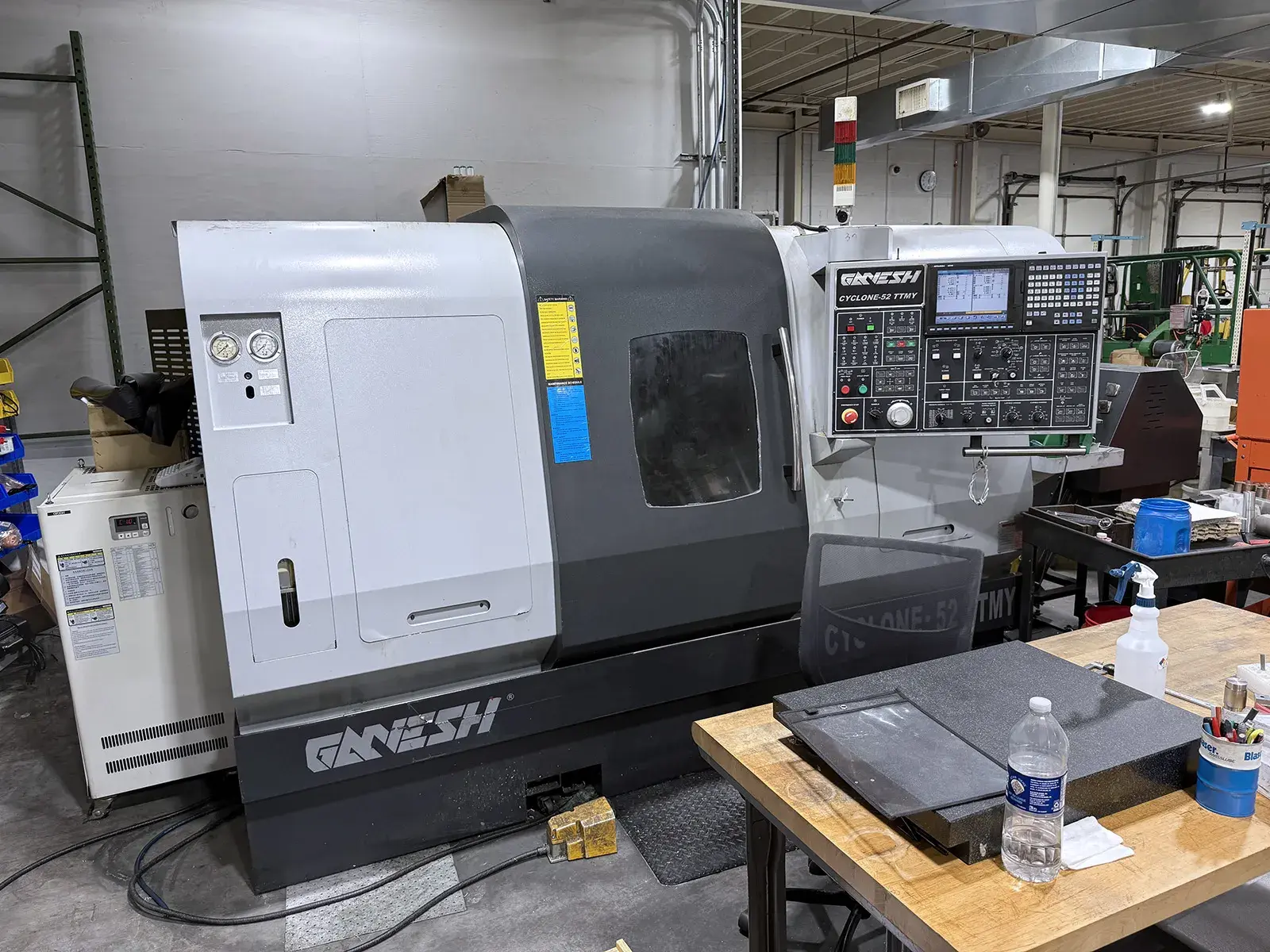

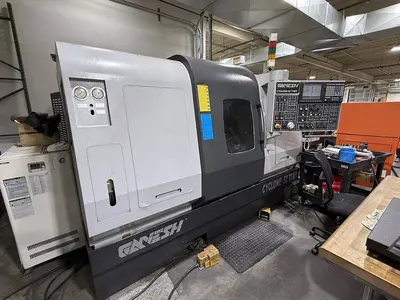

USED 2012 GANESH CYCLONE-52TTMY
Overview
Used Ganesh Cyclone-52TTMY (2012) CNC turn-mill center. This machine delivers efficient, high-precision machining of complex parts in a single setup. A versatile choice for medical, aerospace, automotive, electronics, and energy manufacturers, it helps produce precision valves, fittings, connectors, implants, and custom components with reduced handling and production time.
Specs
Mitsubishi M700 CNC control
Sub Spindle With Full C-Axis
Y-Axis On Upper Turret
Through Holder Coolant Lines
Dual High Pressure Coolant Pumps
Coolant Tank
Chip Conveyor With Chip Hopper
Parts Catcher With Swing Chute
Habor/Aircon HA-120A Spindle Oil Chiller
Electrical Cabinet Air Conditioner
Max Turning Diameter: 7.48"
Bar Capacity: 2.0"
DISTANCE BETWEEN CENTERS: 36"
Upper X-Axis Travel: 5.94"
Lower X-Axis Travel: 9.05"
Upper Y-Axis Travel: ±1.38" (2.76" Total)
Upper/Lower Z-Axis Travel: 17.32" Each
B-Axis Travel (Sub Spindle): 25.59"
C-Axis Travel (Both Spindles): 360°/0.001° Resolution
Spindle Speed: 6,000 RPM
Spindle Motor: 20 HP Peak/15 HP Continuous
X-Axis Rapid: 630 IPM
Y-axis rapid: 236 IPM
Z-Axis Rapid: 1,573 IPM
B-Axis Rapid: 1,573 IPM
Equipped With
Mitsubishi M700 CNC control
Sub Spindle With Full C-Axis
Y-Axis On Upper Turret
Through Holder Coolant Lines
Dual High Pressure Coolant Pumps
Coolant Tank
Chip Conveyor With Chip Hopper
Parts Catcher With Swing Chute
Habor/Aircon HA-120A Spindle Oil Chiller
Electrical Cabinet Air Conditioner
