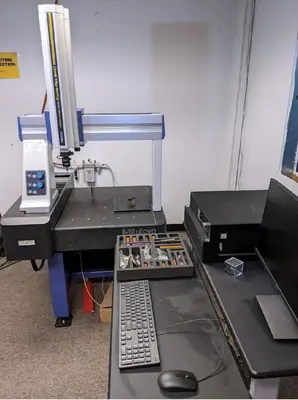

USED 2019 MIYUTOYO CRYSTA PLUS M443

Probe
Measuring Range X axis: 15.75” (400 mm)
Y Axis: 15.75” (400 mm) 27.56”
Z axis: 11.81” (300 mm) 15.75”
Workpiece Max. workpiece height: 18.9”
Max. table loading: 396 Ibs (180 kg)
Workpiece Clamping: No. of M8 x 1.25” Threaded Holes 13 13 13
Machine Accuracy: ISO 10360-2 (20 °C ±1 °C) E=(3.0+4.0L/1000) µm E=(3.5+4.5L/1000) µm E=(4.5+4.5L/1000) µm
Probe Repeatability: ISO 10360-2 R=4.0µm (TP20) R=4.0µm (TP20) R=5.0µm (TP20)
Environmental temperature: 20 °C ±1 °C 20 °C ±1 °C 20 °C ±1 °C
Resolution Length measuring system: .00002” (0.5µm) .00002” (0.5µm) .00002” (0.5µm)
Guidance: Air bearings on all axes
Measuring Table Material Granite
Dimensions: 33.07” x 51.97” (624 x 805mm)
Air supply Consumption/air pressure: ca. 50 l/min at 0.35 MPa ca. 50 l/min at 0.35 MPa ca. 50 l/min at 0.4 MPa
Dimensions Width: 38.62” (981 mm)
Depth: 41.22” (1047 mm)
Height: 77.44” (1967 mm)
Mass (with supporting table): 904 Ibs (410kg)
