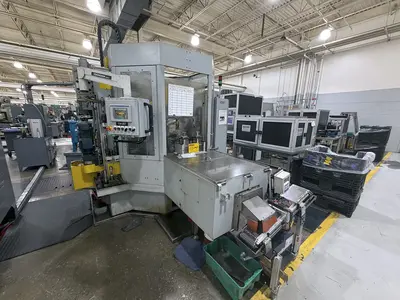

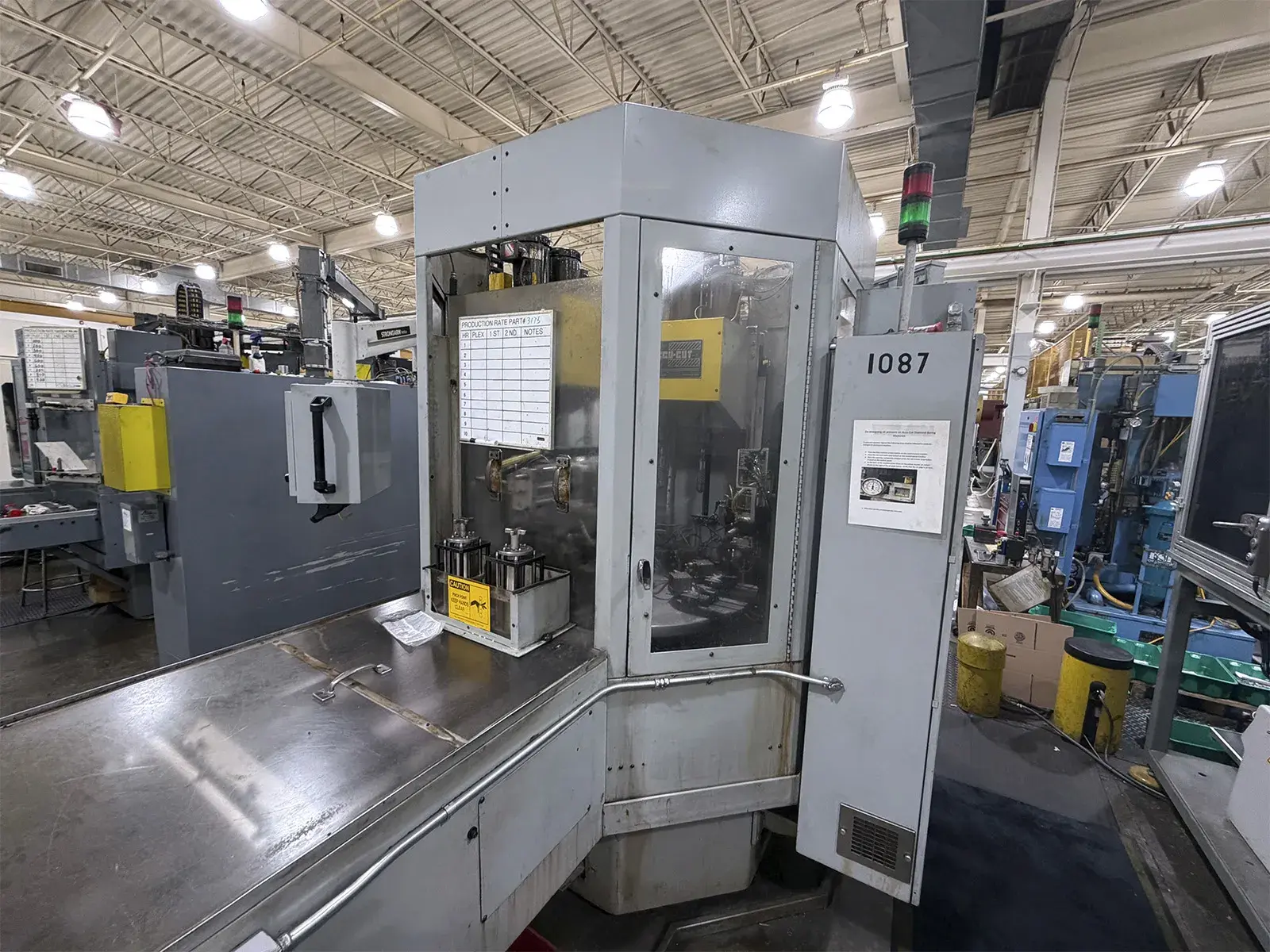

USED 2013 ACCU-CUT 2X2SM-IAG
Overview
The Accu-Cut 2X2SM-IAG (2013) delivers high-speed, ultra-precise CNC diamond bore honing for demanding production environments. Its multi-spindle single-pass design efficiently sizes and micro-finishes internal bores with consistent accuracy and cross-hatch texture, making it an excellent solution for hydraulics, automotive, fuel systems, bearings, aerospace, and high-volume manufacturing.
Specs
Allen-Bradley PanelView Plus 700 Touchscreen Control
Dual Vertical Machining Heads
Four Diamond Bore-Sizing Tool Positions
Progressive Accu-Cut Diamond Bore-Sizing Tooling
Floating Tool Holders.
Automatic Rotary Indexing Table
Multi-Station Production Workholding
Pneumatic Part Clamping
Marposs Electronic Bore Gaging / Measurement System with Automatic Dimensional Feedback
Automatic Tool Compensation Configuration
Automatic Vertical Feed
Coolant Recirculation System W/ Dual Coolant Filtration Housings
Automatic Part Discharge Conveyor with Tunnel-Type Demagnetizing System
Fully Enclosed Work Area W/ Safety Interlock Switches
Machine Status Stack Light
Machine Configuration: Dual Head / Four Tool Positions
Spindle Orientation: Vertical
Work Handling: Automatic Rotary Index Table
Bore Diameter Capacity: Application / Tooling Dependent
OEM Bore System Range: 0.040" – 8.000"
Electrical: 460 Volt / 3 Phase / 60 Hz
Full load amps: 24
Equipped With
Allen-Bradley PanelView Plus 700 Touchscreen Control
Dual Vertical Machining Heads
Four Diamond Bore-Sizing Tool Positions
Progressive Accu-Cut Diamond Bore-Sizing Tooling
Floating Tool Holders.
Automatic Rotary Indexing Table
Multi-Station Production Workholding
Pneumatic Part Clamping
Marposs Electronic Bore Gaging / Measurement System with Automatic Dimensional Feedback
Automatic Tool Compensation Configuration
Automatic Vertical Feed
Coolant Recirculation System W/ Dual Coolant Filtration Housings
Automatic Part Discharge Conveyor with Tunnel-Type Demagnetizing System
Fully Enclosed Work Area W/ Safety Interlock Switches
Machine Status Stack Light
