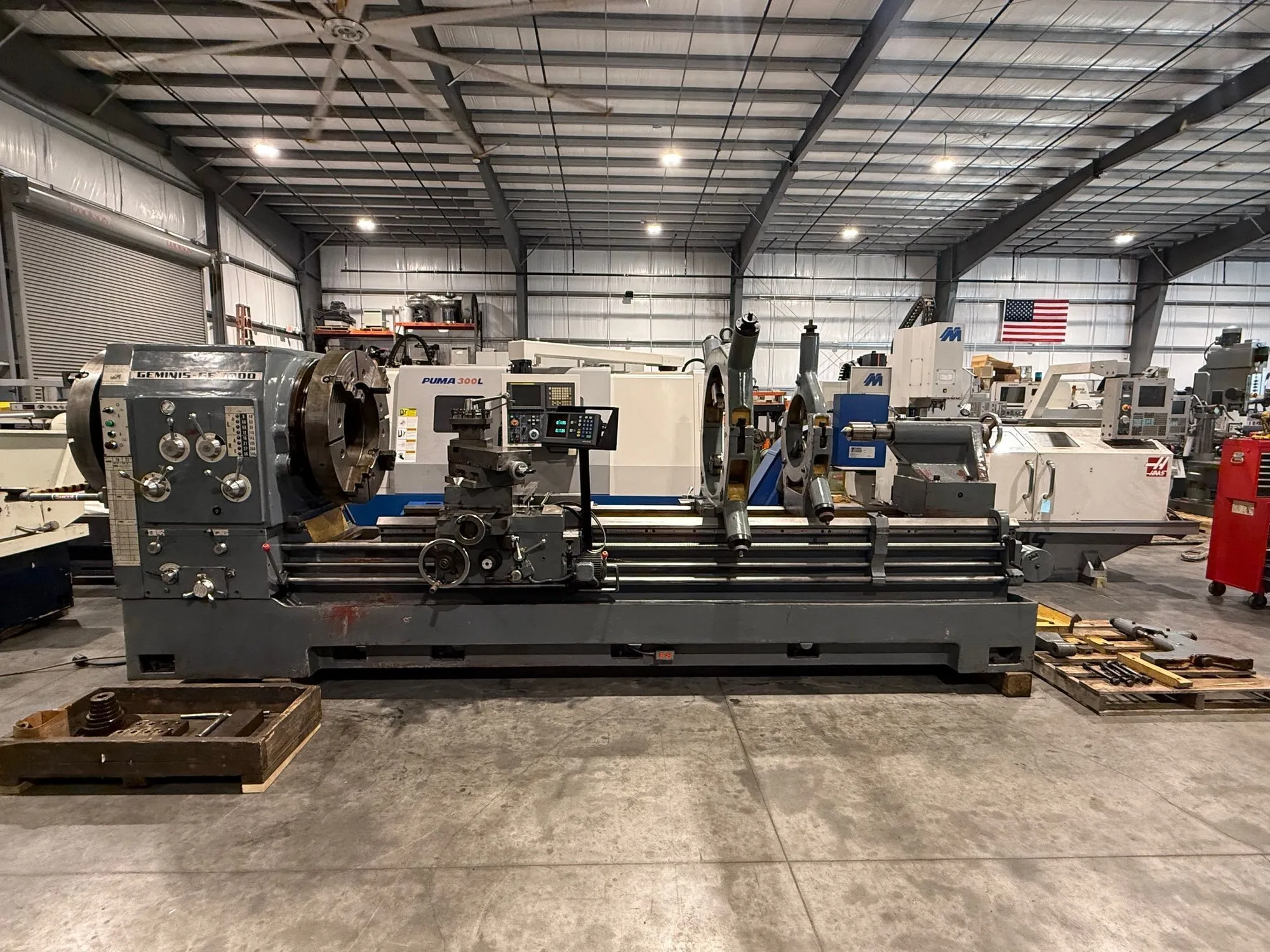

USED 1988 GEMINIS GE-1000

GEMINIS Republic Lagun GE-1000 39”/48” x 120”cc Hollow Spindle Lathe 20” BORE #7566

GEMINIS Republic Lagun GE-1000 39”/48” x 120”cc Hollow Spindle Lathe 20” BORE #7566
Reference # 7566
Model # GE-1000
Serial # 4885
Year of manufacture- 1988’
Swing over bed ways- 39-3/8”
Swing in Gap- 48-3/4”
Swing over cross slide- 28-3/8”
Length of gap- 13-3/8”
Distance between centers- 120”cc
Spindle bore- 20.25”
Spindle speeds- 5 – 340 R.P.M.
Bed width-21-5/8”
Tailstock quill travel- 12”
Tailstock quill taper- #6 Morse
Inch threading- 1 – 56 T.P.I.
MM threading- .5 – 30 mm

Republic Lagun Geminis
20-1/4” Big Bore
(2) 35” 4 Jaws Chucks
30-1/2” Capacity Steady Rest
17” Capacity Steady Rest
Follow rest
Power rapids on carriage
Taper attachment & Extra guide block
Live Center
4 way tool post
Change gears
Coolant pump with built in reservoir
ACURITE 2 axis DRO Digital Read Out
30 H.P. Motor
Machine is wired for 460 volt / 3 phase / 60 H.Z.
Machine weight- 20,000 Lbs.
Machine dimensions- 220” x 85” x 90” H
Machine location- F.O.B. Sarasota, Floirda
