USED SOUTH BEND 17 TURN-NADO

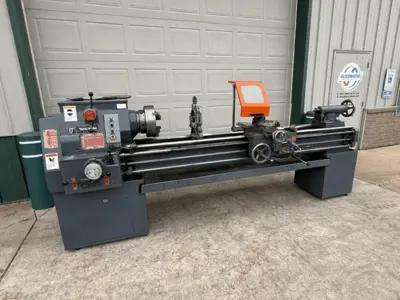

The South Bend 17" Turn-Nado Engine Lathe is a heavy-duty industrial machine designed for high-precision turning operations. Powered by a 7.5/3.75 HP motor requiring a 460V/3/60 power supply, this 3,800 lb lathe offers 9 spindle speeds ranging from 60 to 1,580 RPM. It features a 17.125" swing over bed ways, a 10.5" swing over cross slide, and a generous 80.0" distance between centers. The spindle has a 2.562" bore size and a D1-8 spindle nose, paired with a 4MT tailstock taper. Included with the lathe are a 12" 3-jaw chuck, 12" 4-jaw chuck, front hand wheel collet chuck, 12.5" and 15" face plates, a micro bed stop, steady rest, chuck guard, and two live centers.
