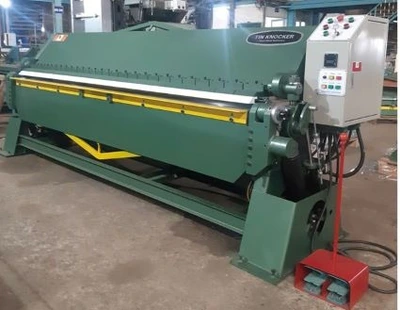

NEW TIN KNOCKER 1014B

TIN KNOCKER (NEW) MODEL 1014B 10' X 14 GAUGE
HYDRAULIC COMBO BRAKE

120" MAX BENDING LENGTH
6-3", 10-4", 10-5", 2-6" NUMBER AND WIDTH OF FINGERS
14-GAUGE MILD STEEL MAXIMUM THICKNESS
3HP, 3 PHASE, 230 VOLT, 15 AMP

FEATURES
- ADJUSTABLE TOP LEAF, OPEN HEIGHT ADJUSTMENT
- TOW POSITION BENDING LEAF ANGLE BAR
- 6" BOX DEPTH WHEN USING BOX AND PAN FINGERS
- HARDENED TOOLING, BOTH FINGER AND STRAIGHT NOSE BAR
- STANDARD MOTORIZED BACK GAUGE WITH GO TO POSITIONING
- COMPACT HYDRAULIC POWER UNIT WITH DIRECT PUMP
- MANIFOLD MOUNTED DIRECTIONAL VALVES
- LARGE CYLINDER ATTACHED TO MASSIVE HINGE
- ADJUSTABLE CLAMP PRESSURE WITH MECHANICAL OVERLOCK
AND REFERENCE SCALE

STANDARD EQUIPMENT
- REMOVABLE NOSE BAR, BOLTED BOTTOM BAR, COMPACT HYDRAULIC
POWER UNIT, ANGLE BAR, INSERT BAR, OIL LEVEL SIGHT GAUGE AND
28 BOX AND PAN FINGERS
CONTROL PANEL FEATURES
- ON/OFF KEY SELECTOR SWITCH, BENDING LEAF UP/DOWN PUSHBUTTONS,
CLAMP/UNCLAMP PUSHBUTTONS, MOTOR START PUSHBUTTON, EMERGENCY
STOP PUSH BUTTON, AUTOMATIC CYCLE PUSH BUTTON
- ELECTRIC FOOT SWITCH
CLAMPS AND UNCLAMPS TOP LEAF, ALLOWS OPERATOR MOBILITY WHEN
LOADING AND UNLOADING MATERIAL
BEND ANGLE DIAL ADJUSTMENT
- ADJUSTABLE CAM AND SCALE THAT READ IN DEGREES, ACTUATES AN ELECTRIC
LIMIT SWITCH FOR BEND ANGLE CONTROL AND REPEATABILITY OF BENDS.
ADJUSTABLE BENDING ANGLE FOR REPEATABILITY WITH SCALE
MATERIAL THICKNESS DIAL ADJUSTMENT
- REFERENCE SCALE FOR SPEEDIER SET UP WHEN ADJUSTING
CLAMPING PRESSURE
BACKGAUGE
- 25-1/2" TRAVEL, RACK AND PINION TYPE GUAGE WITH HAND WHEEL
ADJUSTMENT ON RIGHT SIDE OF MACHINE. INCH/CM SCALES.
CROSSBAR TRAVEL 20IPM CROSSBAR SPEED WITH SHEET SUPPORT RODS.
