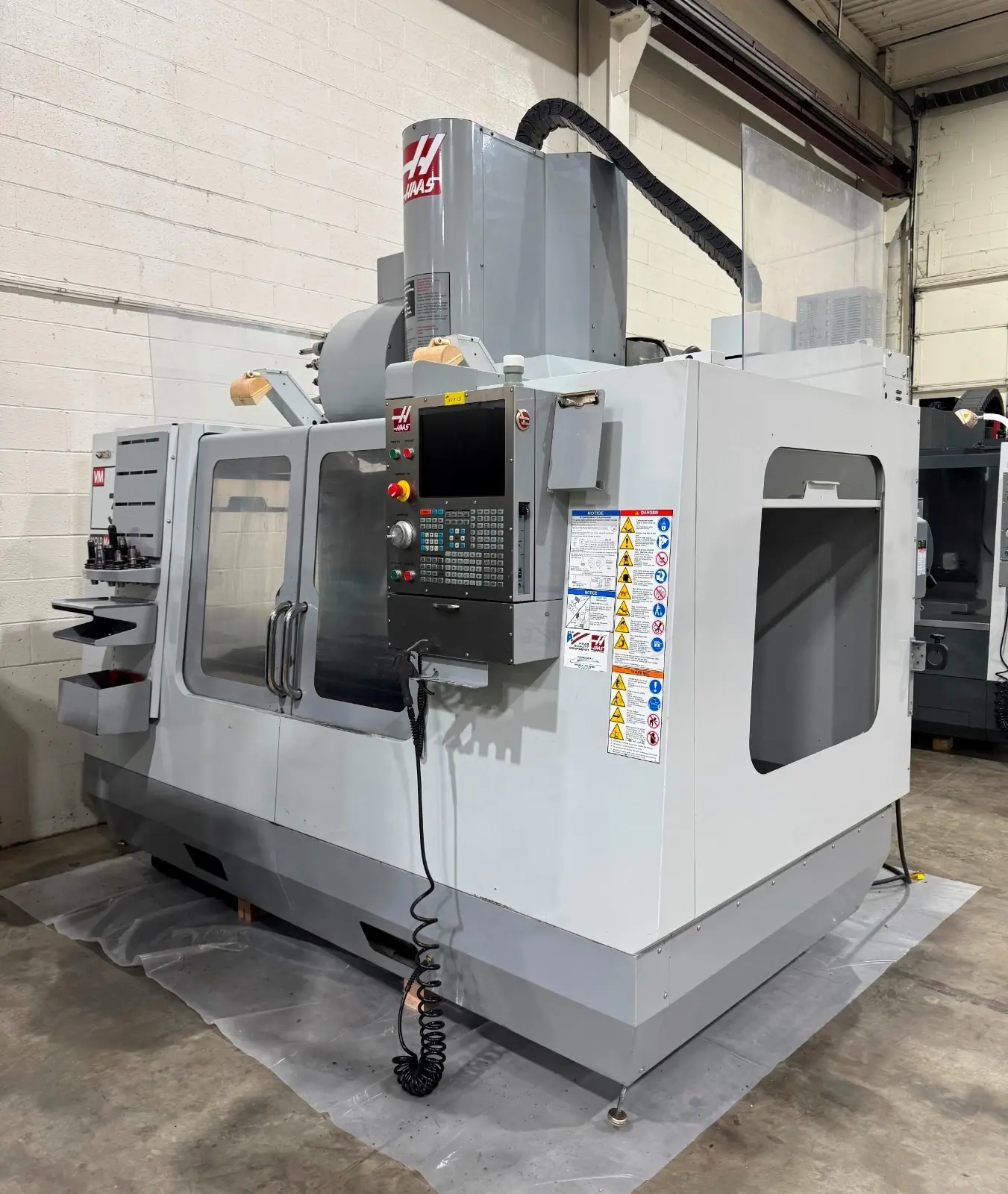

USED 2008 HAAS VM-3

Travels:
- X-Axis............40"
- Y-Axis............26"
- Z-Axis............25"
- Spindle Nose to Table Range............4.2" - 29.2"
Table:
- Size............54"L x 25"W
- Weight on Table - Maximum............4000 Lbs
- T-Slot Width............0.626" - 0.630"
- T-Slot Quantity............13 in Y and 6 in X
Spindle:
- Motor............30 HP
- Speed - Maximum............12,000 RPM
- Torque -Maximum............90.0 ft-lbf @ 2000 RPM
- Drive System............Inline Direct-Drive
- Taper............CAT 40
Feedrates:
- Cutting - Maximum............510 ipm
- Rapid Traverse (XYZ Axes)............710 ipm
Thrust on Axis Motors (XYZ Axes)............4100 lbf
Tool Changer:
- Type............Side Mount Twin Arm
- Capacity............24+1
- Tool Diameter - Maximum............2.5" (full)
- Tool Diameter - Maximum............5.0" (adjacent empty)
- Tool Length - Maximum............13" (from gage line)
- Tool Weight - Maximum............12 Lbs
- Tool-to-Tool (avg)............2.80 s
- Chip-to-Chip (avg)............3.60 s
Coolant Capacity............55 gal.
Air Requirements............4 scfm @ 100 psi
Inline Air Hose Diameter............3/8"
Coupler (Air)............3/8"
Air Pressure - Minimum............80 psi
Electrics............208/230V/3Ph/50/60Hz
Dimensions - Approximate............150"L x 102"W x 105"H
Weight - Catalog............12,720 Lbs
