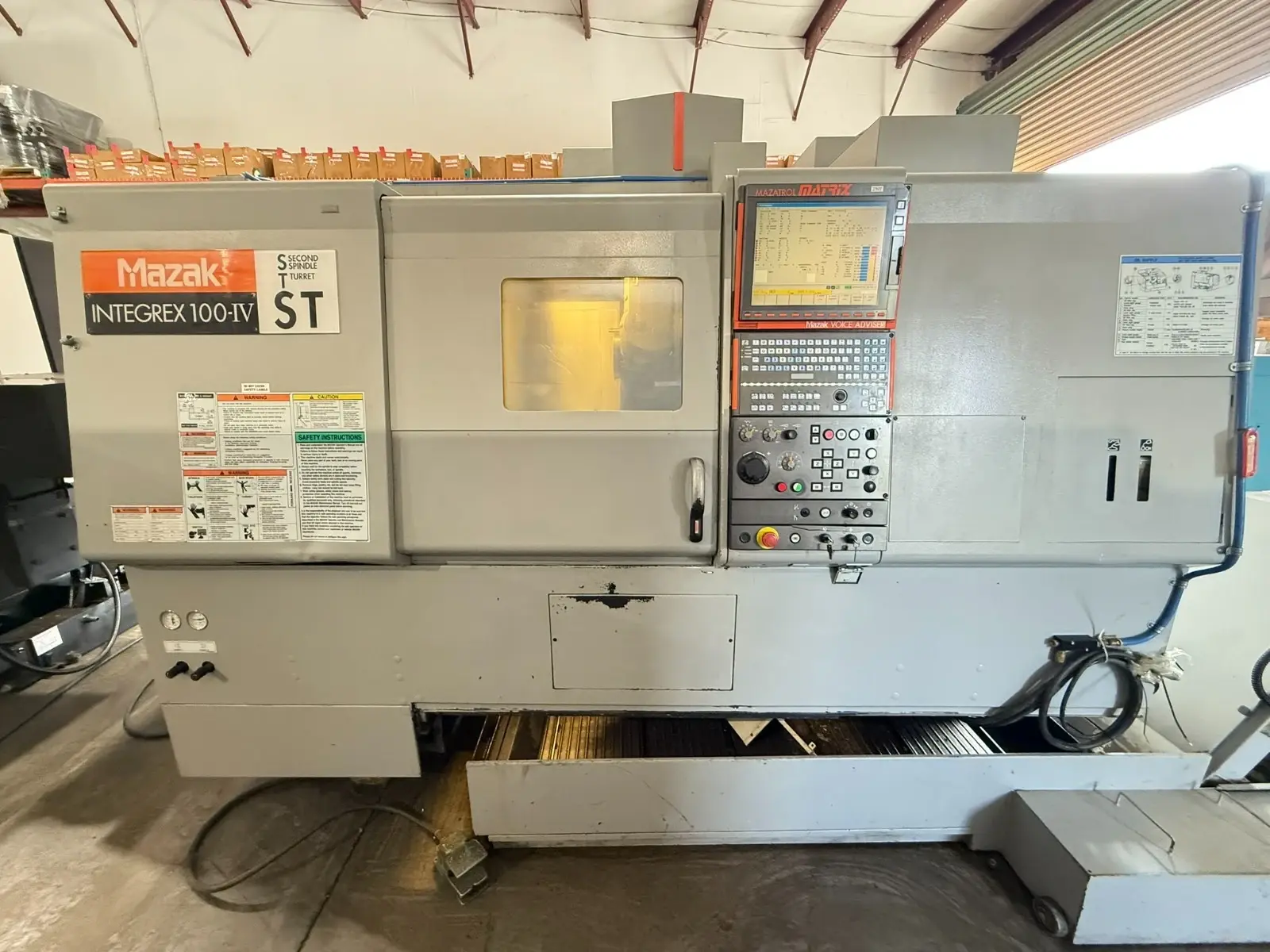

USED 2009 MAZAK INTEGREX 100-IV ST
Overview
This 2009 Mazak Integrex 100-IV ST 5-axis CNC lathe comes equipped with a sub spindle, a 9-position lower turret, and a 12,000 RPM, 7.5 HP rotary tool spindle with a 40-position ATC. Both spindles run up to 6,000 RPM with 15 HP and 2" bar capacity, with 21.46" of swing and a 29.65" max turning length.
Specs
X-Axis Travel: 16.14"
Z-Axis Travel: 31.69"
B-Axis Increment: 0.0001°
C-Axis Increment: 0.0001°
Center Distance: 30"
Main Spindle Bore: 2.4"
Main Spindle Nose: A2-5
Main Spindle Chuck Type: Collet
Sub Spindle Bar Capacity: 2"
Sub Spindle Speed: 6,000 RPM
Sub Spindle Motor: 15 HP
Sub Spindle Nose: A2-5
Sub Spindle Chuck Type: Collet
Rotary Tool Spindle Speed: 12,000 RPM
Rotary Tool Spindle Motor: 7.5 HP
Rotary Tool Spindle Size: CAT 40
ATC Positions: 40
Lower Turret: 9-Position Drum
Approximate Dimensions: 144" x 92" x 89"
Approximate Weight: 16,940 lbs
Equipped With
Royal Auto Chuck on Main and Secondary Spindle
Through Spindle Coolant
213 PSI Coolant
Chip Conveyor
Mazacc-3D High Speed Software Package
C1+C2 Synchronous Function
Synchronized Tapping
3D Coordinate Conversion
Tool Tip Point Control and Tool Radius Compensation
EIA Dynamic Compensation
EIA/ISO Code Input Function
XYZ Pitch Error Compensation Input
Absolute Positioning System
Inch/Metric Conversion
