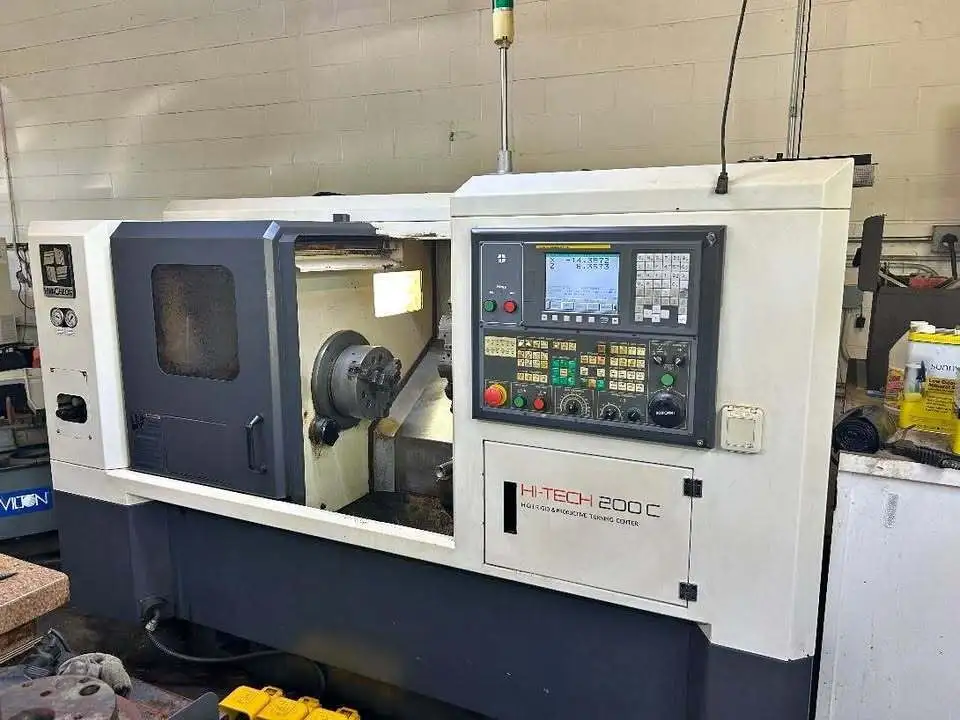

USED 2008 HWACHEON HI-TECH 200C

2008 Hwacheon Hi-Tech 200C Specifications
Specification Capacity
Machine type 2-axis CNC turning center
Swing over bed 19.68 in. (500 mm)
Maximum turning diameter 13.77 in. (350 mm)
Maximum turning length 15 in. (381 mm)
Chuck size 10 in.
Bar capacity 3 in. (76 mm)
Spindle bore 3.54 in. (90 mm)
Spindle nose A2-8
Maximum spindle speed 3,500 RPM
Spindle motor 20 hp continuous / approximately 25 hp peak
X-axis travel 7.68 in. (195 mm)
Z-axis travel 16.93 in. (430 mm)
Rapid traverse, X/Z 1,181 IPM (30 m/min)
Turret 10 stations
Turret index time 0.15 second per station
Tailstock Typically equipped
Live tooling No, unless designated 200C/MC
Guideways Box ways
CNC control Typically Fanuc 0i-TC on 2008 machines
Approximate weight 9,260–9,350 lb. (4,200–4,240 kg)
Approximate dimensions 113 × 66 × 68 in.

The 200C is the large-bore version of the Hi-Tech 200 series
using an A2-8 spindle and approximately 3-inch bar capacity.
The standard machine is a conventional two-axis lathe
