8″ 200mm Cylinder Actuated Spheri Dome Clyde Bergemann Valve / Válvula de Momo

Manufacture: Clyde Bergemann
Part Number DD-SV-30668D-00

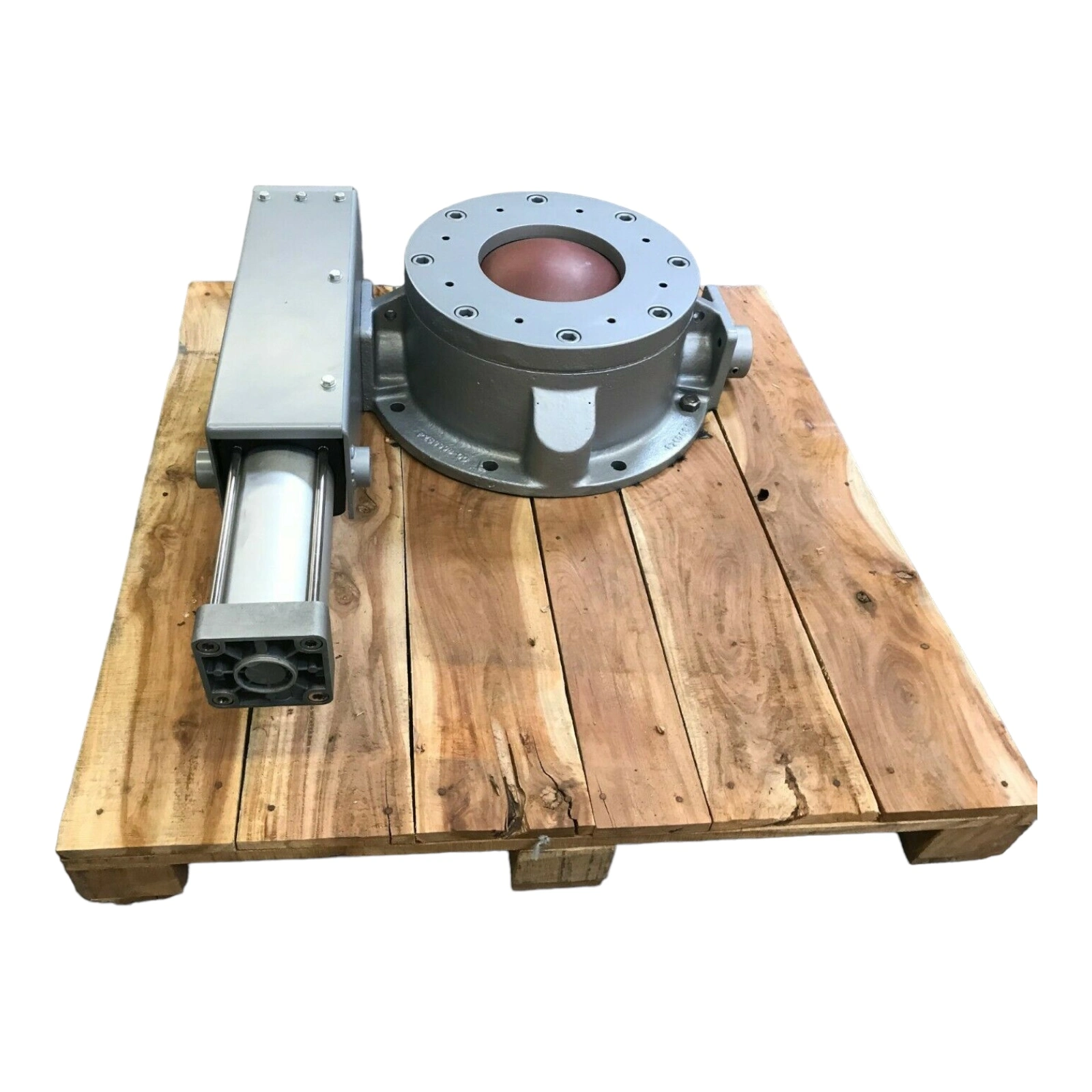

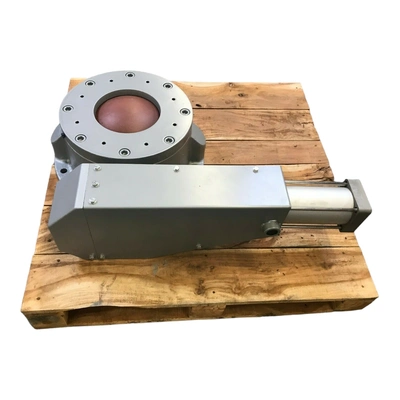

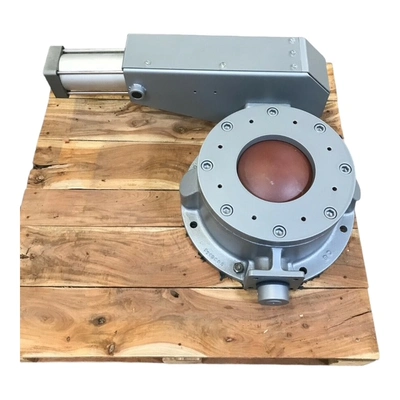

8″ Spheri Valves 200 mm with cylinder and closed inflatable seal switch
Spheri Valves can be used to handle All types of Ash, Coal and other fuels, limestone and other sorbents
Frictionless rotation: The internal dome rotates 90° to open or close the material passage. During this movement, the dome does not touch the seal, which prevents abrasive particles from wearing down the mechanical parts.
Dynamic Inflatable Seal: Once the dome is completely closed, a specialized elastomeric sealing ring is inflated using compressed air pressure. This firmly presses the seal against the dome, trapping particles and creating a 100% airtight cut, even under heavy differential pressure.
Opening Cycle: Before the dome rotates again to open the valve, the seal is completely deflated, clearing the path and eliminating friction during rotation.
Hard Materials: Capable of handling fly ash, cement, sand, washed minerals, heavy sludge and wood chips.
Thermal resistance: There are configurations with normal elastic seals (black) and high temperature seals (red).
Maintenance: The sealing ring is the common wearing part and, depending on the operation, is easily replaced (frequently every 6 months in high-demand environments).
Power generation (coal ash management)
Cement and plaster factories
Mining and metallurgical industry
Pulp, paper and water treatment plants
