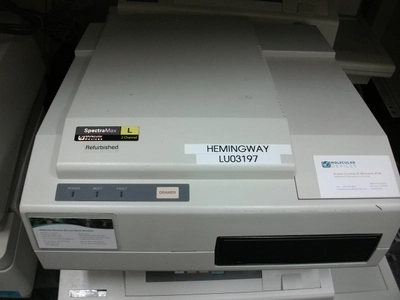

Spectramax L Microplate Reader

Flexible, sensitive luminometer for 96- and 384-well microplates.

Flexible, sensitive luminometer for 96- and 384-well microplates.

The reader is ideal for measuring flash and glow assays, including dual luciferase reporter gene, G protein-coupled receptor (GPCR) via aequorin, bioluminescence resonance energy transfer (BRET), and acridinium ester flash assays, in both 96- and 384-well plates.

Includes PC with software loaded.

Performance specifications

Cross-talk: < 3 x 10-5 (96-well)

Read modes: Endpoint, Kinetic, Fast Kinetic, Dual-Read

Injector:  2 variable volume injectors

Injector accuracy:  ±1 µL ±2%

Injector precision:  ±1 µL ±2%

Sensitivity: < 20 attomol ATP per well

Spectral range: 380–630 nm

Dynamic range:  > 9 decades

Heater:  Temperature range ambient

Auto Mix: Proprietary four-mode mixing



General specifications

Dimensions (in.):  16.5 (W) x 17 (D) x 8.75 (H)

Dimensions (cm):  42 (W) x 43 (D) x 22 (H)

Weight:  36 lbs. (16.4 kg)

Power source: 230 Vac 50 Hz, 115 Vac 60 Hz

Detector Plate formats:  Low-noise photomultiplier tube with simultaneous photon counting and analog mode

Plate orientation:  All 96- and 384-well microplates

Software: SoftMax Pro Software
Robot integration: Through SoftMax Pro Software


Comes with our 90-day warranty.
