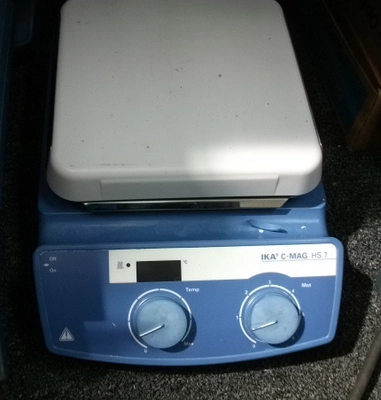

IKA C-MAG HS 7 Magnetic Stirrer

Fixed safety circuit of 550 °C

Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

Powerful motor for stirring quantities of up to 10 l (H2O)
Fixed safety circuit of 550 °C
Hot Top indicator >> hot surface warning to prevent burns!
Exact temperature setting via digital display (LED)
Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
Digital error code display
Elevated control panel for protection against leaking liquids

Technical Data

Number of stirring positions: 1
Stirring quantity max. per stirring position (H2O): 10 l
Maximun load: 15 kg
Motor rating output: 1.5 W
Direction of rotation: left
Speed adjustment scale:  0 - 6
Speed range: 100 - 1500 rpm
Stirring bar length max.: 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h): +2 K
Heat output: 1000 W
Temperature display set-value: LED
Heating temperature range: 50 - 500 °C
Heat control: Turning knob
Temperature setting resolution of heating plate: 5 K
Connection for ext. temperature sensor: ETS-D5
Fixed safety circuit: 550 °C
Set-up plate material: ceramic
Set-up plate dimensions: 180 x 180 mm
Heating rate (1l H2O in H1500): 5 K/min
Dimensions (W x H x D): 220 x 105 x 335 mm
Weight: 5 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
Voltage: 120 V
Frequency: 50/60 Hz
Power input: 1020 W

Comes with our 90-day warranty.
