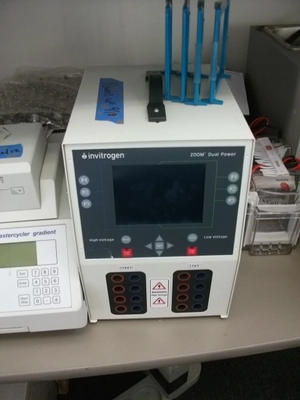

Invitrogen ZOOM Dual Power Supply

The ZOOM® Dual Power is a microprocessor-controlled programmable power supply capable of running both high voltage/low current and high current/low voltage applications concurrently. The high voltage/low current section is ideal for sample fractionation,

The ZOOM® Dual Power is a microprocessor-controlled programmable power supply capable of running both high voltage/low current and high current/low voltage applications concurrently. The high voltage/low current section is ideal for sample fractionation, IPG strips, IEF, and DNA sequencing applications. The low voltage/high current section is for SDS-PAGE, native PAGE, second-dimension SDS-PAGE, DNA/RNA electrophoresis, and blotting applications. Four sets of output jacks on each side of the unit allow for multiple apparatus to run simultaneously, offering greater workflow efficiency and higher sample throughput. Some of the important features of the ZOOM® Dual Power unit include:
• High voltage/low current and low voltage/high current sides can be used independently and concurrently
• Multiple output jacks allow for the simultaneous running of up to four electrophoresis apparatus on each side of the unit
• Memory stores up to 30 programs (15 programs per side) of up to six steps per program. Step and ramp functions for discrete and gradual changes of electrical parameters
• No Load detection alarm system can be disabled to power high voltage applications that require very low current

Specifications of the ZOOM® Dual Power
High voltage/Low current output range
Voltage: 1–3500 V; adjustable in 1V steps
Current: 0.01–10.0 mA, adjustable in 0.01 mA increments
Power: 0.1– 35W in 0.1 W steps

Low voltage/High current output range
Voltage: 1–250 V; adjustable in 1V steps
Current: 1–800 mA, adjustable in 1 mA increments
Power: 1–200 W in 1 W steps

Power Outlets
4 pairs of terminals

Programs Stored
15 programs, up to 6 steps each

Duration Limits
Time: 1 to 9999 min in 1 min steps
Voltage Hours: 1 to 65000 V-hr in 1 V-hr steps

Operating Modes
Constant voltage, constant current, constant power

Circuit Protection
Open Circuit; Short Circuit; Thermal Protection Over Voltage, Over Current, Over Power

Safety
No Load Detection Enable/Disable Isolated Floating Ground

Memory Control
Non-volatile, up to 24 hours. Custom Methods Stored to RAM

Display
LCD, view area 111.7 x 86mm

Temperature
Ambient 4-40°C

Dimensions
23.5 cm (w) x 34.5 cm (h) x 31 cm (d) (37 cm (d) with power cord attached

Weight
12 kg (26.5 lbs)
