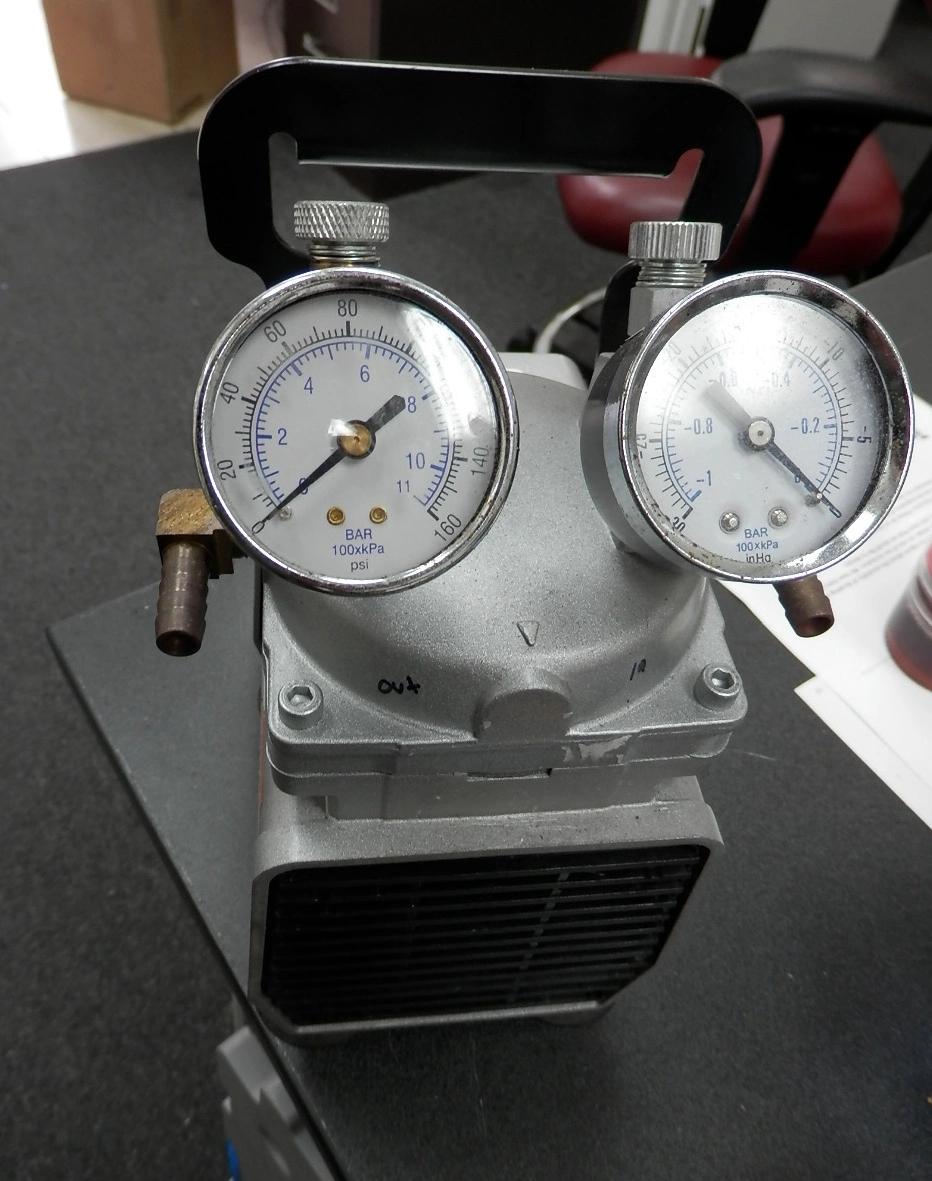

Gast High Capacity Vacuum Pump Model DOA-P704-AA

1/8 hp, 115V AC, 25.5 in Hg Max Vacuum, 60 psi Max Continuous Pressure

This diaphragm combination compressor and vacuum unit runs continuously, without oil or excess noise, and provides light-duty vacuum or air pressure.

Specifications:

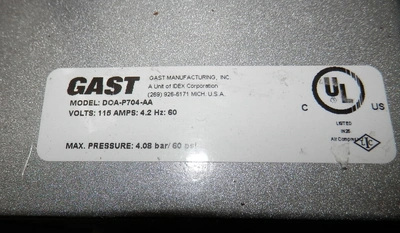

Manufacturer Part Number: DOA-P704-AA

Compressor Type: Diaphragm

Current Rating: 4.2 A

Frequency: 60 Hz

Inlet Connection Type: NPT

Inlet Size: 3/8 in

Maximum Continuous Pressure: 60 psi

Maximum Flow Rate: 1.9 cfm @ 0 psi

Maximum Intermittent Pressure: 60 psi

Maximum Operating Temperature: 104 °F

Maximum Speed: 1,575 RPM

Maximum Vacuum: 25.5 in Hg

Minimum Operating Temperature: 41 °F

Outlet Connection Type: NPT

Outlet Size: 3/8 in

Output Power: 1/8 hp

Overall Height: 8 in

Overall Length: 7.62 in

Overall Width: 5.12 in

Sound Level: 70 dBA

Voltage: 115V AC

Weight: 14.5 lb



Comes with our 90-day warranty.
