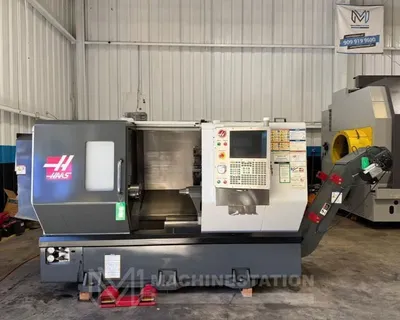

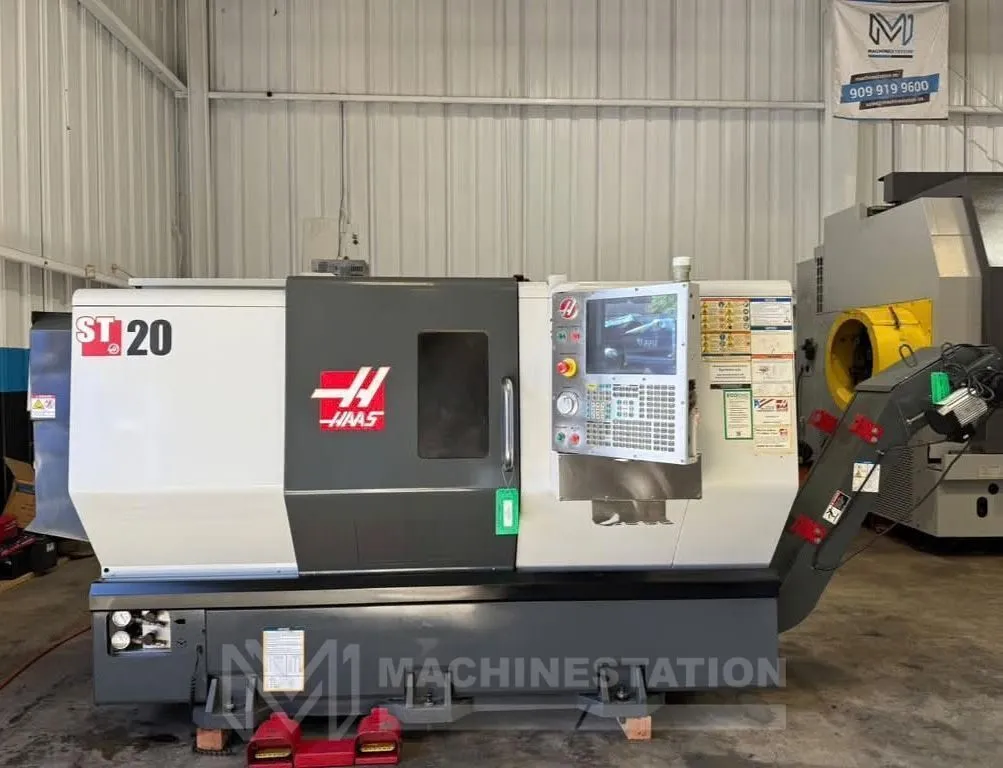

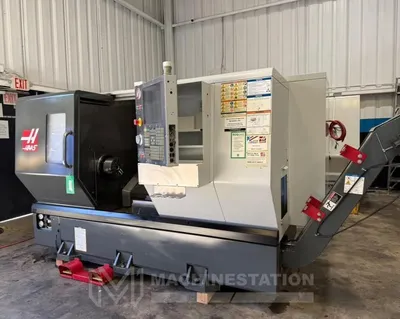

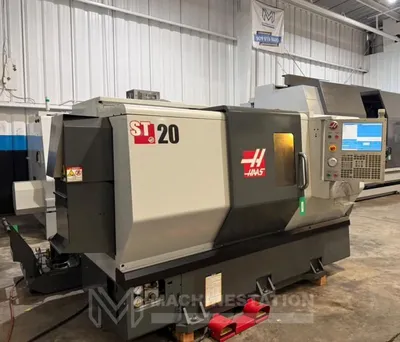

USED 2011 HAAS ST-20

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

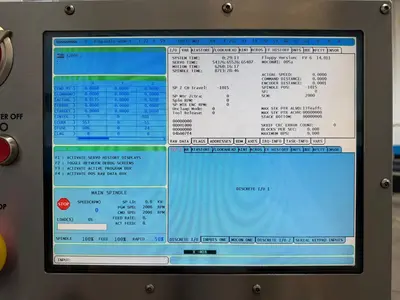

Haas CNC Control
A2-6 Spindle Nose
Rigid Tapping
Coolant Tank

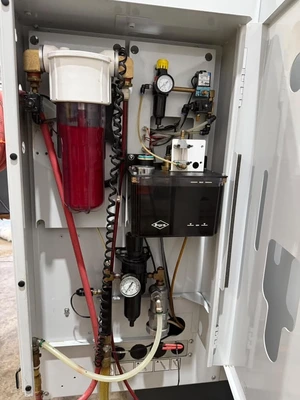

Automatic Lubrication Unit

Capacity:
Max Turning Diameter : 13.0 inch
Max Swing Over Bed : 21.0 inch
Max Turning Length: 22.5 inch
Max Bar Capacity : 2.00 inch

Travels:
X Axis Travel : 8.4 inch
Z Axis Travel : 22.5 inch

Feedrate:
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.5 inch
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP

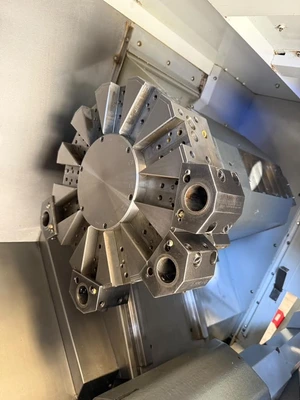

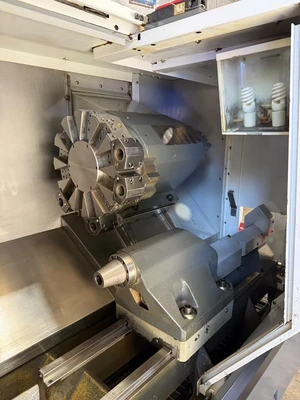

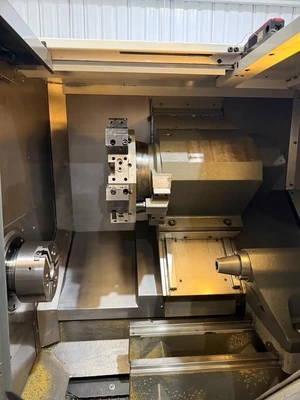

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Turret Type: Bolt On Tool Turret

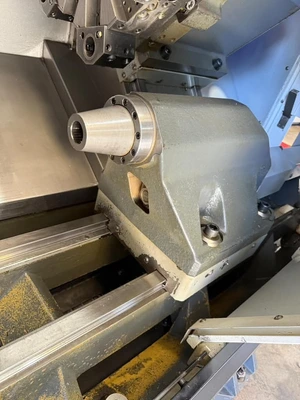

Tailstock:
Tailstock Type: Programmable
Tailstock Taper: MT-4

General:
Air Requirement: 4 scfm @ 100 psi

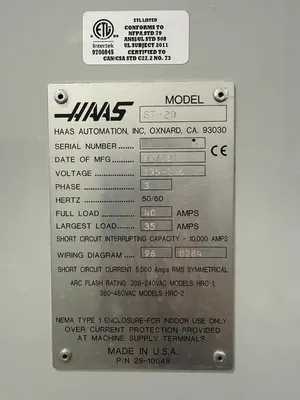

Power Source: AC 195v - 260v / 3-Phase / 50/60 Hz
Machine Dimensions: 142.5 inch x 90 inch x 92 inch High
Machine Weight: 8820 lbs Approx.
