USED 2018 ROMI C830 X 120

[ROMI C830 x 120 Combination Lathe – 2018]
[Stock Demo Machine]
Machine Configuration: ROMI C830 x 120", ASA A2-15 spindle nose, 10.2" thru spindle, 120" bed length Std

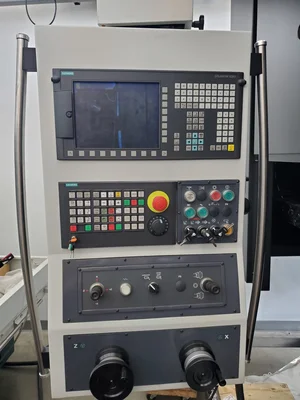

Controller: Siemens 828D with 10.4" color LCD monitor and control Std
Swing Over Bed: 33.46" Std
Swing Over Cross Slide: 21.65" Std
Distance Between Centers: 118.11" Std
Width of Bed: 18.11" Std
Spindle Nose: A2-15 Std
Spindle Bore: 10.2" Std
Spindle Speed: 775 rpm Std
X Axis – Cross Travel: 20.47" Std
Z Axis – Longitudinal Travel: 118.9" Std
X Axis Rapid Traverse Feed Rate: 319 ipm Std
Z Axis Rapid Traverse Feed Rate: 315 ipm Std
Main Motor: 45 hp Std
Tailstock
Tailstock Quill Diameter: 5.12" Std
Tailstock Quill Travel: 7.87" Std
Tailstock Quill Taper: MT5 Std
Machine Dimensions
Length: 296" Std
Width: 126" Std
Net Weight: 10,250 kg / 22,600 lbs Std
Machine Accessories – Included
X55916 Coolant Pump: 10 lpm @ 7 bar, 1.5 kW / 2 CV (#3) Inc
Tailstock: Manually operated quill with built-in bearing and MT-5 quill taper hole Inc
SE10043 Deep Hole Drill / Support: 4" ID boring bar holder / saddle Inc
Steady Rest: U-type, Ø100 to 440 mm capacity; no rollers included (#5) Inc
Set of Rollers: 100 to 305 mm (4" to 12") diameter capacity Inc

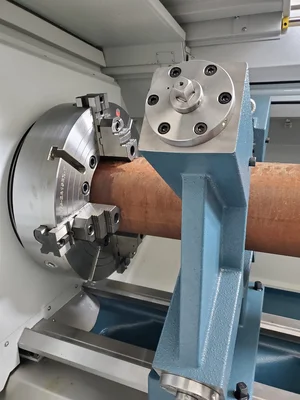

2443-2A15EX 24" 4-Jaw Chuck: Extra heavy-duty oil country steel body, A2-15, 11" thru hole Inc
Rear Centralizing Ring: 10.2" hole, ASA A2-15 Inc
