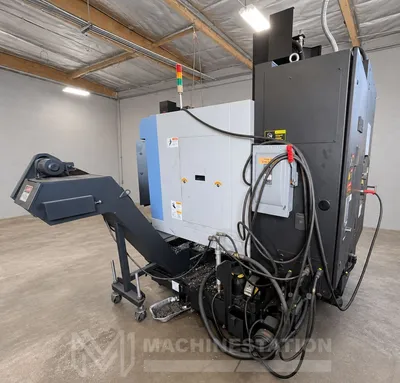

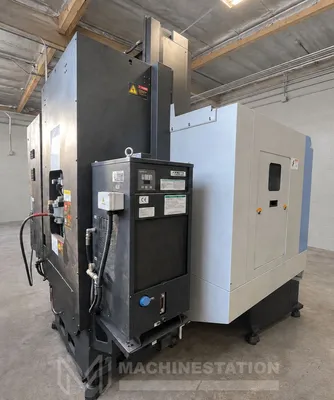

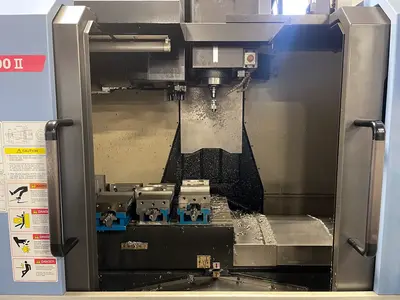

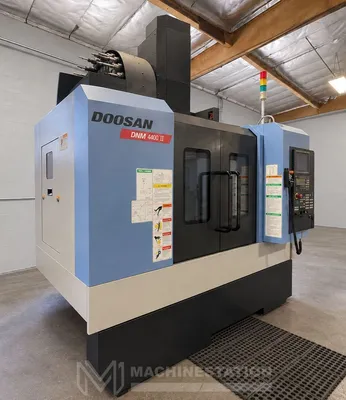

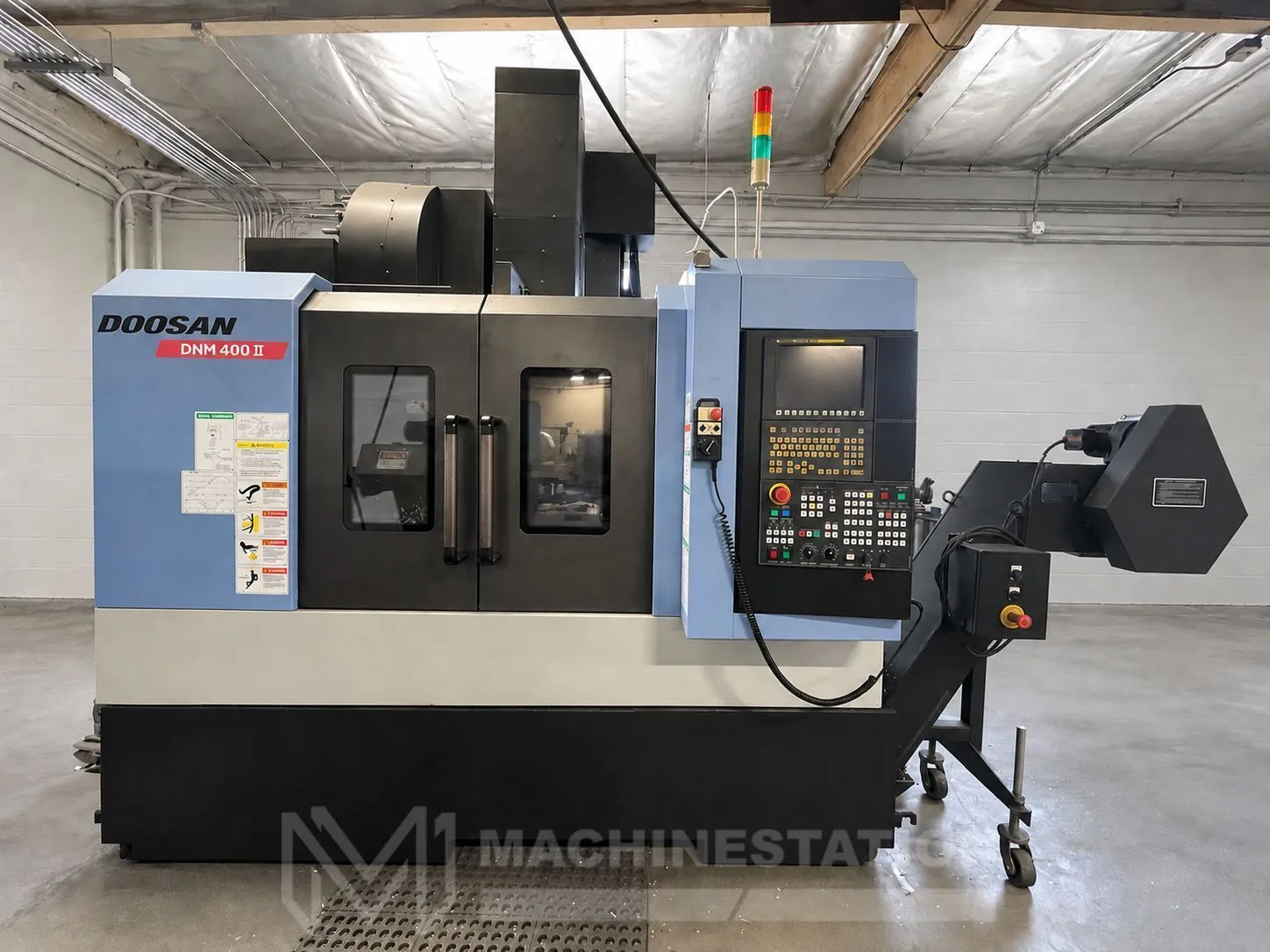

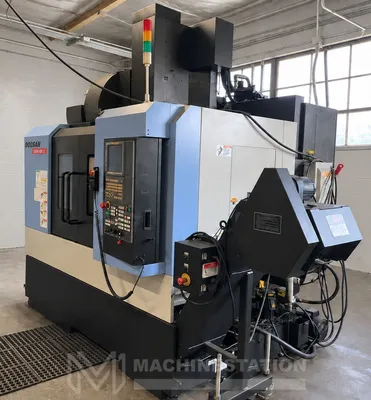

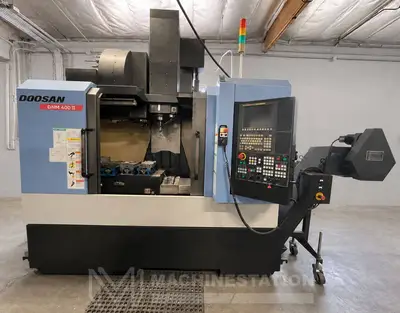

USED 2013 DOOSAN DNM 400 II

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:
Doosan Fanuc i-Series CNC Control
Automatic Lubrication System

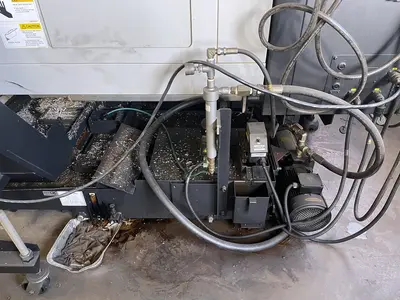

Coolant Tank

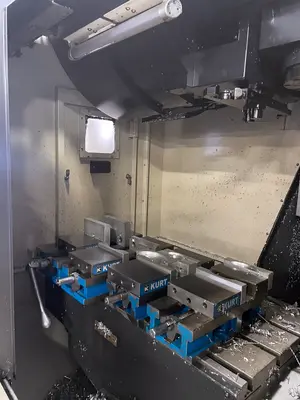

Note: Tool Holders and Vises Are Not Included With Machine

Travels:
X-Axis: 30.0″
Y-Axis: 17.1″
Z-Axis: 20.1″
Rapid Traverse Rates X & Y Axis: 1417 IPM
Rapid Traverse Rate Z Axis: 1181 IPM
Cutting Feed Rate: 590 IPM
Spindle Nose to Table: 5.9″ – 26.0″

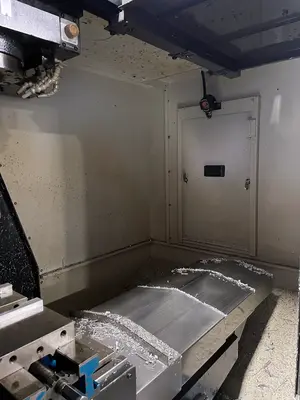

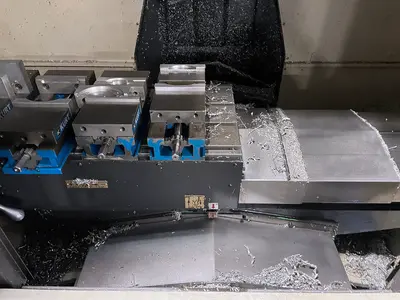

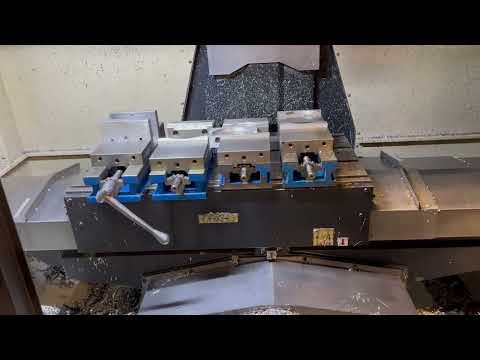

Table:
Length: 36.2″
Width: 17.1″
Number of Std T-Slots: 4
Max Weight on Table: 1323 lbs

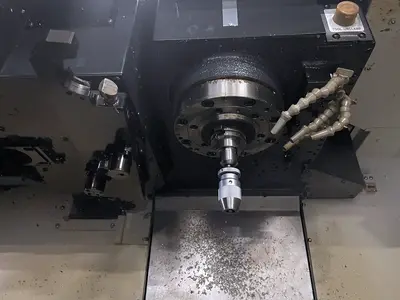

Spindle:
Taper Size: CAT-40 Big Plus
Speed Range: 12000 RPM
Spindle Power: 20 HP

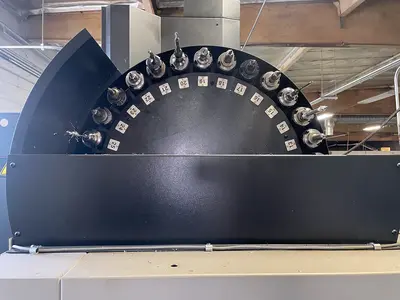

Automatic Tool Changer:
Capacity: 30 Station
Max Tool Weight: 17.6 lbs
Max Tool Diameter: 3.1″ – 4.9″
Max Tool Length: 11.8″
Tool Changing Time: 1.3 Seconds

General:

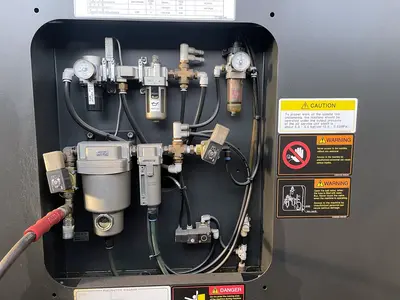

Air Required: 78.3 psi
Power: 220V / 3-Phase / 50/60 Hz / 30 kVA
Overall Dimensions: 89.8″ x 103.0″ x 106.4″ High Approx.
Weight: 11,023 lbs Approx.
