USED 2002 FANUC Alpha 0iB
Overview

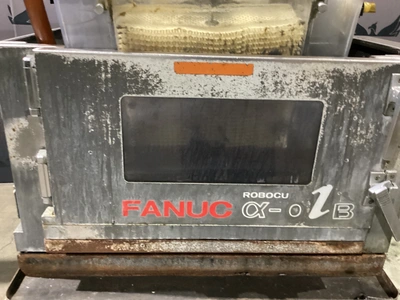

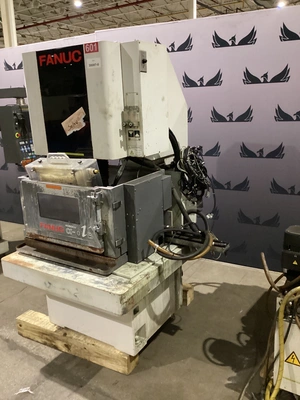

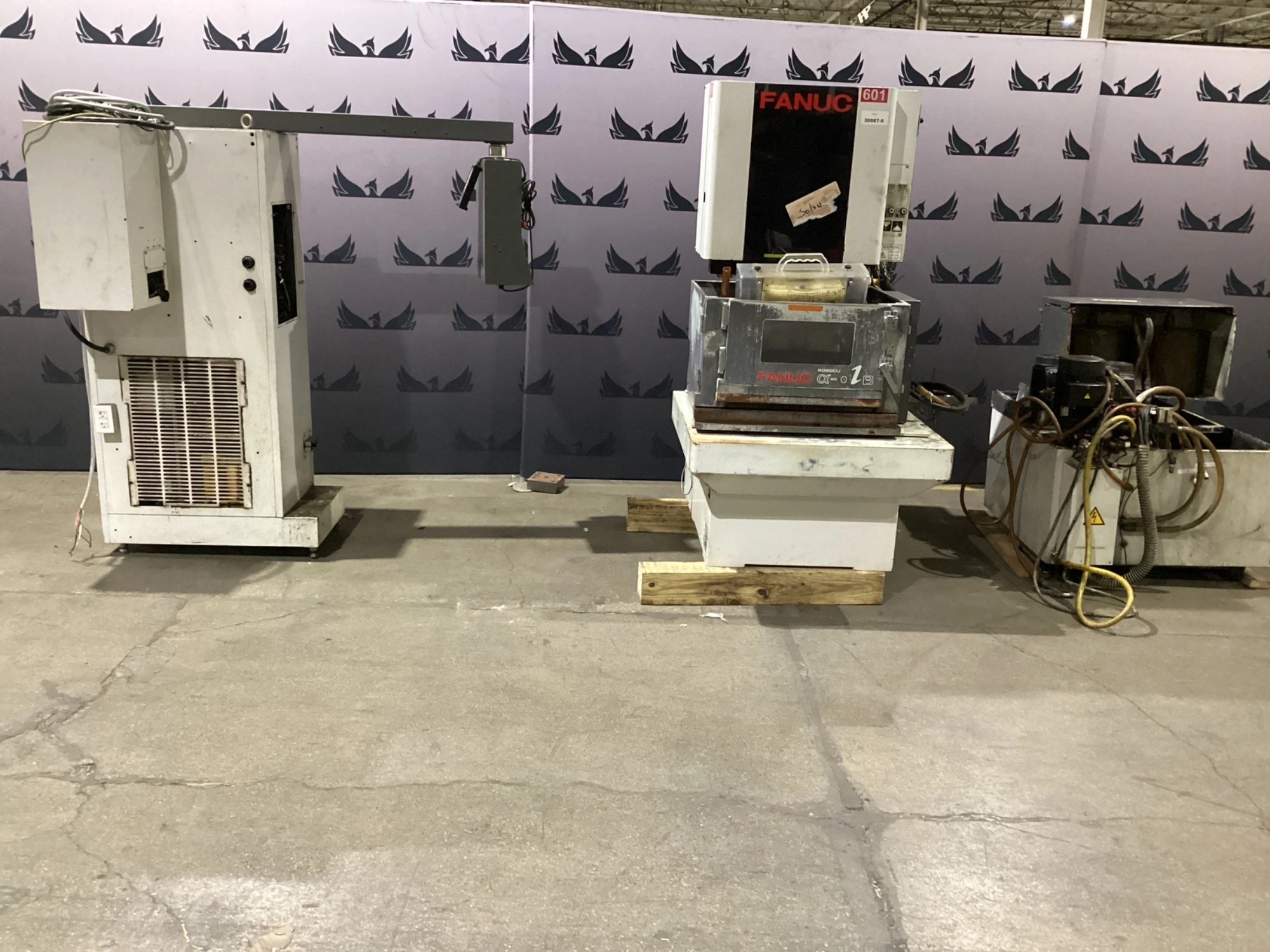

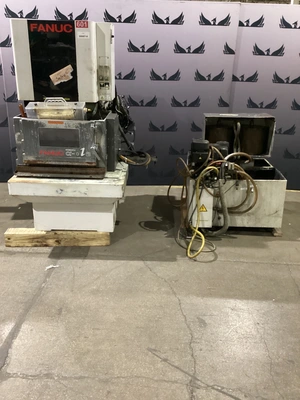

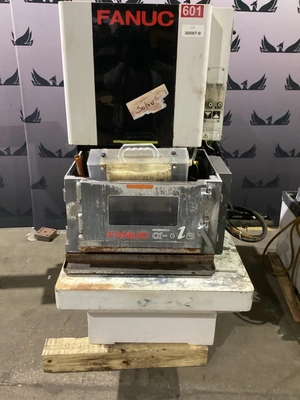

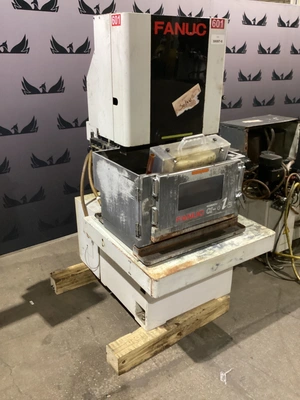

This listing is for a USED FANUC ROBOCUT Alpha-0iB, type A04B-0313-B011#U5. This CNC wire electrical discharge machine provides precision cutting of electrically conductive materials using a continuously fed wire electrode. The machine is equipped with a FANUC Series 180is-W control and includes the separate electrical cabinet and fluid processing equipment.
Specs
IDENTIFICATION
Manufacturer: FANUC Ltd.
Product Line: ROBOCUT
Model: Alpha-0iB
Type: A04B-0313-B011#U5
Serial Number: P02XB0365
Machine Type: CNC Wire EDM
Condition: USED
YOM: 2002
Country of Manufacture: Japan
MACHINING PROCESS
Process: Wire Electrical Discharge Machining (Wire EDM)
Machining Method: CNC-Controlled Electrical Discharge
Electrode Type: Wire Electrode
Workpiece Material Requirement: Electrically Conductive Material
CNC CONTROL
Control Manufacturer: FANUC

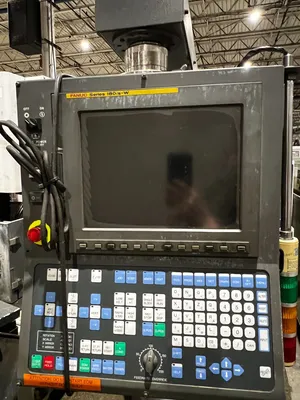

Control Series: Series 180is-W
Operator Interface: Integrated CRT/MDI
Manual Axis Controls: X / Y / U / V / Z
Operating Modes Visible: JOG / STEP / MEMORY / EDIT
Feedrate Override Range: 0-200%
AXIS & WORK CAPACITY
X-Axis Travel: Not specified
Y-Axis Travel: Not specified
Z-Axis Travel: Not specified
U-Axis Travel: Not specified
V-Axis Travel: Not specified
Maximum Workpiece Dimensions: Not specified
Maximum Workpiece Weight: Not specified
Maximum Workpiece Thickness: Not specified
WIRE SYSTEM
Wire Diameter Range: Not specified
Wire Feed System: Present
Automatic Wire Threading: Not specified
Wire Tension Range: Not specified
Wire Spool Capacity: Not specified
MACHINE ELECTRICAL

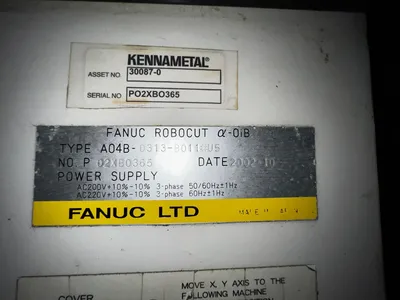

Input Voltage: 200 VAC +10% / -10%
Input Phase: 3-Phase
Input Frequency @ 200 VAC: 50/60 Hz ±1 Hz
Alternate Input Voltage: 220 VAC +10% / -10%
Input Frequency @ 220 VAC: 60 Hz ±1 Hz
Rated Input Current: Not specified
Rated Power Consumption: Not specified

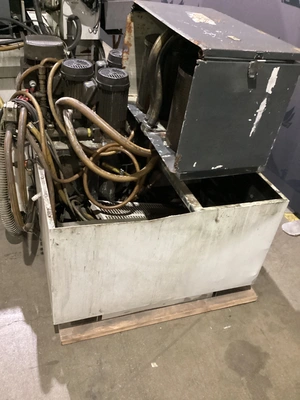

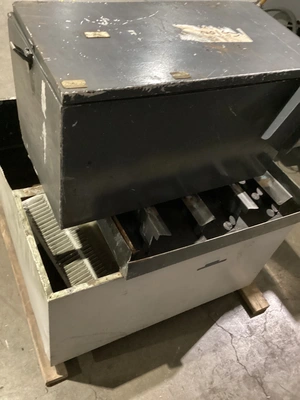

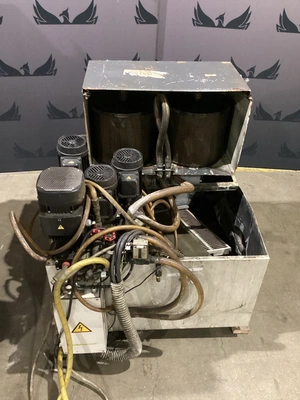

DIELECTRIC / FLUID SYSTEM
Fluid Processing Equipment: Included
Fluid Reservoir: Included

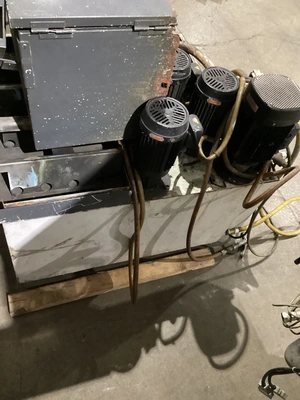

Circulation Pumps: Present
Filter Housings: Present
Fluid Hoses: Present
Fluid Capacity: Not specified
Filtration Rating: Not specified

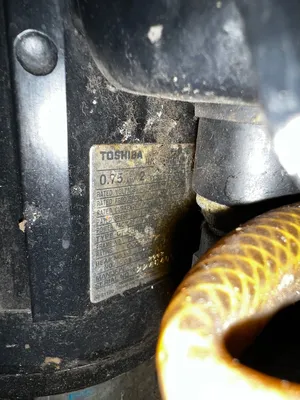

AUXILIARY MOTOR

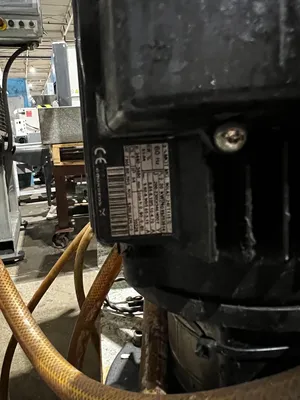

Motor Manufacturer: Toshiba
Motor Output: 0.75 kW
Pole Count: 2 Pole
Rated Voltage: 200 V

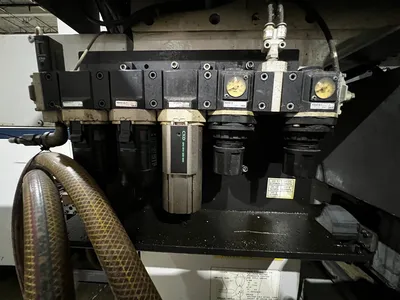

PNEUMATIC SYSTEM
Pneumatic Preparation Equipment: Present
Component Manufacturer: CKD
Filter / Regulator Components: Present
Pressure Gauges: Present
Pressure Adjustment: Manual
Detailed Pressure Ratings: Not specified

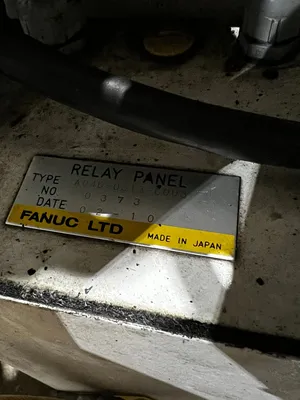

RELAY PANEL
Manufacturer: FANUC Ltd.
Type: A04D-0313-C003
Panel Number: 0373
Country of Manufacture: Japan
CONTROL / ELECTRICAL HARDWARE
Control Manufacturer: FANUC

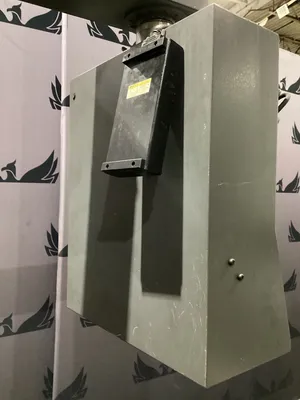

Internal Electrical Cabinet: Present
FANUC Circuit Board: Present
Circuit Board Part Number: A16B-1600-0100
Circuit Board Revision: 02A
Relay / Interface Circuitry: Present
Terminal Connections: Present
Internal Wiring: Present
INSTALLATION
Machine Configuration: Floor Standing
Electrical Cabinet: Separate
Fluid Processing Equipment: Separate
Electrical Cabinet Included: Yes
Fluid Processing Equipment Included: Yes
ADDITIONAL INFORMATION
Emergency Stop: Present
Status Tower: Present
