USED 2006 C.R. ONSRUD 194HD16

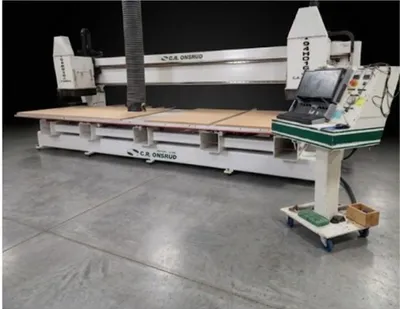

2006 C.R. Onsrud 194HD16 Heavy-Duty CNC Router, Twin Spindles, (2) 96"x60" Tables, 24 ATC, (6) Vac Pumps, Tooling, Transformer, FOB Upland, CA

Terms & Payment

Please wait for your shipping quote and invoice before sending payment. Buyer is responsible for all rigging and shipping costs. We have riggers and shipping companies we can recommend. Payment is due within 2-3 days of order date via wire transfer, cashier's check or company check (in some cases) or ask about our financing or leasing options. We have been on eBay since 2004 with over 100% 2,300 ratings.

Title: 2006 C.R. Onsrud 194HD16 Twin Spindle CNC Router Twin Table 24 ATC Vac Pumps Upland

Brand: C.R. Onsrud

Model: 194HD16

Year: 2006

Specifications

• Manufacturer: C.R. Onsrud (Troutman, North Carolina, USA)


• Model: 194HD16 Heavy-Duty Series


• Year of Manufacture: Circa 2006


• Architecture: Fixed-bridge, twin moving-table vertical machining center


• Operating Modes: Independent twin-table pendulum processing (continuous cycle) or electronically slaved tandem operation as a single large table


• Work Table Size: (2) 96" x 60" phenolic universal high-flow vacuum grid tables


• Combined Working Area: ~192"–194" x 60" in tandem mode


• X-Axis Travel (Cross-Bridge): ~194" total bridge span coverage


• Y-Axis Travel (Table Motion): ~61" (short dimension shuttle under bridge)


• Z-Axis Travel (Vertical Stroke): 11" to 14" (standard stroke)


• Z-Axis Under-Bridge Clearance: ~14" clearance from table deck


• Spindle Count: (2) independently controlled electro-spindles mounted on the bridge slide


• Spindle Power: 15 HP to 18 HP per head (continuous-duty, 4-pole)


• Spindle Speed Range: Variable up to 24,000 RPM


• Spindle Taper: HSK-63F quick-change


• Tool Changer: 24-position automatic dynamic rotary tool changer (aggregate compatible)


• Base Construction: Stress-relieved, normalized heavy structural steel base with cast-iron bridge and vertical upright columns


• Guideways & Drives: Precision preloaded linear profile guide rails with ground ball screw / helical rack drive mechanics


• Feed / Cutting Speeds: Up to 3,400–3,600 IPM


• Rapid Traverse Rate: Up to 4,000–4,800 IPM


• CNC Control: OSAI 10/510 PC-based CNC control housed in a standalone rolling operator console


• JPG


• Vacuum System: (6) high-capacity rotary vacuum pumps mounted on modular steel staging racks


• Power Supply: Multi-tap industrial isolation / step-up/down power transformer included


• Tooling Package: Included set of HSK-63F tool holders and collets


• Floor Footprint: Approximately 20 ft (W) x 12 ft (D) x 8.5–9 ft (H)


• Estimated Shipping Weight: ~18,000 – 22,000 lbs (bare machine; vacuum pumps and racks ship on dedicated skids)


• Pneumatic Requirements: 90–100 PSI clean, dry compressed air (approx. 8–10 CFM)


• Electrical Service: 460/480V 3-Phase (stepped via the included transformer)

Description

High-production heavy-duty CNC routing powerhouse designed for continuous industrial output. This 2006 C.R. Onsrud 194HD16 vertical machining center features a rigid fixed-bridge architecture paired with twin moving tables and twin independent spindles, allowing for seamless pendulum cycle operation or slaved tandem processing across large sheets.

Key Features & Benefits
Equipped with dual 15–18 HP HSK-63F spindles capable of speeds up to 24,000 RPM, a 24-position rotary automatic tool changer, and an extensive hold-down system powered by six vacuum pumps on dedicated staging racks. Includes the OSAI 10/510 PC-based control, tooling package, and isolation transformer for rapid industrial deployment.

Dimensions & Weight

• Physical Footprint: Approximately 20 ft (W) x 12 ft (D) x 8.5–9 ft (H)


• Weight: Approximately ~18,000 – 22,000 lbs

Shipping & Location Details

Location: Upland, CA
This machine is offered FOB Upland, CA. Buyer is responsible for all applicable freight and rigging expenses.

Fair Sell Price Analysis

Market Context: Heavy-duty twin-table C.R. Onsrud machining centers maintain strong secondary market demand across nested-based manufacturing, aerospace composites, and architectural millwork sectors due to their cast-iron bridge rigidity, dual independent spindle capability, and extensive vacuum hold-down capacity.
