USED 2022 ALLIANCE MANUFACTURING AQUAMASTER CB-1200
Overview

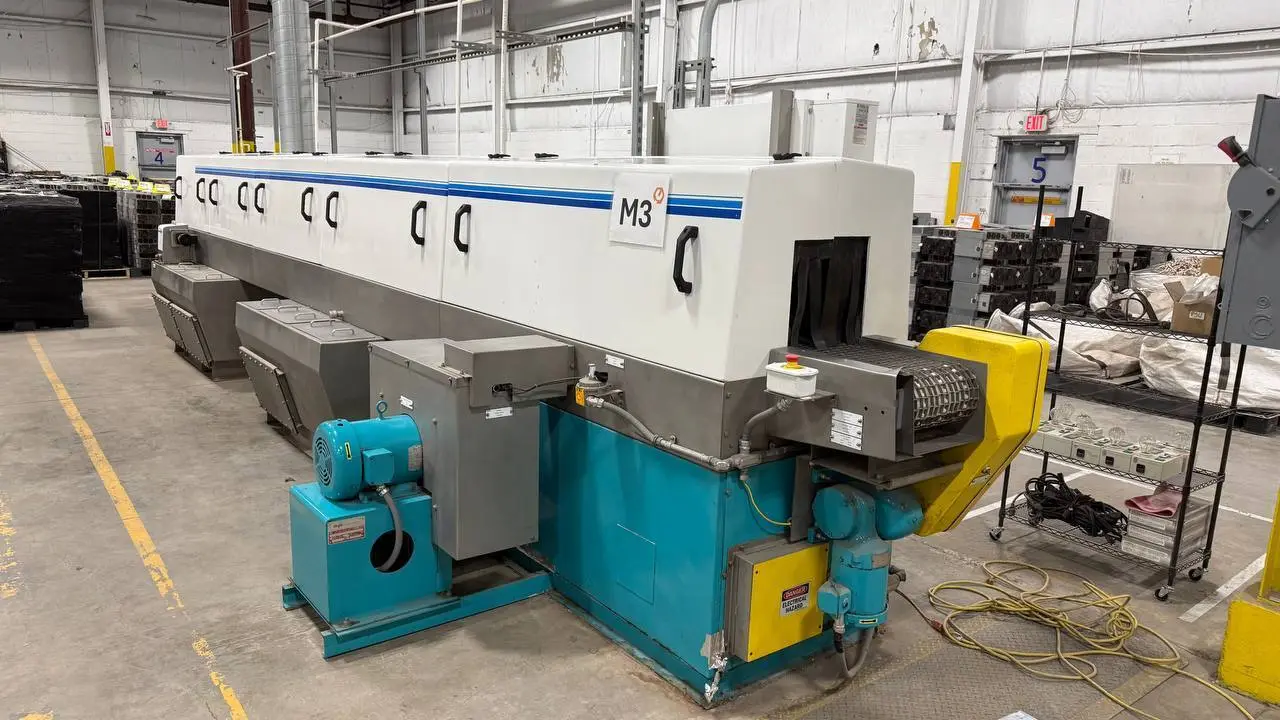

Alliance Manufacturing AquaMaster Model CB-1200 continuous belt aqueous parts washing system designed for continuous in-line cleaning, rinsing, rust-inhibitor application and heated blow-off drying of production components.
Parts are loaded onto a 12" wide stainless-steel flat-wire conveyor belt and conveyed through the machine's three liquid process stages followed by a heated blow-off drying section.
Machine provides a 12" wide product opening with 12" maximum product clearance and an adjustable conveyor speed of approximately 1–6 feet per minute.
Manufacturer: Alliance Manufacturing, Inc.
Model: AquaMaster CB-1200 W/R/R.I./HBLO
Type: Continuous Belt Aqueous Parts Washing System
Number of Process Stages: Three (3) – Wash / Rinse / Rust Inhibit
Drying: Heated Blow-Off
Belt Width: 12"
Maximum Part Height: 12"
Conveyor Speed: Adjustable 1–6 FPM
Electrical: 480 Volt / 3 Phase / 60 Hz
Controls: 24 VDC
Overall Length: Approximately 26'-9"
Specs
PROCESS SEQUENCE
Stage 1 – Wash
48" long heated recirculating wash section.
Stage 2 – Rinse
36" long recirculating rinse section.
Stage 3 – Rust Inhibit
18" long heated recirculating rust-inhibitor section.
Stage 4 Drying – Heated Blow-Off
72" long high-pressure heated blow-off section.
CONSTRUCTION
Machine is constructed for industrial aqueous cleaning service with stainless-steel construction utilized extensively throughout the process system.
Tank / Conveyor: Stainless Steel
Interior Process Piping: Stainless Steel
Exterior Piping / Valves: Stainless Steel / Stainless Steel
Pump-to-Tank Connections: Stainless Steel / Silicon Carbide
Spray Tubes: Stainless Steel
Spray Nozzles: Polypropylene
Conveyor Belt: 1" x 1" x 12" Wide Stainless-Steel Flat Wire
Conveyor Sprockets: UHMW
Conveyor Carry Supports: 1.9" Diameter Stainless-Steel Rollers
Product / Conveyor Guides: Stainless Steel / UHMW
Clean-Out Door Seals: EPDM
Canopy: Fiberglass / General Purpose Resin – Vinyl Ester Resin
Process Curtains: 1/8" Thick Neoprene
Heated Blower: Steel Housing with Steel Wheel
Approximate Overall Dimensions
Overall Length: 26'-9"
Overall Width: 8'-4"
Typical Belt Height: 42"
Product Opening: 12"
Maximum Product Clearance: 12"
The drawing also indicates the washer was designed in three shipping modules, with approximate individual shipping weights of 3,000 lbs., 3,000 lbs., and 4,000 lbs., respectively.
Equipped With
Wash Stage
260-Gallon Wash Tank
3 HP Wash Pump
70 GPM @ 30 PSI
54 kW Electric Wash Heat
Stainless-Steel Spray System
Wash Automatic Fill
Wash Level Control
Wash Chip Basket with Access Cover
8" x 15" Wash Micro-Filtration Chamber
100-Micron Filter Bag
Filter Contamination Sensor
Dual Filter Screens
4" Stainless-Steel Belt-Type Oil Skimmer
12" x 24" Clean-Out Door
Rear Access Cover
Flush-Out Provision
2" MNPT Wash Drain
2" MNPT Wash Overflow
Rinse Stage
150-Gallon Rinse Tank
2 HP Rinse Pump
50 GPM @ 20 PSI
Ambient / Unheated Rinse
Stainless-Steel Spray System
Rinse Automatic Fill
Rinse Level Control
Rinse Chip Basket with Access Cover
8" x 15" Rinse Micro-Filtration Chamber
50-Micron Filter Bag
Filter Contamination Sensor
12" x 24" Clean-Out Door
Rear Access Cover
2" MNPT Rinse Drain
2" MNPT Rinse Overflow
Rust-Inhibit Stage
37-Gallon Rust-Inhibit Tank
2 HP Rust-Inhibit Pump
30 GPM @ 20 PSI
24 kW Electric Heat
Stainless-Steel Spray System
Rust-Inhibit Automatic Fill
Rust-Inhibit Level Control
8" x 15" Rust-Inhibit Micro-Filtration Chamber
50-Micron Filter Bag
Filter Contamination Sensor
2" MNPT Drain
2" MNPT Overflow
Heated Blow-Off
72" Long Heated Blow-Off Section
7.5 HP High-Pressure Blower
1,200 CFM @ 17" Static Pressure
24 kW Electric Heat
Heated air-knife/blow-off drying system
Conveyor System
12" Wide Stainless-Steel Flat-Wire Conveyor Belt
12" Maximum Product Height
1/2 HP Conveyor Drive
Adjustable 1–6 FPM Belt Speed
Conveyor Drive with Jam Limit
Stainless-Steel Conveyor Support Rollers
Stainless-Steel / UHMW Product Guides
Product Load Sensor
Emergency Stop Stations
Exhaust System
1 HP Exhaust Fan
520 CFM @ 2" Static Pressure
Controls
Allen-Bradley MicroLogix 1400 PLC
Allen-Bradley PanelView 800 Color HMI
24 VDC Control Voltage
Emergency Stop Circuit
Product Load Sensor
Tank Level Controls
Filtration Contamination Monitoring
Electrical
480 Volt / 3 Phase / 60 Hz
153.1 Full Load Amps
200 Amp Disconnect
Fused at 175 Amps
24 VDC Controls
